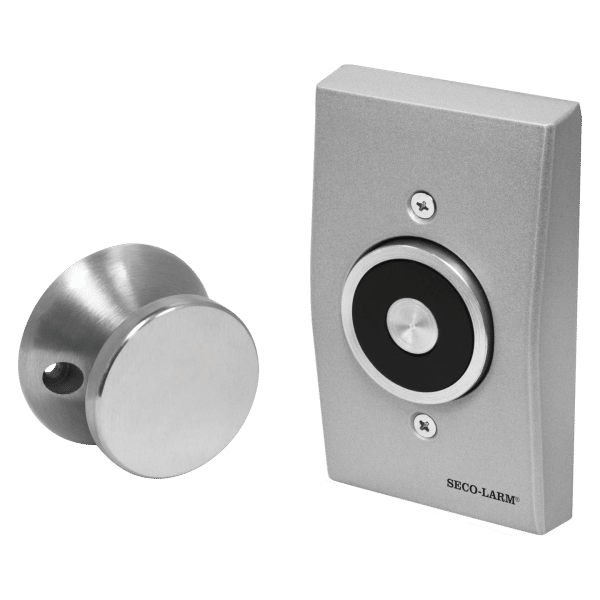

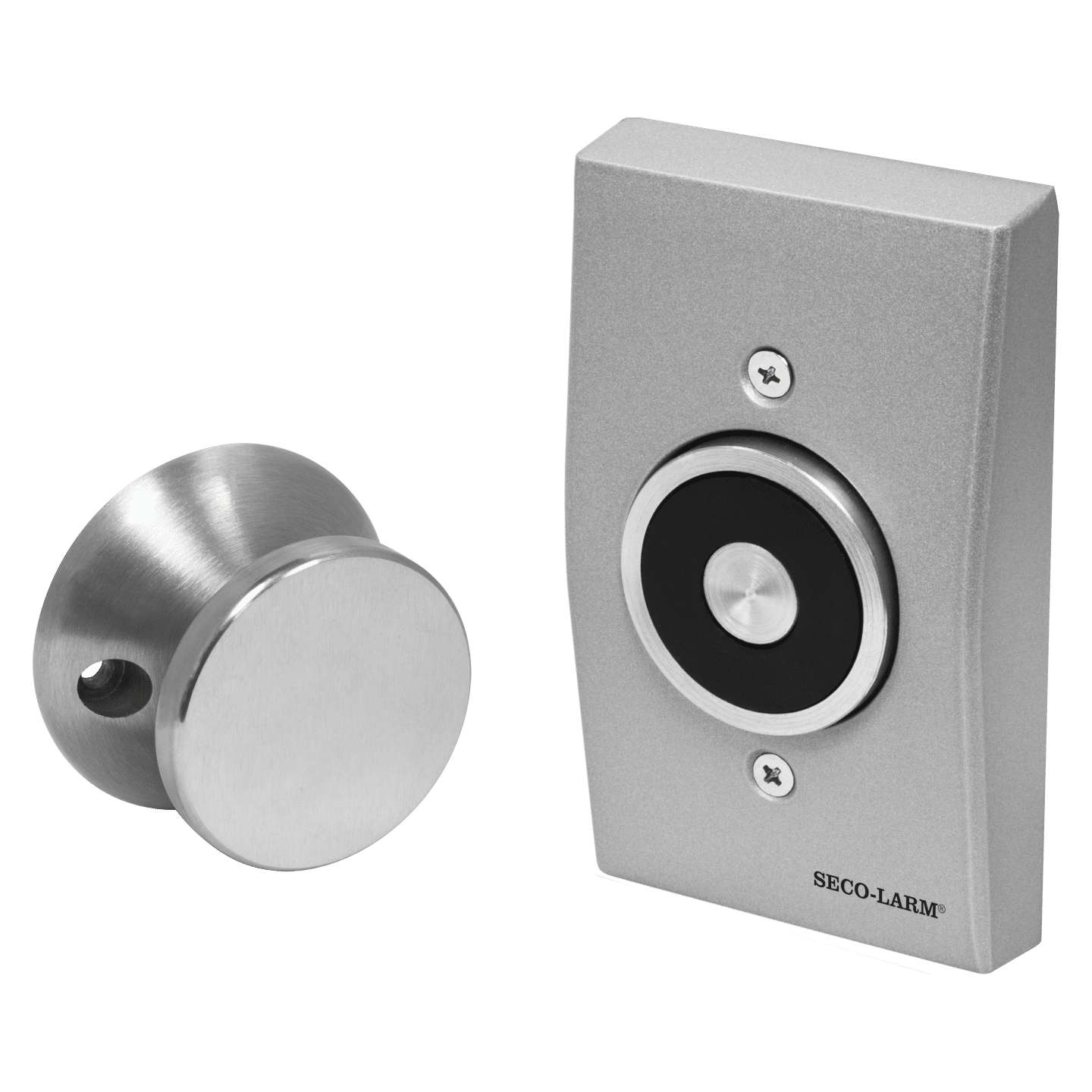

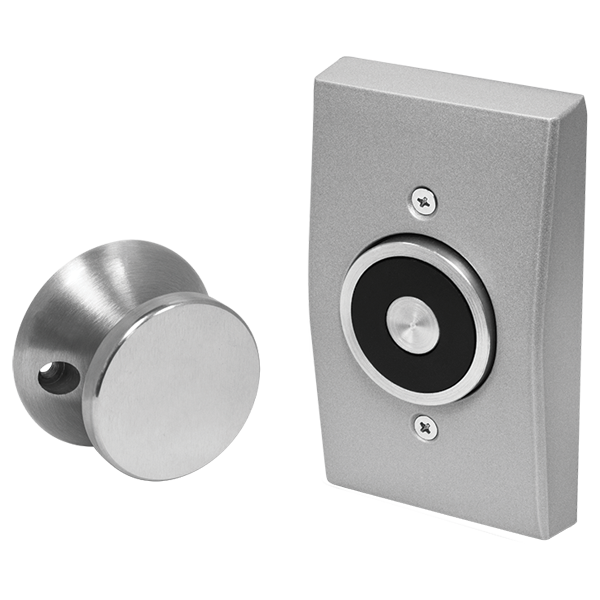

- For use with door closers to control the release and closing of residential, commercial, and public area doors
- Adjustable armature plate reduces installation time and adjusts to door alignment changes
- Low profile design
- Holding force – 33-lb (15kg)
- 3 voltages: 12/24 VAC/VDC, and 120VAC
- Cast aluminum faceplate
- No residual magnetism for easy release
- Built-in voltage spike suppressor
- Use with SECO-LARM door closers
- Optional extension bars available: 3/4″, 1″, 4″, 7″ (19mm, 25mm, 102mm, 178mm)
- Use with SECO-LARM door closers SD-C121-S, SD-C131-SQ, SD-C101-SGQ, or SD-C101-SBAQ
| Operating voltage | 12 VAC/VDC, 24 VAC/VDC, 120VAC (selectable, factory preset at 120V) |
| Current draw | 12V: 52mA@12VAC, 60mA@12VDC 24V: 27mA@24VAC, 31mA@24VDC 120VAC: 24mA |
| Holding force | 33-lb (15kg) |
| Manual Release | No |
| Mounting type | Flush-mount |
| Dimensions | Magnet: 2-3/4″x4-9/16″x2-1/16″(70×116.5×52 mm) Armature: ø2-9/16″x 1-9/16″ (ø65×40 mm) |
| Weight | Magnet: 1-lb 1.6-oz (498g) Armature: 8.4-oz (237g) |
