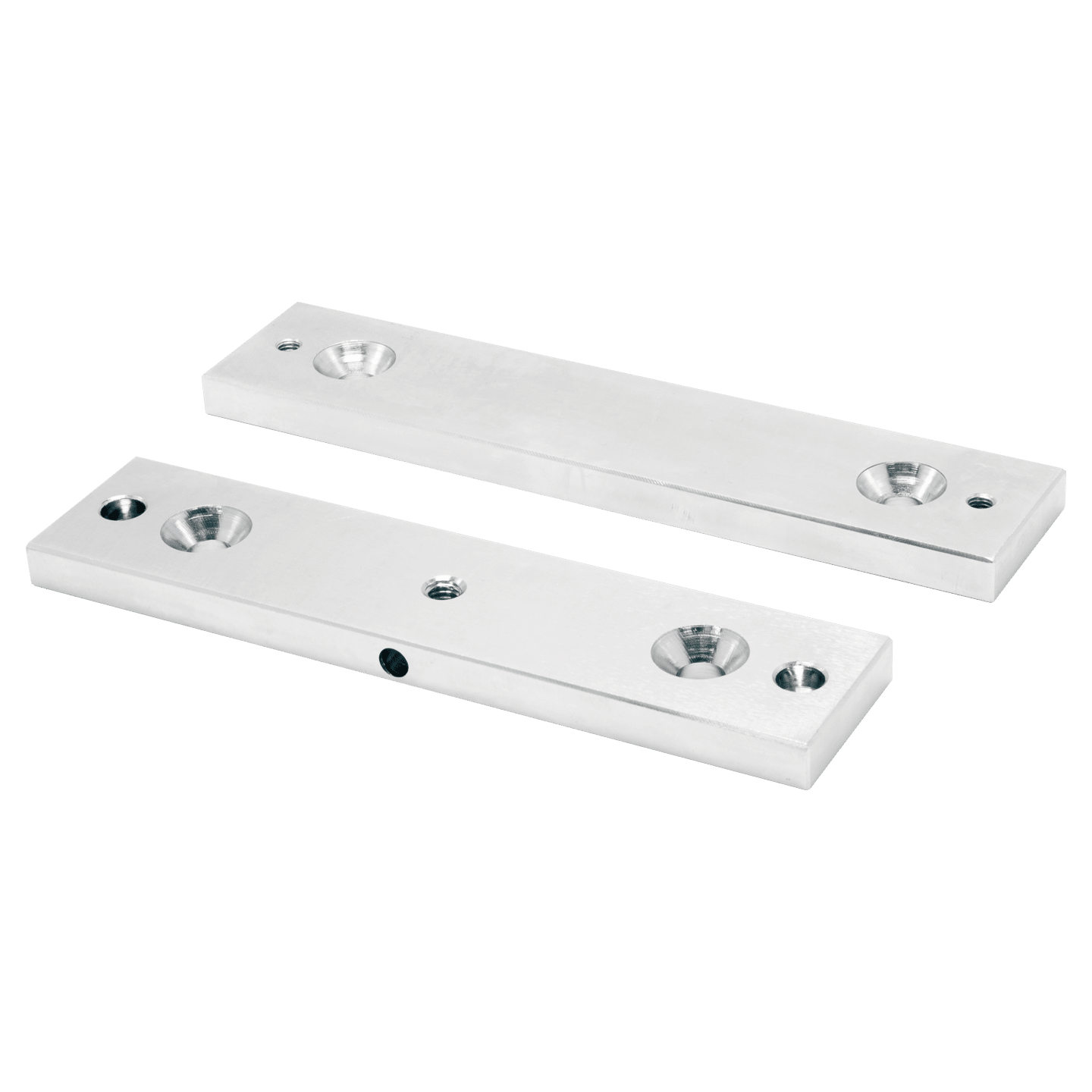

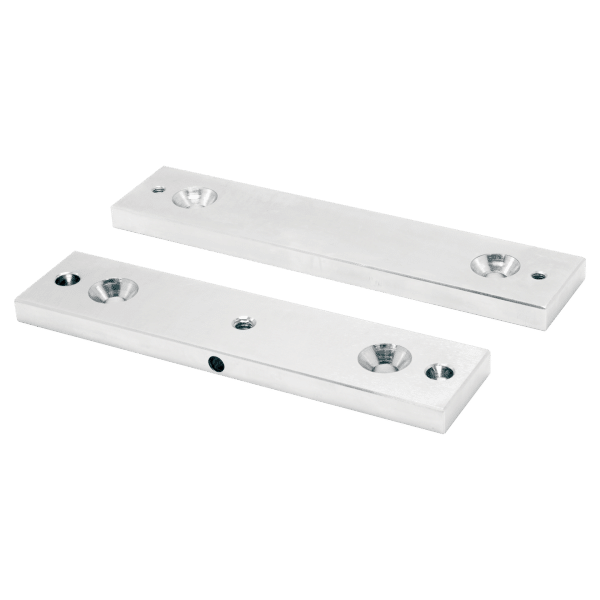

600-lb Electromagnetic Gate Lock Weldable Bracket
600-lb Electromagnetic Gate Lock Weldable Bracket - Image 2
600-lb Electromagnetic Gate Lock Weldable Bracket - Image 3

E-942F-600G/WQ

600-lb Electromagnetic Gate Lock Weldable Bracket

SECO-LARM Electromagnetic Gate Lock Weldable Brackets are suitable for vertical or horizontal mounting and can be bolted on as well as welded. The set includes brackets for both the electromagnetic lock and the armature plate and are zinc-plated for corrosion resistance. Available for select 600-lb electromagnetic gate locks.

  • product_icon
  • For most types of outdoor sliding and swinging electric gates
  • Includes brackets for armature and magnet
  • Can be welded or bolted directly to gate
  • Brackets are zinc-plated for corrosion resistance
  • Mount vertically or horizontally

Mounting Face
Dimensions Maglock: 8″x7/16″x1-11/16″ (203x11x43 mm)

Armature: 7-7/16″x7/16″x1-11/16″ (188x11x43 mm)
Weight 3-lb 2-oz (1.44kg)
Product Information Sheet (PI) (pdf, 213KB)
Download
Manual (pdf, 147KB)
Download
