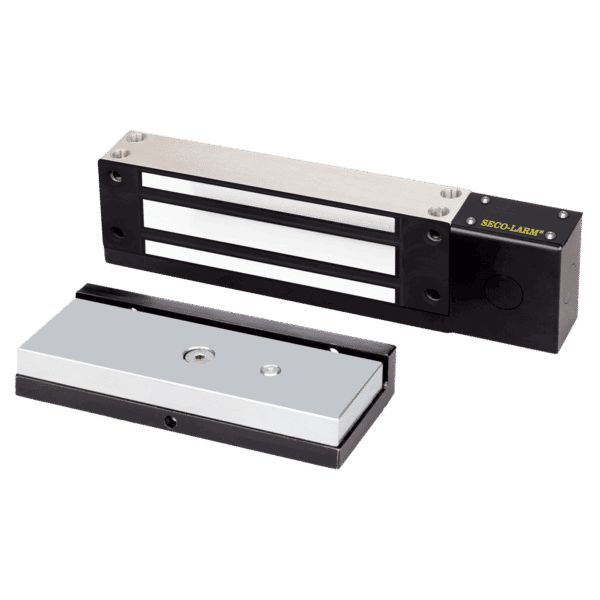

E-946FC-1K2SQ

1,200-lb Electromagnetic Gate Lock, Side (Surface) Mount, Weldable

The SECO-LARM Electromagnetic Gate Lock with Weldable Bracket combines a strong and durable gate lock with a weldable bracket for ease of installation and greater security. With variants of both 1,200-lb (544kg) and 600-lb (272kg) holding force, it is suitable for almost any gate installation and can be installed horizontally and vertically.

  • product_icon
  • product_icon
  • 12/24 VDC
  • For use with nearly all types of outdoor sliding and swinging electric gates
  • Low current draw of 500mA@12VDC, 250mA@24VDC
  • Can be welded or bolted directly to gate and mounted horizontally or vertically
  • Includes a magnetic lock with brackets for armature and magnet, mounting hardware included
  • Zinc-plated brackets for corrosion resistance
  • Maintenance-free, factory-sealed design, IP67 Waterproof
  • Water- and vandal-resistant stainless-steel with black finish to match most gates
  • Fail-safe operation (releases if power is removed)
  • Four knockouts on junction box
  • Lifetime limited warranty*

*Warranty applies in the USA and Canada only. Contact SECO-­LARM for details.

Operating Voltage 12/24VDC
Holding Force 1,200-lb (544kg)
Current Draw 500mA@12VDC, 250mA@24VDC
IP Rating IP67 Waterproof
Operating Temperature 14º~131º F (-10º~55º C)
Certification cUL, UL, CE, RoHS (magnetic lock only)
Weight Maglock & Armature Weight (Approx.): 11-lb (5kg)
Brackets: 5-lb (2.3kg)
Total: 16.1-lb (7.3kg)

Product Information Sheet (PI)

Download File

MANUAL

Download File

FAQs

b

Delay in gate releasing

The electromagnet includes a built-in metal oxide varistor to prevent interference, so do not install a secondary diode.

b

Gate does not lock

  1. Ensure the wires are secure.
  2. Ensure that the power supply is connected and operating.
b

Gate locks but can be easily forced open

  1. Ensure the electromagnet and armature plate are properly aligned.
  2. Ensure the contact surfaces of the electromagnet and armature plate are clean and free from rust.
