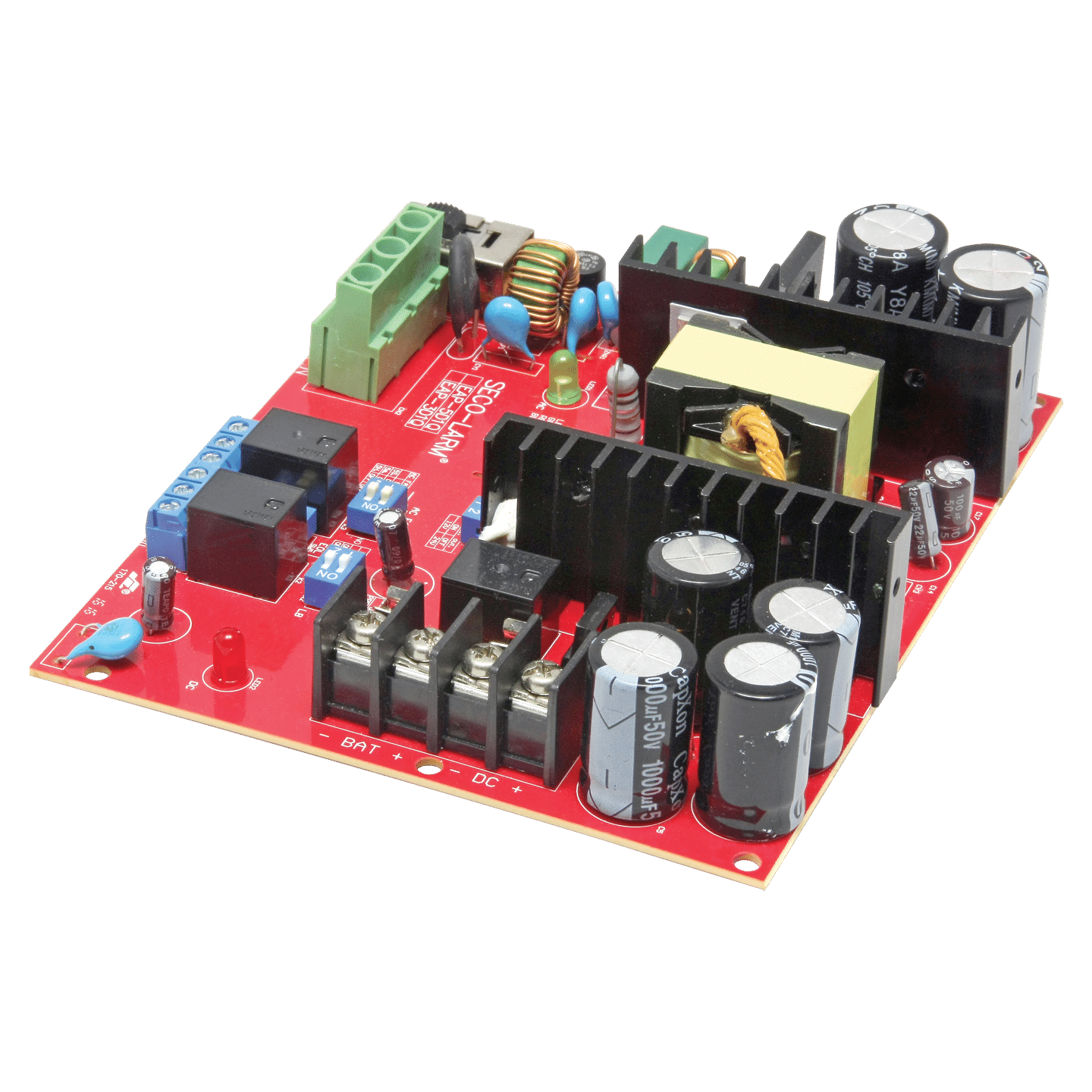

EAP-5D1MQ

Access Control Power Supply Module

PC Board only. Compatible with EAP-5D1Q.

  • product_icon
  • product_icon
  • AC power failure supervision relay
  • Battery failure / low battery supervision relay
  • DC Power failure supervision relay (EAP-5D5Q only)
  • Auxiliary output relay
  • Relays rated 3A@24VDC, 3A@120VAC
  • Adjustable voltage range to compensate for voltage drop
  • Built-in backup battery charger (battery not included)
  • Selectable 2.2k 9 End-of-Line (EOL) resistor for AC failure and battery failure supervision relays via DIP switch
  • Selectable delay timer (5 seconds, 5 minutes, 5 hours) for AC failure supervision relay via DIP switch
  • LED Status indicator for AC input, DC output and channel outputs

Power

  • Operating Input voltage: 110~240 VAC
  • Field-selectable 12 or 24 VDC output
  • Total continuous output current: 5A@12VDC, 2.5A@24VDC
  • AC Input fuse rated at 3.15A
Input Voltage 110~240VAC
Output Voltage 12 or 24VDC selectable via DIP switch
Adjustable Output Voltage Range 11~15 @ 12VDC setting, via VR switch, 23~26 @ 24VDC setting, via VR switch
Number of Outputs 1
Total Supply Current 5A@12VDC / 2.5A@24VDC
Input Fuse Rating 3.15A ( glass fuse, AC)
LED Status Indicator AC input ( Green ), DC Output ( Red )
End-of-Line Resistor (EOL) Selectable ON ( 2.2KΩ) or OFF via DIP switch
AC-Fail Relay Delay Timer Selectable @ 5sec, 5min or 5hr via DIP switch
Supervision Relays Contact Rating: 3A@24VDC Dry Relay Output

Product Information Sheet (PI)

Download File

MANUAL

Download File

DIAGRAM

Download File
