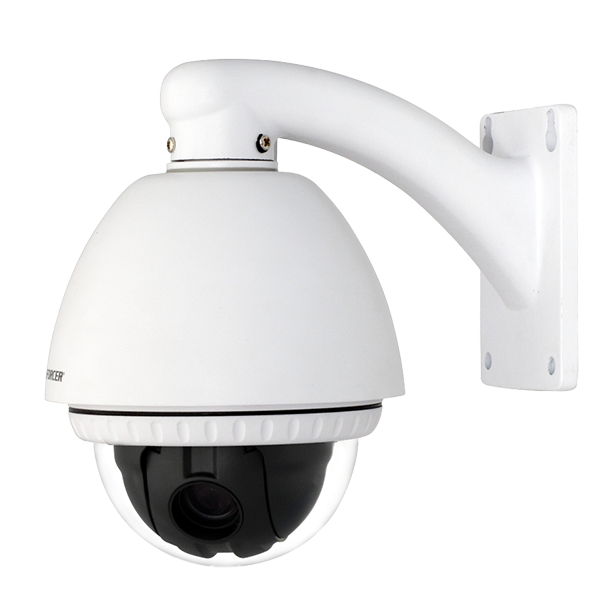

Mini PTZ Camera (Discontinued)

EV-7105-NPEQ

Mini PTZ Camera (Discontinued)



  • 10x Optical zoom and 10x digital zoom.
  • Up to 100x zoom.
  • Endless 360°/sec pan/tilt motion.
  • 24VAC Operation.
  • True Day/Night with ICR.
  • Outdoor or indoor use.
  • Built-in heater and fan.
  • Maximum of 127 preset target views, each with its own characteristics such as white balance and auto exposure.
  • Up to 95° tilt, up to 180° with auto-flip.
  • Compatible with ENFORCER DR-1 Series DVRs.

Model Number: EV-7105-NPEQ

  • 10x Optical zoom and 10x digital zoom.
  • Up to 100x zoom.
  • Endless 360°/sec pan/tilt motion.
  • 24VAC Operation.
  • True Day/Night with ICR.
  • Outdoor or indoor use.
  • Built-in heater and fan.
  • Maximum of 127 preset target views, each with its own characteristics such as white balance and auto exposure.
  • Up to 95° tilt, up to 180° with auto-flip.
  • Compatible with ENFORCER DR-1 Series DVRs.
Housing ColorWhite
TypeMini PTZ Camera
Video Output FormatNTSC or PAL
CCD1/4” Interline Transfer
Pickup Elements768×494 pixels
TV LinesColor: 520 TV Lines / B/W: 570 TV Lines
On Screen Display (OSD)Menu / PTZ information, etc.
Minimum IlluminationColor: 0.7 Lux / B/W: 0.02 Lux
LensF1.8, f=3.8~38mm
IR Cut FilterICR – removable IR cut filter
S/N Ratio50dB (AGC OFF)
Zoomx10 Optical / x10 Digital
Operating Voltage24VAC
Current Draw20W (with heater and fan ON)
Gain Controlautomatic gain control Normal / High / Off
Privacy4 Zones
ProtocolsPelco-D, Pelco-P selectable
Operating Temperature-4~122° F (-20~50° C)
Dimensions4-13/16” x7”x4-13/16” (122x180x122 mm)
Weight2-lb 10-oz (1.2kg)
