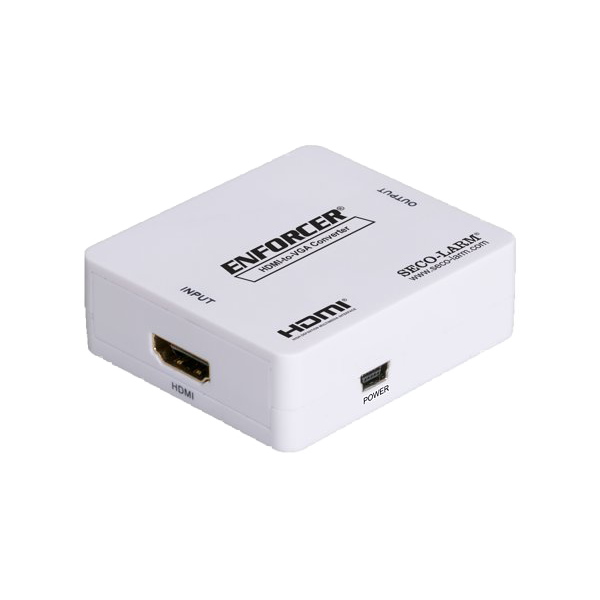

MVA-HV01Q

HDMI-to-VGA & Stereo Converter (Discontinued)

The MVA-HV01Q HDMI®-to-VGA Converter allows the user to view video in formats as large as 1920×1080 from HDMI® devices on VGA displays. The MVA-HV01Q also has a 3.5mm stereo output allowing the conversion of audio as well.

  • product_icon
  • product_icon
  • product_icon
  • product_icon
  • Converts HDMI® to VGA+Audio
  • Supports input resolutions up to 1920×1080
  • Supports up to 1920×1080 on VGA output
  • Stereo audio output
  • Plug and play operation
Supported Resolutions 1152×864, 1280×800, 1360×768, 1440×1050, 1440×900, 1680×1050, 1600×1200, 1920×1080
Video Input Signal 0.5~1.0Vp-p
DDC Input Signal 5.0Vp-p
Vertical Frequency 50/60Hz
Video Amplifier Bandwidth 1.65Gpbs/165MHz
Power Supply 5VDC (USB)
Operating Temperature 32°~158° F (0°~70° C)
Operating Humidity 5%~95% RH (no condensation)
Dimensions 2-3/8” x 2-1/8” x 13/16” (60 x 54 x 20 mm)
Weight 1.5oz (43g)

Product Information Sheet (PI)

MANUAL

HDMI device does not function correctly
  • Make sure the converter is powered.
  • Make sure the input and output devices are powered
  • Test the cables separately to make sure they are functioning.
  • Make sure that you are trying to convert HMDI to VGA. The MVA-HV01Q does not concert VGA to HDMI.
