Power Distribution Board – 9 Outputs, 5A Total, 1.1A each, PTC Fuses (Discontinued)

  • product_icon
  • product_icon

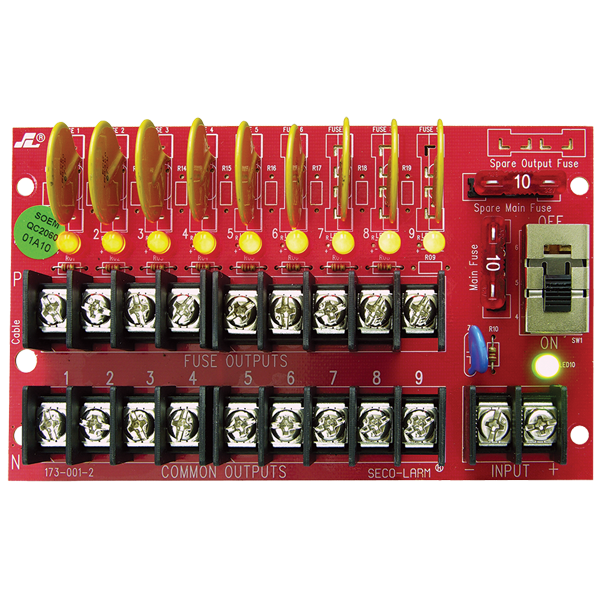

SECO-LARM‘s PD-9PSQ makes it simple to supply multiple CCTV cameras or other security devices with separate auto-reset, PTC-fused* fused power. The PD-9PSQ power distribution board provides 9 fused outputs and individual status LEDs, as well as a main power switch with surge protection and a master input fuse to provide the highest level  of protection.

  • Individually protected PTC*-type fused outputs
  • Individual status LED indicators
  • Main power switch with surge protection
  • Main input power fuse protects power source. Glass automotive style fuse included
*Positive Temperature Coefficient – auto-reset  current limiting
Input Voltage 28VAC/DC
Fuse type PTC
Number of Outputs 9
Main fuse rating 5A
Output fuse rating 1.1 A
Dimensions 5-3/16” x 3-1/8” x 1” (132 x 79 x 25.5 mm)
