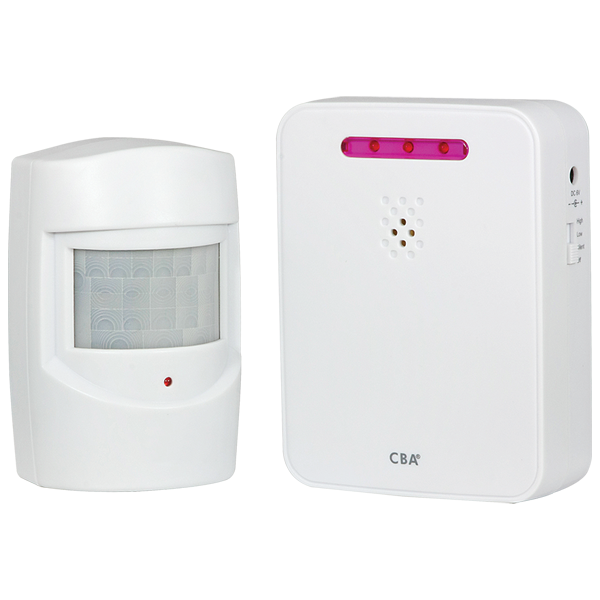

Wireless Motion Alert

RC-135Q

Wireless Motion Alert

  • product_icon
  • product_icon
  • product_icon
  • product_icon
  • Provides audio and/or visual alert when triggered
  • Sensor range up to 26ft (8m) at 40° angle at 3ft (1m) height
  • Up to 390ft. (120m) transmission range between sensor and receiver*
  • Plug and play operation, no hardwiring necessary
  • Battery operated (3 AAA for sensor and 2 C for receiver)
  • Batteries not included
  • Receiver can be powered by a 500mA@6VDC power adapter (not included)
  • Battery life for sensor is up to 6 months and for receiver is up to 3 months (based on 4 triggers/day on “High” mode)
  • Low battery indicators on sensor and receiver
  • Weather-resistant (IP44)
  • 4-position switch: Off, Silent, Low, High
  • Mounting hardware included

Product Sound

*Transmission range between sensor and receiver will vary depending on installation and environment
Frequency433.92MHz
Transmission RangeUp to 390ft (120m)
Power Supply – Receiver1.5VDC C-cell batteries x3 (not included) or 500mA@6VDC power adapter (not included, use 2.1mm)
Power Supply – Sensor1.5VDC AAA -cell batteries x3 (not included)
Low Battery IndicatorLEDs flash on sensor and receiver
MaterialABS plastic, white
Sound Level (Receiver)92dB or 80dB@1ft. (±5dB) or silent (switchable)
LED Indicators (Receiver)3 LEDs flash when sensor activated
PIR Sensor Range26ft (8m) at 40° angle at 3ft (1m) height
Enclosure (Sensor)Weather-resistant IP44
Operating Temperature-4°~113°F (-20°~45°C)
Dimensions – Receiver5-1/8” x 3-13/16” x 1-5/8” (130 x 96 x 42 mm)
Dimensions – Sensor4-3/16” x 3” x 1-7/8” (106 x 76 x 48 mm)
Weight – Receiver5-oz (125g)
Weight – Sensor3-oz (90g)
Product Information Sheet (PI) (pdf, 0KB)
Download
MANUAL (pdf, 0KB)
Download
