SA-026Q

Mini Programmable Timer

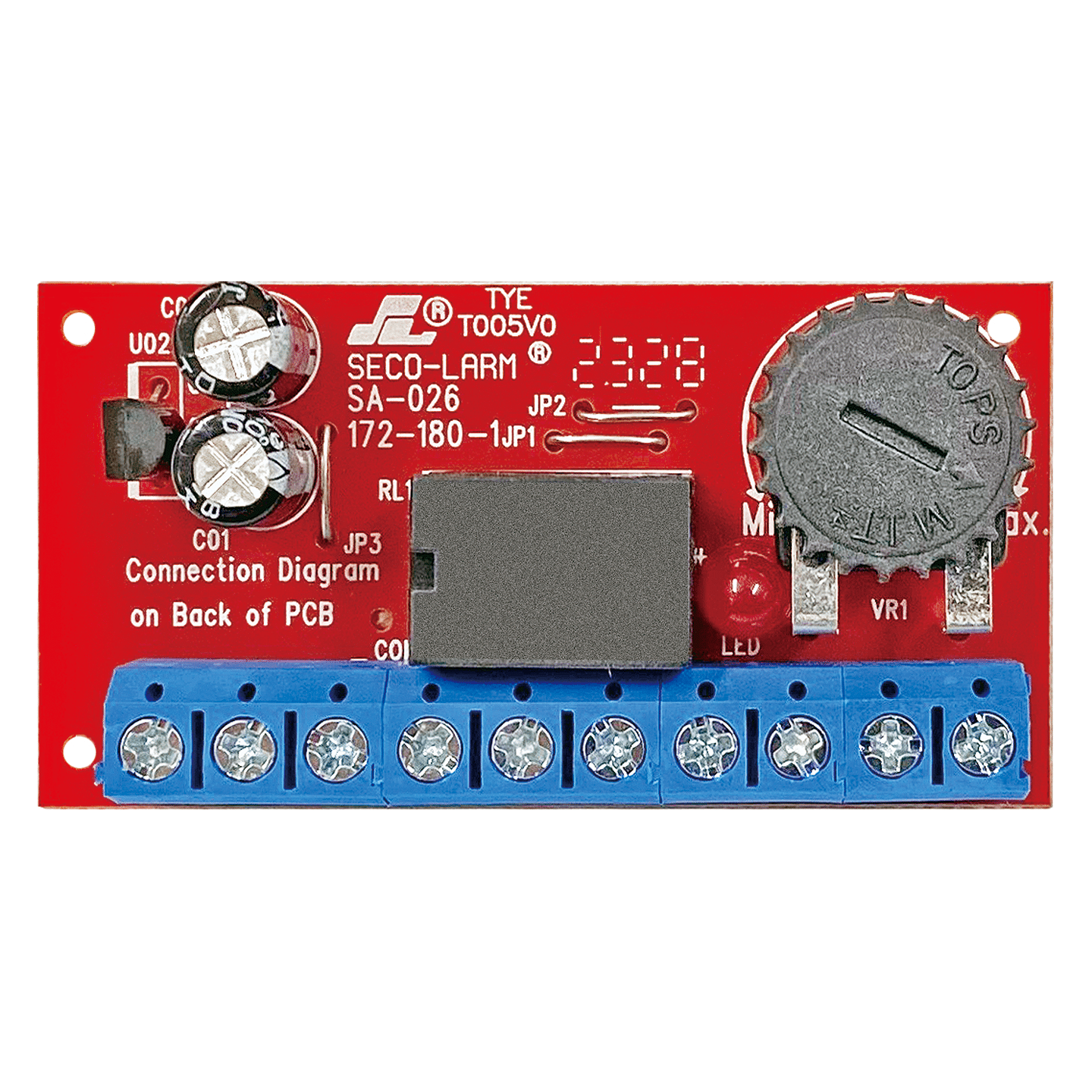

The ENFORCER SA-026Q is a low-voltage miniature timer module which operates on 12~24 VAC/VDC. It can be used to modify the activation time of a momentary contact switch for 1~180 seconds via a field-adjustable VR (variable resistor) rotary knob. It is ideal for electrical door strikes or electromagnetic locks that do not have a built-in time delay function.

  • product_icon
  • Adjustable timer from 1~180 seconds via an onboard potentiometer
  • Compact size: 1-3/16″x2-3/16″x5/8″ (30x55x16 mm)
  • Operating voltage: 12~24 VAC/VDC
  • Relay output: Form C (SPDT), via terminal block
  • Contact rating: 3A@24VDC
  • Built-in buzzer output: (100mA@24VDC)
  • Current draw at 12VDC (max.):
    • Standby 5mA
    • Active 50mA
  • Includes double-sided foam mounting tape
Operating Voltage 12~24 VAC/VDC
Current  draw Standby: 5mA@12VDC
Active: 50mA@12VDC
Relay output Form C (SPDT) terminal block
Buzzer output 100mA@24VDC
Contact rating 3A@24VDC
Operating humidity 0~90%, non-condensing
Operating temperature -40°~167° F (-40°~75° C)
Dimensions 1-3/16″ x 2-3/16″ x 5/8″ (30x55x16 mm)
Weight 1.4–oz (40g)

Product Information Sheet (PI)

MANUAL
