SD-7103GC-PTQ

Illuminated RTE Plate with Built-in Timer – Slimline

  • product_icon
  • product_icon
  • ETL, Conforms to UL Std. 294
  • Square illuminated push button with caption “PUSH TO EXIT”

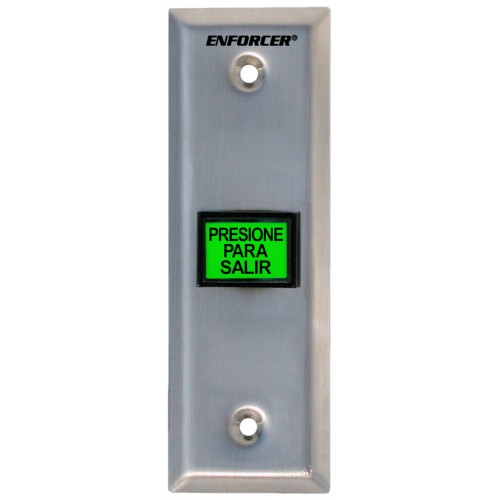

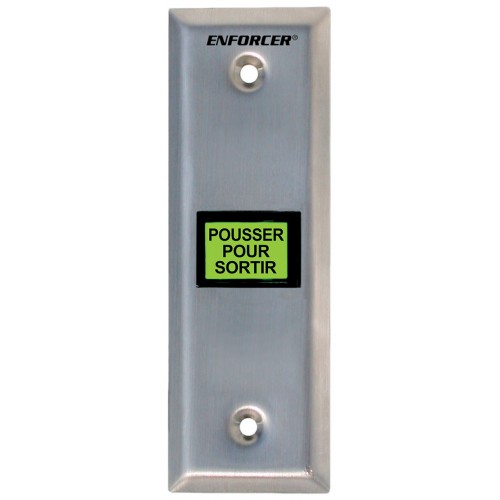

  • Message language can be easily changed in the field to Spanish or French
  • CE and UL approved switch is rubber-sealed to prevent liquid penetration
  • Includes stainless-steel slimline plate
  • Includes six colored 12-inch wire leads with easyto-attach spade lugs for fast installation
  • Long-life green LED 12/24 VAC/VDC (~35,000hr)
  • Weather resistant when properly installed
  • Timed output from 1~180 s
  • SPDT Switch rated 3A@24VDC
  • Buzzer output for audio status
  • UL 294 Access control levels
    • Destructive attack: Level I
    • Line security: Level I
    • Endurance: Level I
    • Standby power: Level I
Contact RatingSPDT Switch rated 3A@24VDC
Built-in TimerYes (1~180 sec.)
MaterialStainless-steel
Dimensions4-1/2”x1-1/2″x1-15/16″ (114x38x49mm)
Product Information Sheet (PI) (pdf, 211KB)
Manual (pdf, 322KB)
Diagram (jpg, 16KB)
