SD-7202GC-PEQ

Square Illuminated Pushbutton Request-to-Exit Plate

  • product_icon
  • product_icon
  • ETL, Conforms to UL Std. 294

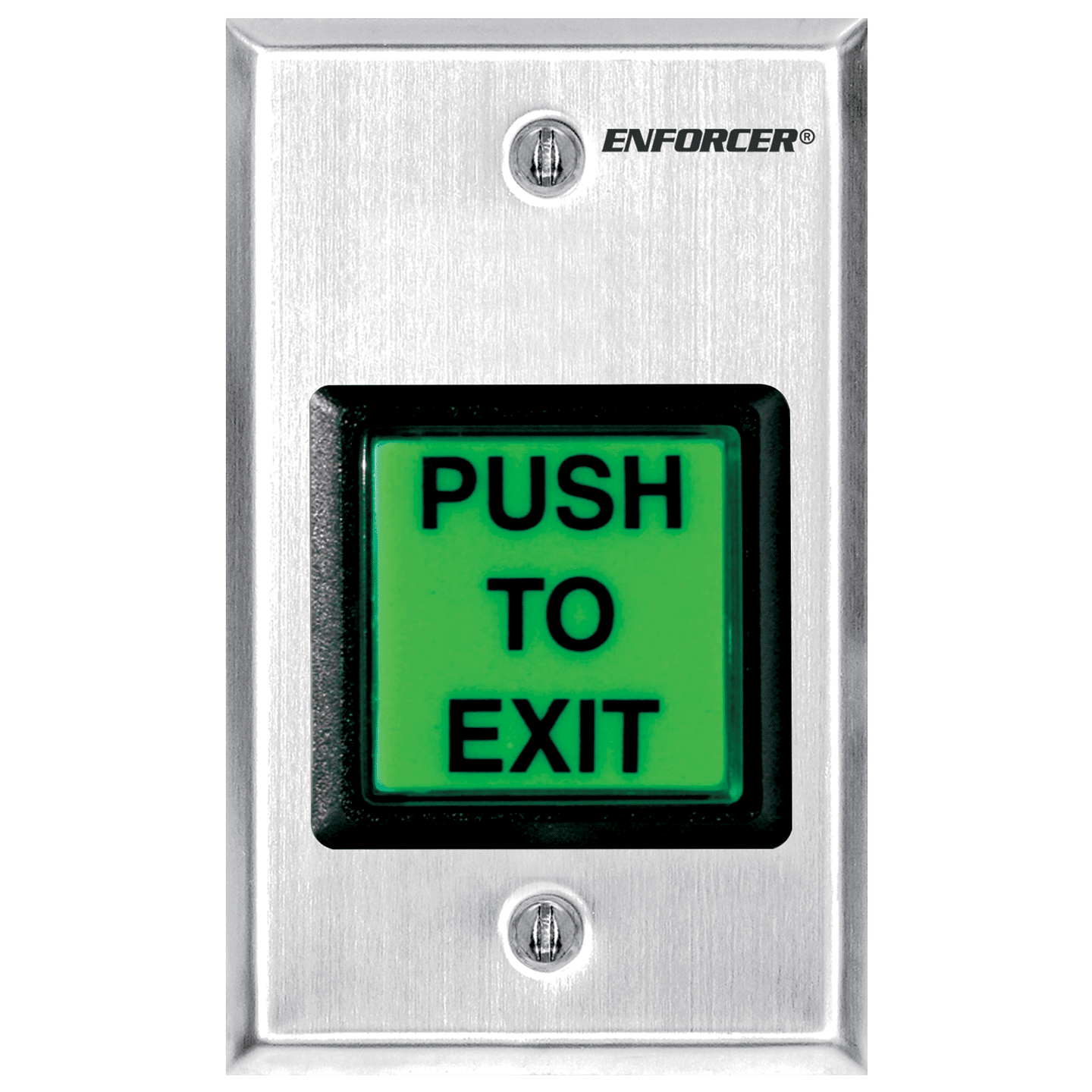

  • Large illuminated pushbutton with caption “PUSH TO EXIT
  • Message language can be easily switched between English, Spanish, and French with 3 included interchangeable plates
  • Pushbutton rated 50A@24VAC
  • Includes five colored 12-inch wire leads with easy-to-attach spade lugs for fast installation
  • LED Gives over 50,000 hours of illumination
  • 12~24 VDC: No resistors required
  • Includes stainless-steel single-gang plate
Operating voltage 12~24VDC
Current rating 50A@24VAC
Faceplate Brushed stainless
Destructive attack level Level I
Line security Level I
Endurance level Level I
Standby power Level I
Timer and buzzer output No
LED status indicator No
IP rating IP65
Operating temperature -40°~167° F (-40°~75° C)
Dimensions 4-1/2” x 2-3/4” x 2-3/4” (114x70x70 mm)
Weight 3.7-oz (105g)
Production Information Sheet (PI) (pdf, 348KB)
Manual (pdf, 332KB)
Diagram (png, 28KB)
