SD-72081-6MQ

Mortise Cylinder Key Switch – Momentary (Discontinued)

Discontinued Product

Single-Gang, Keyed mortise cylinder (2 keys included)

If a keypad or proximity card reader fails to activate an electronic lock, the user can switch between normally closed (N.C.) and normally open (N.O.) contacts using the Single-Gang Mortise Cylinder Key Switches (available with either momentary or maintained outputs), forcing the door to open. This acts as a backup for access control systems, so that the system does not rely on the integrity of a single device.

  • product_icon
  • Keyed mortise cylinder (2 keys included)
  • Mortise cylinder removable for ease of keying
  • Flush mount with vandal-resistant screws
  • Chrome-plated aluminum back plate fits to single-gang box
  • Stainless-steel front cover conceals mounting screws
  • DPDT Momentary switch, 25A@24VAC contact rating

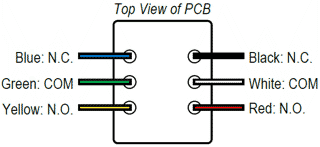

  • Color-coded wires
  • Maintained (SD-72031-6MQ) or momentary (SD-72081-6MQ) output
Switch Type DPDT Switch (momentary)
Contact Rating 25A@24VAC, NO/NC
Dimensions 2-3/4″x4-1/2″x1-7/16″ (69x114x37 mm)

Product Information Sheet (PI)

Manual
