RF Wireless Request-to-Exit Plate, Single-Gang, Green 2" Square Button
RF Wireless Request-to-Exit Plate, Single-Gang, Green 2" Square Button - Image 2

SD-8202GT-PEQ

RF Wireless Request-to-Exit Plate, Single-Gang, Green 2″ Square Button

The ENFORCER Wireless RF Request-to-Exit Button is an excellent solution for difficult access control installations. The RTE plate combines the very best of SECO-LARM, flexible wireless solutions and reliable access control. The RTE plate is a great option for cement or brick walls, or any other location where it is difficult to run wires.

  • product_icon
  • product_icon
  • Built-in 315MHz RF transmitter powered by a common 9VDC battery (included)
  • Over 68 billion (6.8×1010) possible codes
  • Range up to 250 feet (76m)*
  • Faceplate LED indicates transmission and low battery
  • Stainless steel single-gang faceplate with illuminated green 2″ square button
  • May be either surface- or flush-mounted using a non-metal backbox
  • Interchangeable “Push to Exit” button plates included – English, Spanish, French, and a blank that you can customize with your own message

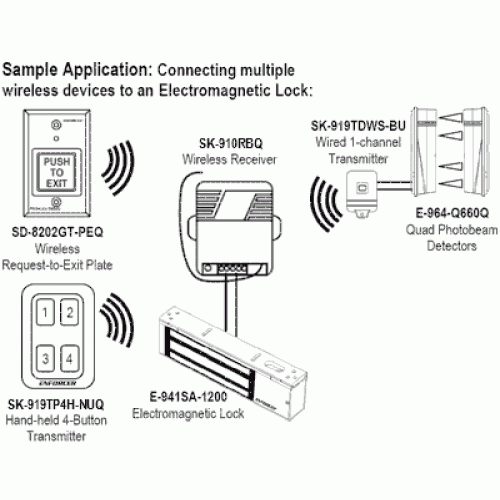

  • Requires any ENFORCER 315MHz RF receiver
*Actual range will vary greatly depending on the installation and operating environment.
Operating voltage9VDC
Operating Frequency315MHz
Battery LifeUp to four (4) years (60 uses per day)
Maximum range*250′ (76m)
Dimensions4-1/2″ x 2-3/4″ x 2-1/4″ (114x70x57 mm)
Weight8.1-oz (230g)
Product Information Sheet (PI) (pdf, 828KB)
Download
Manual (pdf, 285KB)
Download
