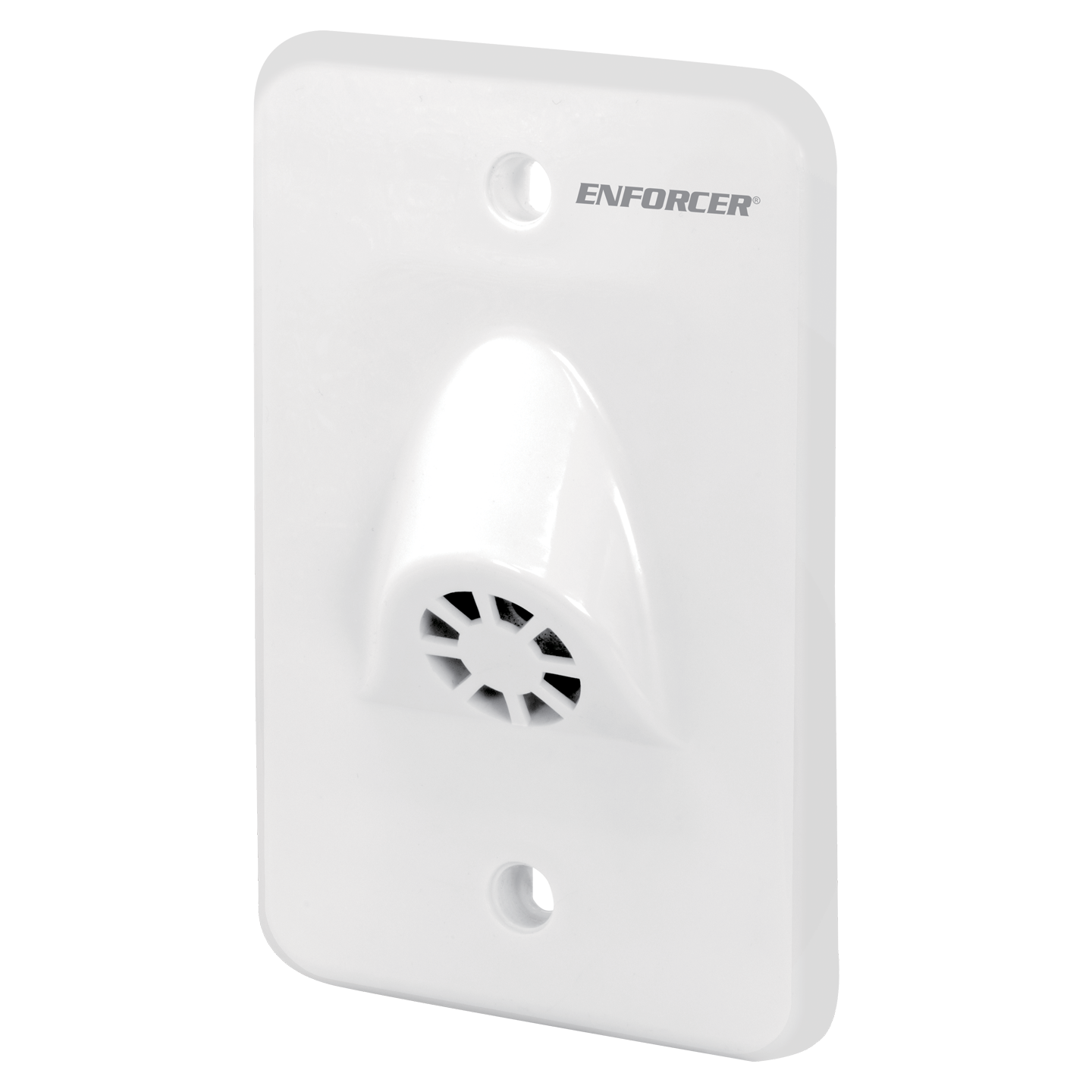

SH-511BQ

Single-Tone Weather-Resistant Siren

The ENFORCER Single-Tone Weather-Resistant Siren is downward-oriented, designed for flush-mounting to a standard single-gang back box, and suitable for outdoor use. It produces a high-output, 103dB steady siren sound with a maximum current draw of only 100mA. Its flexible voltage range of 6~14 VDC and simple 2-wire installation make it suitable for a wide range of applications.

  • product_icon
  • product_icon
  • Flexible voltage range 6~14 VDC
  • High-output – 103dB@3ft (1m)
  • Simple 2-wire installation
  • Low-profile, flush-mount design
  • Durable white plastic housing
  • Compatible with standard single-gang back boxes
  •  IP42 rated for outdoor use
  • Mounting screws included
  • 5-Year Warranty
Operating voltage6~14 VDC
Current draw100mA@12VDC
Siren typeSingle-tone
Siren volume103dB@3′ (1m)
Mounting typeSingle-gang, flush-mount
IP RatingIP42 Weather-resistant
Operating humidity0~95%, non-condensing
Storage temperature−40°~194° F (−40~90° C)
Operating temperature−22°~185° F (-30°~85° C)
Dimensions3″x5″x1-1/2″ (76x127x38 mm)
Product Information Sheet (PI) (pdf, 272KB)
Manual (pdf, 196KB)
