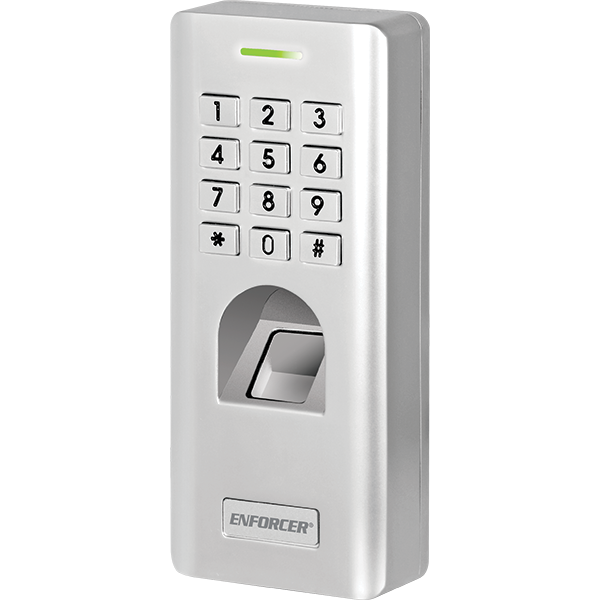

SK-2612-SFSQ

Fingerprint Reader and Keypad

  • product_icon
  • product_icon
  • product_icon
  • 500DPI Optical fingerprint reader
  • Up to 3,000 users (up to 1,000 fingerprint users, up to 2,000 PIN users)
  • User code length 4~6 digits
  • Fingerprint identification time – ≤1 second
  • Fingerprint false acceptance rate – ≤0.01%
  • Fingerprint false rejection rate – ≤0.1%
  • 12VDC Operation
  • Form C relay output – [email protected]
  • Tamper alarm output – [email protected]
  • Adjustable relay output time – 100ms~99s, or toggle
  • Weatherproof – IP66
  • Illuminated fingerprint reader window
  • 26~44 bit Wiegand output
  • 2-Door interlock
Operating Voltage 12VDC
Current Draw – Standby [email protected]
Current Draw- Active [email protected] (max.)
Output- Wiegand 26~44 bit
Output – Form C [email protected]
Output- Tamper [email protected]
IP Rating Weatherproof IP66
Egress Inputs N.O. Ground
Door Sensor Input N.C. Ground
Enclosure material Zinc alloy
Operating Temperature -22°~140° F (-30°~60° C)
Operating Humidity 20~90%
Dimensions 2-1/4″x5-3/8″x1″ (58x137x26 mm)
Weight 14.2-oz (400g)

Product Information Sheet (PI)

Manual

Manual Addendum

Unit fails to accept a new fingerprint
  • Ensure the User ID assigned is between 1 and 1000
  • Ensure the User ID has not been assigned to another user
Unit fails to accept a new user code
  • Ensure the User ID assigned is between 1001 and 3000
  • Ensure the user code is between 4~6 digits long and not already assigned to another user
Unit fails to read a programmed fingerprint
  • Ensure the finger being presented is the same finger that was originally programmed
  • Press the finger evenly on the central area of the reader
  • Ensure the reader window is clean
Unit fails to respond to a programmed
fingerprint or user code
  • Ensure the unit is in standby mode by pressing the key until the LED becomes steady red
