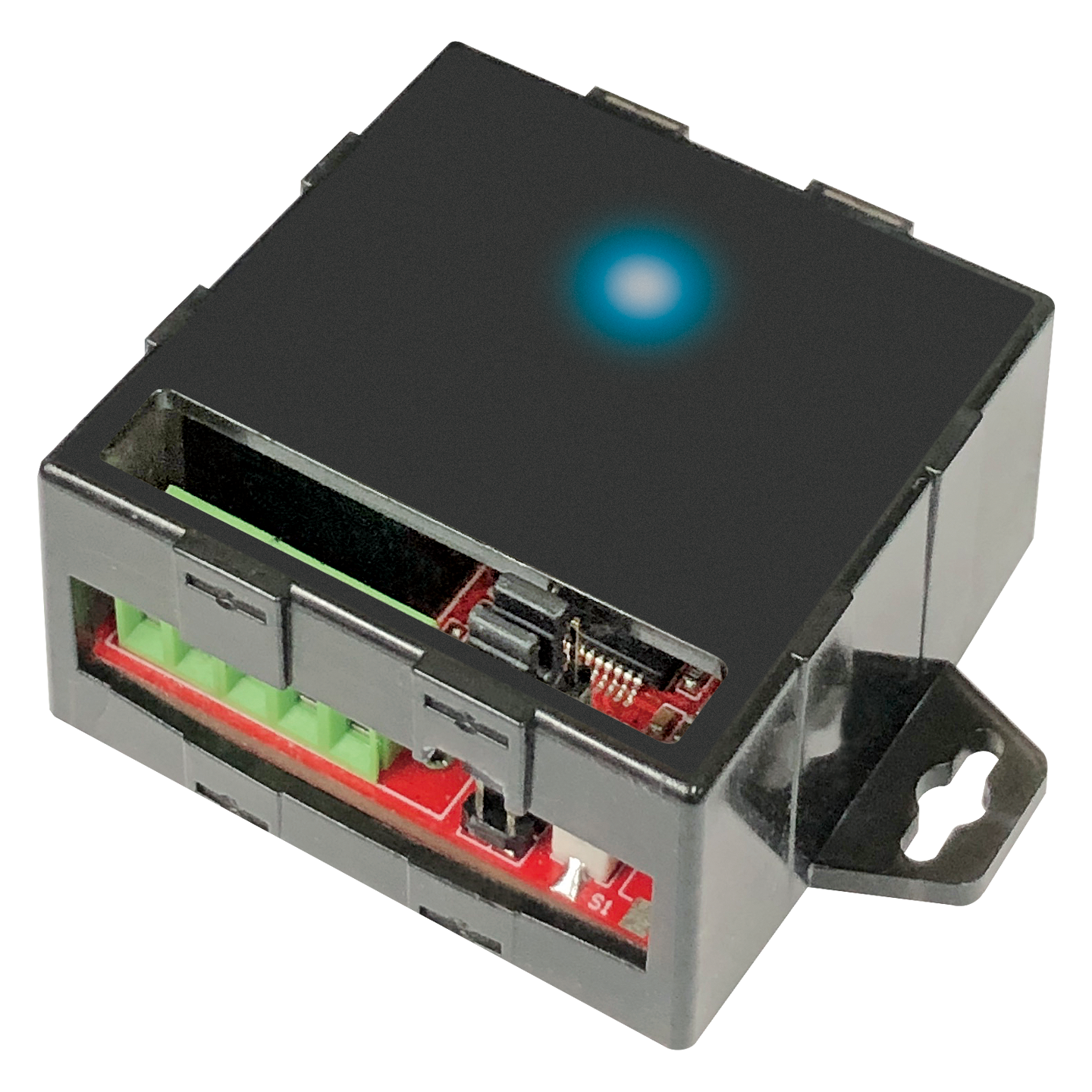

- Compact housing fits in a standard conduit box
- Mounting tabs scored for easy removal
- Flexible 12/24 VAC/VDC (selectable*) operating voltage
- Learn up to 8 transmitter button codes per channel
- Range†: Up to 330ft (100m)
- 4 Independently switchable output modes, programmable via jumpers – 1 second (default), 10 seconds, 30 seconds, or toggle
- Either 7A Form C relay (NO/NC/COM)
- Compatible with all ENFORCER transmitters of the same frequency
*24VAC/VDC is selectable by cutting a wire jumper.
†Actual operating range will vary greatly depending on the installation and operating environment.
| Operating frequency | 433.92MHz |
| Certifications | FCC, CE, IC, RoHS |
| Memory capacity | Up to 8 button codes per channel |
| Operating voltage | 12/24 VAC/VDC (selectable*) |
| Current draw (max.) | Standby: 10mA@12VDC
Active: 60mA@12VDC per channel |
| Channels | 1 |
| Outputs | Number: 1
Type: CH1 – Form C
Rating: CH1 – 20A@14VDC, 7A@120VAC
Modes:1 second (default), 10 seconds, 30 seconds, or toggle |
| Connectors | Screw terminal block |
| Connections | Exposed screw terminals |
| LED Indicator | Blue, channel activity |
| Range† | Up to 330ft (100m) |
| Operating humidity | 5~95% non-condensing |
| Operating temperature | −40°~167° F (−40°~75° C) |
| Dimensions | 1-11/16″x7/8″x1-11/16″ (43x23x43 mm) |
| Weight | 1-oz (30g) |
*24VAC/VDC is selectable by cutting a wire jumper.
†Actual operating range varies greatly depending on installation and operating environment.
