- For “informative” general signaling requirement applications
- 100,000 Candle-power xenon tube visible from a distance
- Simple 2-wire installation with reverse polarity protection
- 12″ Heavy-duty 18-gauge leads
- Low current draw with long operating life over 300 continuous hours (2,000,000 flashes)
- Lens is made of high-impact and heat-resistant acryrex
- Case is made of high-impact resistant black ABS plastic

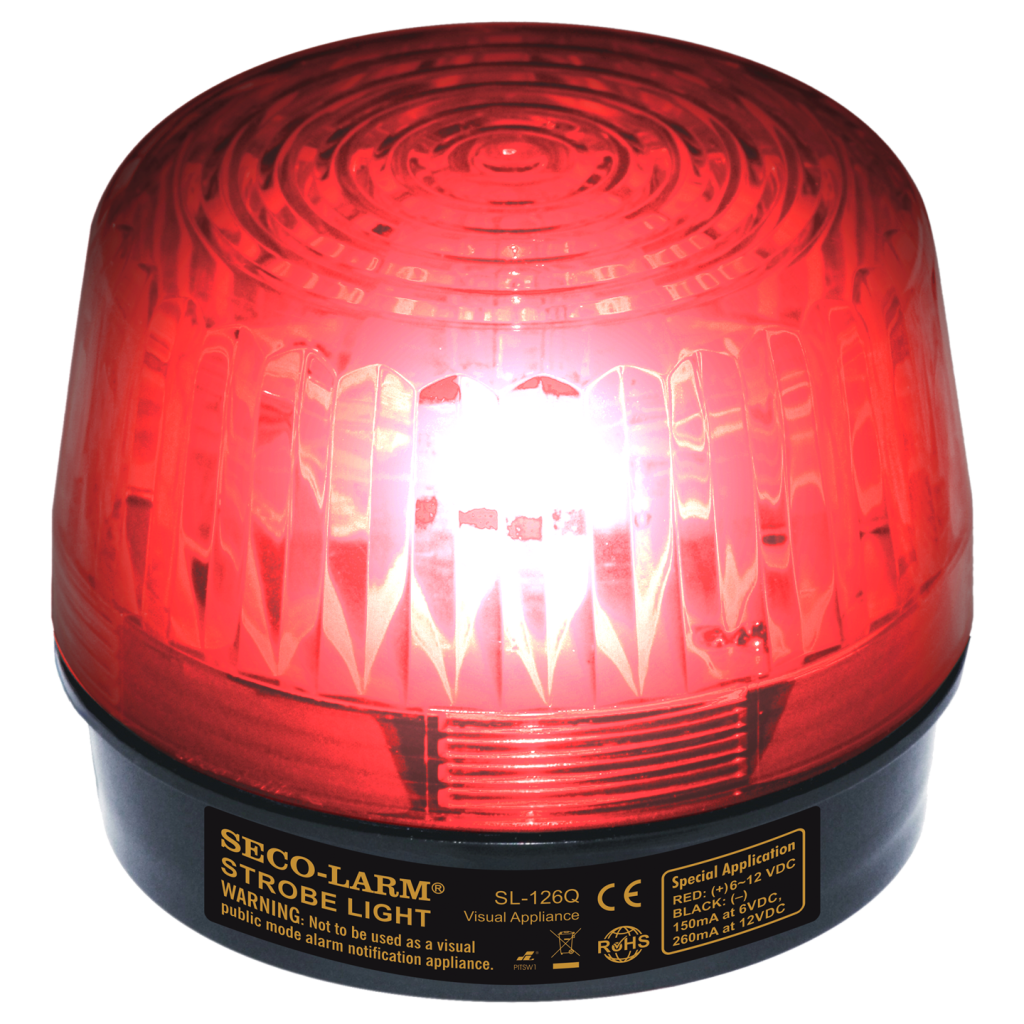

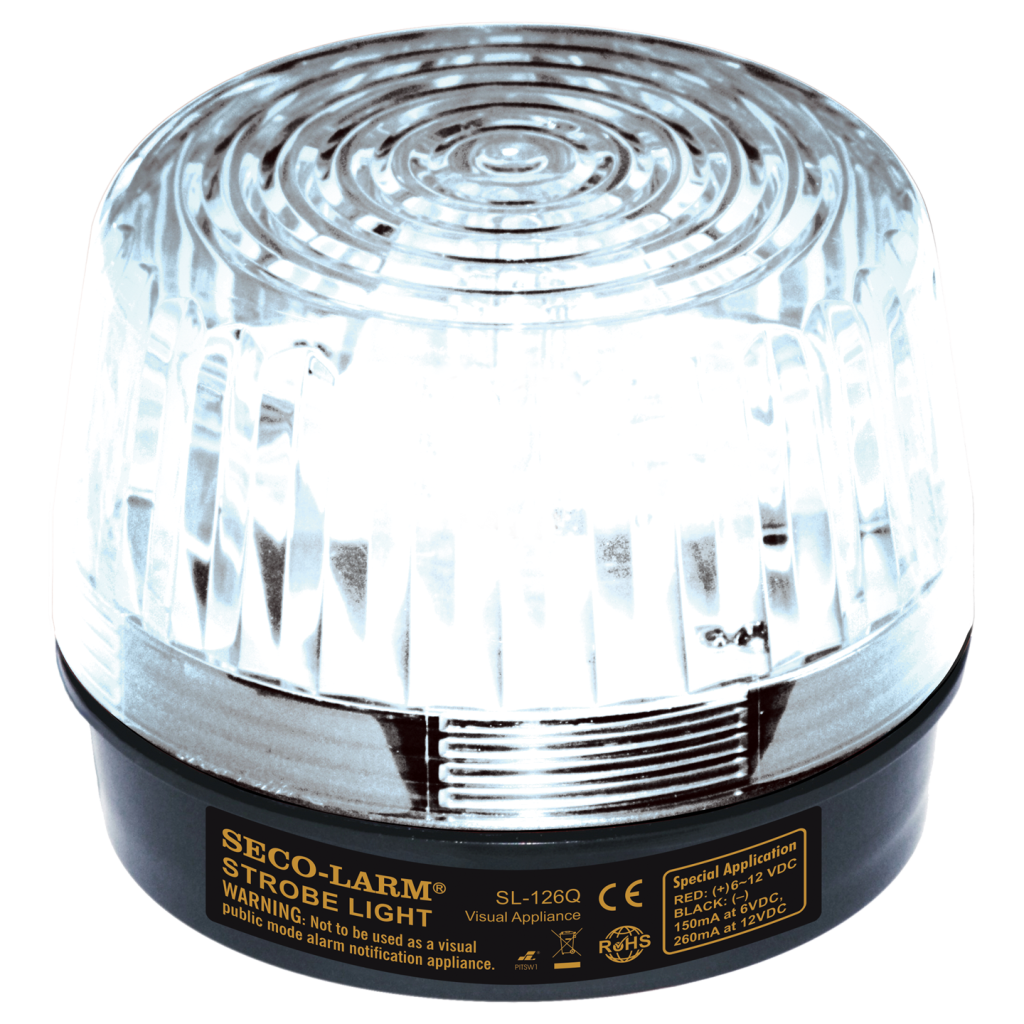

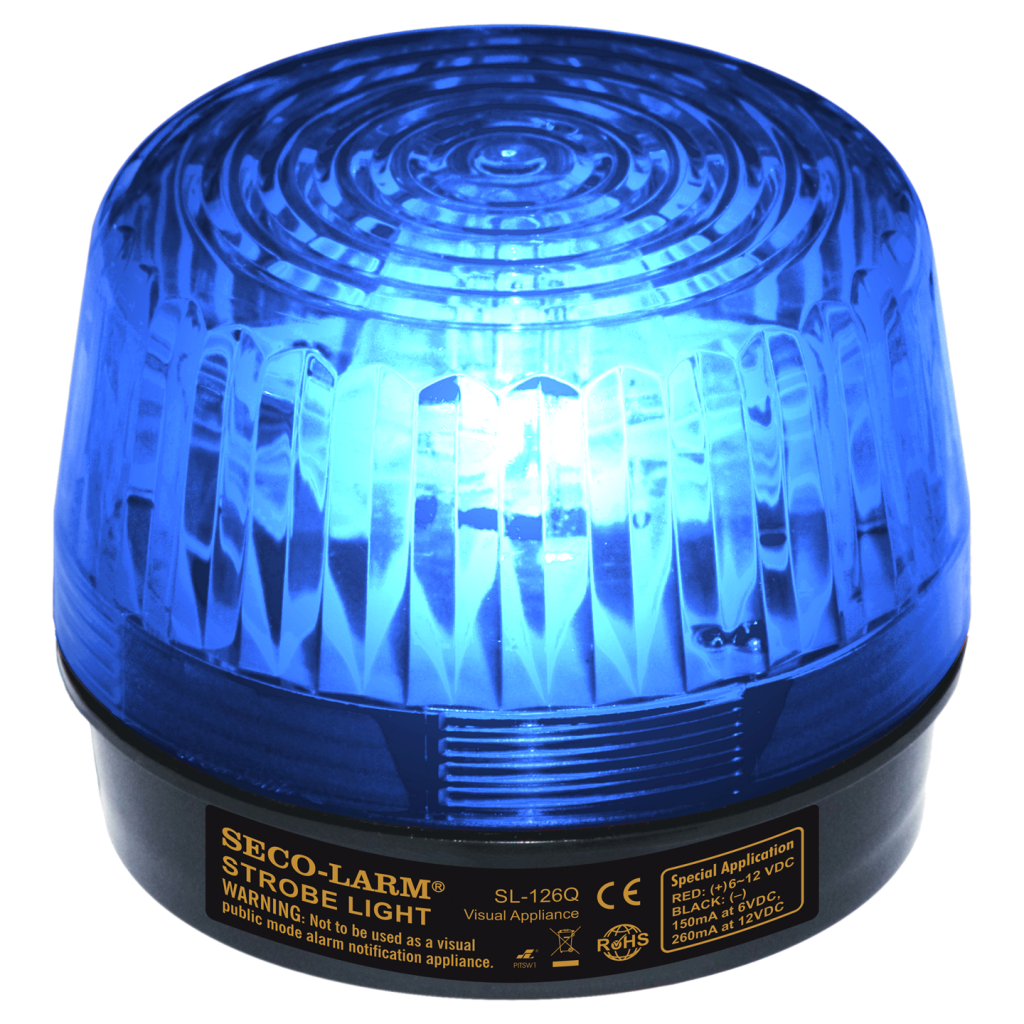

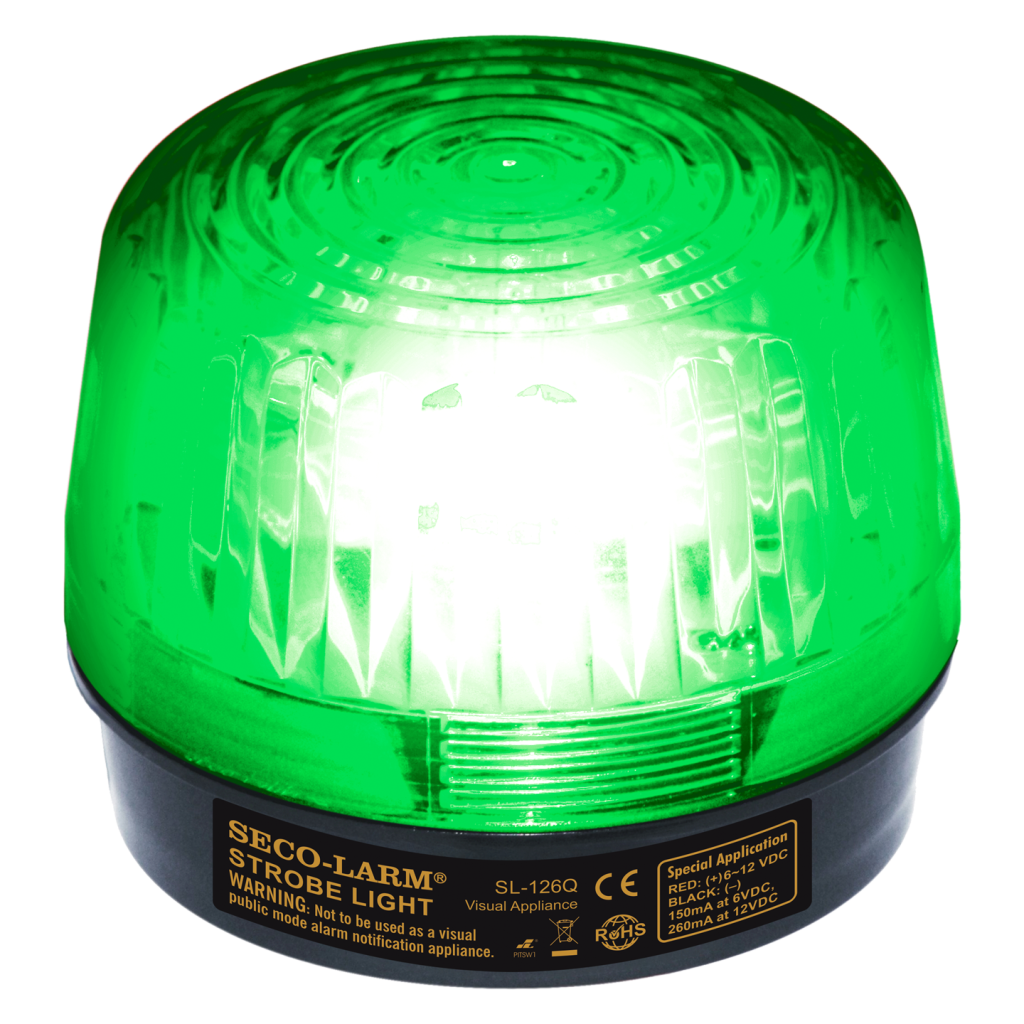

- Choice of amber, blue, clear, green, or red lens
- Inner cover protects the high-voltage Xenon tube when the colored lens has been removed
| Operating voltage | 6~12 VDC |
| Current draw (max.) | 6VDC: 150mA 12VDC: 260mA |
| Flash rate | 6VDC: Over 70/min 12VDC: Over 100/min |
| Operating life (flashes) | Over 2,000,000 flashes |
| Operating life (hours) | 6VDC: 550 12VDC: 370 |
| Electrical protection | Reverse polarity protected |
| IP Rating | IP55 Weatherproof* |
| Operating temperature | -22°~140° F (-30°~60° C) |
| Dimensions | ø3-15/16″x3-1/8″ (ø100×79 mm) |
*When properly installed
