- Automatic recharging of backup batteries
- Automatic switchover to backup battery if main power is lost or cut
- Built-in battery short-circuit protection
- Low-battery cutoff
- LEDs indicate power status
- Programmable DC voltage output
- Regulated and filtered output voltage
- Fused output for a regulated charge

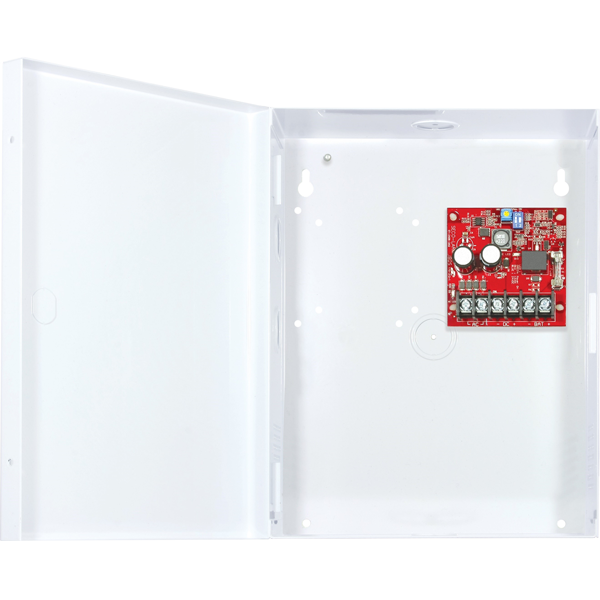

- Heavy-duty steel case to protect power connections
- Enclosure has space for up to two 4Ah or one 7Ah backup batteries
- Includes battery leads for easy installation
- High efficiency at full load
Heat sink free design
DC Voltage | 6,12,24 |
Operating voltage | 12~24 VAC/VDC for 6VDC, 18~24 VAC/VDC for 12VDC, 24~28 VAC or 26~28 VDC for 24VDC |
Current (continuous) | 2.5A |
Current (peak) | 3.0A |
Current output (max. charge) | 6V=100mA, 12V=220mA, 24V=450mA |
Maximum AC input | Please check the manual. See Transformer Selection in Table 3, pg. 3 |
Master fuse | 5A |
Low battery cutoff | When battery voltage is <20% |
Status LEDs | AC Input: Green DC Input: Red/Blue (Blue indicates 24V) |
Operating humidity | Up to 90%, non-condensing |
Operating Temperature | -4°~149° F (-20°~65° C) |
Dimensions | Board: 2-7/8″x2-1/4″x1-3/8″ (73x64x35mm) Enclosure: 10″x7-3/4″x3-1/2″ (254x196x89 mm) |
Weight | 3-lb 15-oz(1.78kg) |
