- ETL, Conforme a UL Std. 294
- Conforme a los códigos contra incendios NFPA 101 para rotura de contacto no eléctrica
- Funciona totalmente sin electricidad
- Excelente para instalaciones donde el suministro de energía de temporizador adicional es inconveniente

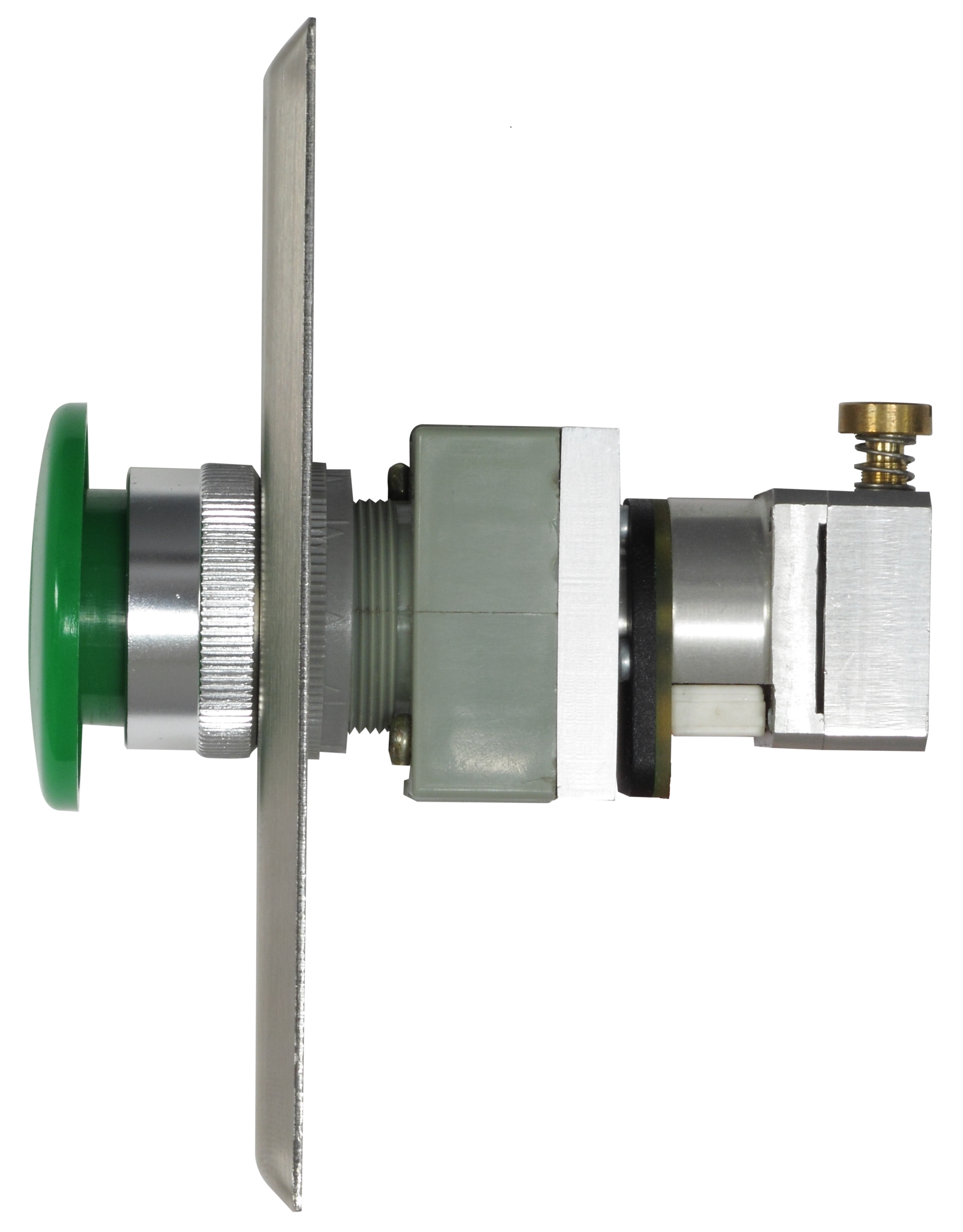

- Componentes neumáticos fiables fabricados en EE.UU.

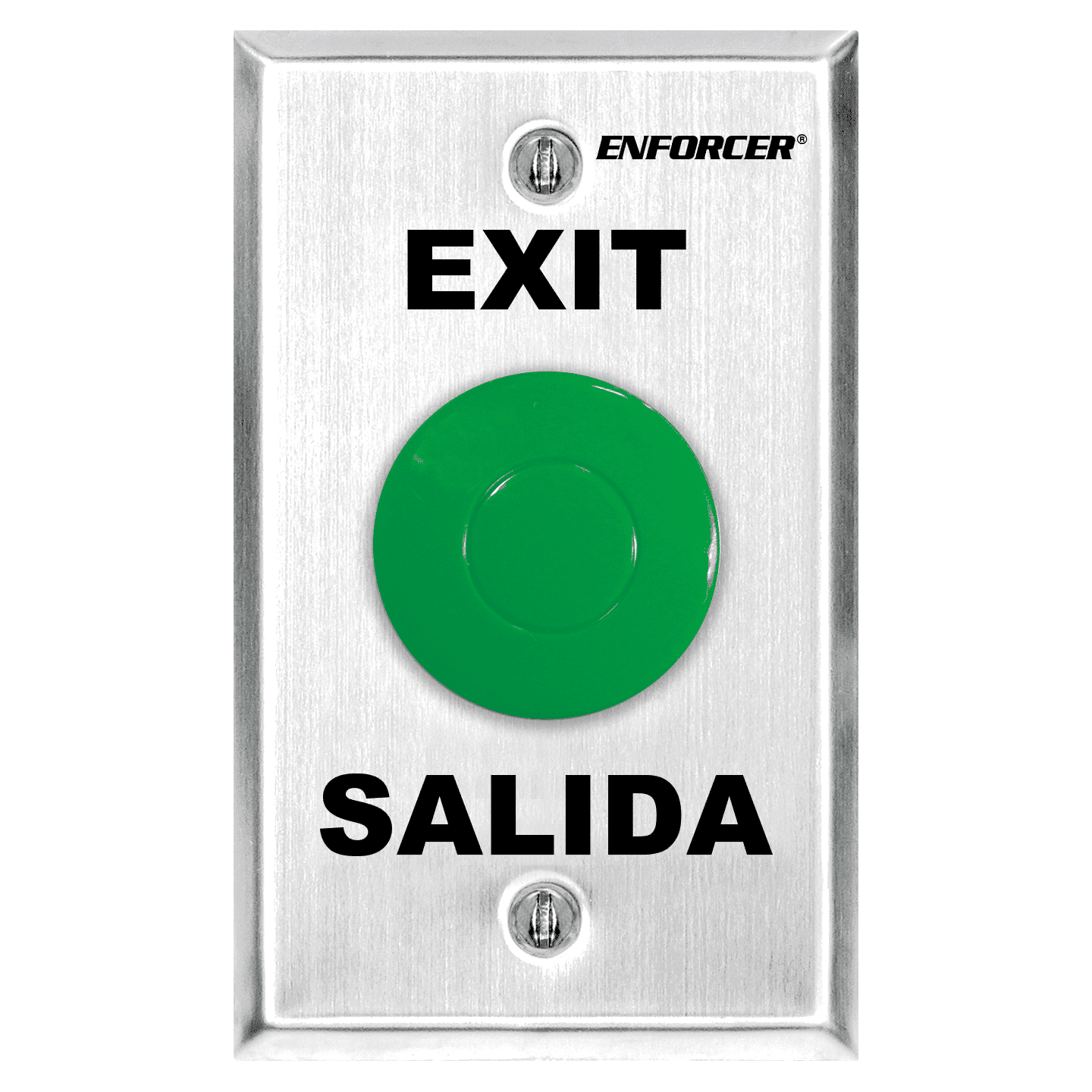

- Placa frontal de acero inoxidable
- Inglés y español impresos en la placa frontal
- Temporizador ajustable de 1 a 60 segundos
Faceplate | Single-gang, brushed stainless steel |
Mushroom cap button | Size: Standard Color: Green |
Timer | Pneumatic: 1~60 seconds* |
Switching capacity | 5A@125VAC |
Wiring | Red: 2x N.C. #18 AWG 9″ (230mm) for fail-safe White: 2x N.O. #18 AWG 9″ (230mm) for fail-secure |
Destructive attack level | Level I |
Line security | Level I |
Endurance level | Level I |
Standby power | Level I |
Operating temperature | 32°~131° F (0°~55° C) |
Dimensions | 2-3/4″x4-1/2″x3-1/2″ (70x115x88 mm) |
* Note: Time is precise to within ±10% for constant temperature and may vary according to environmental factors.
