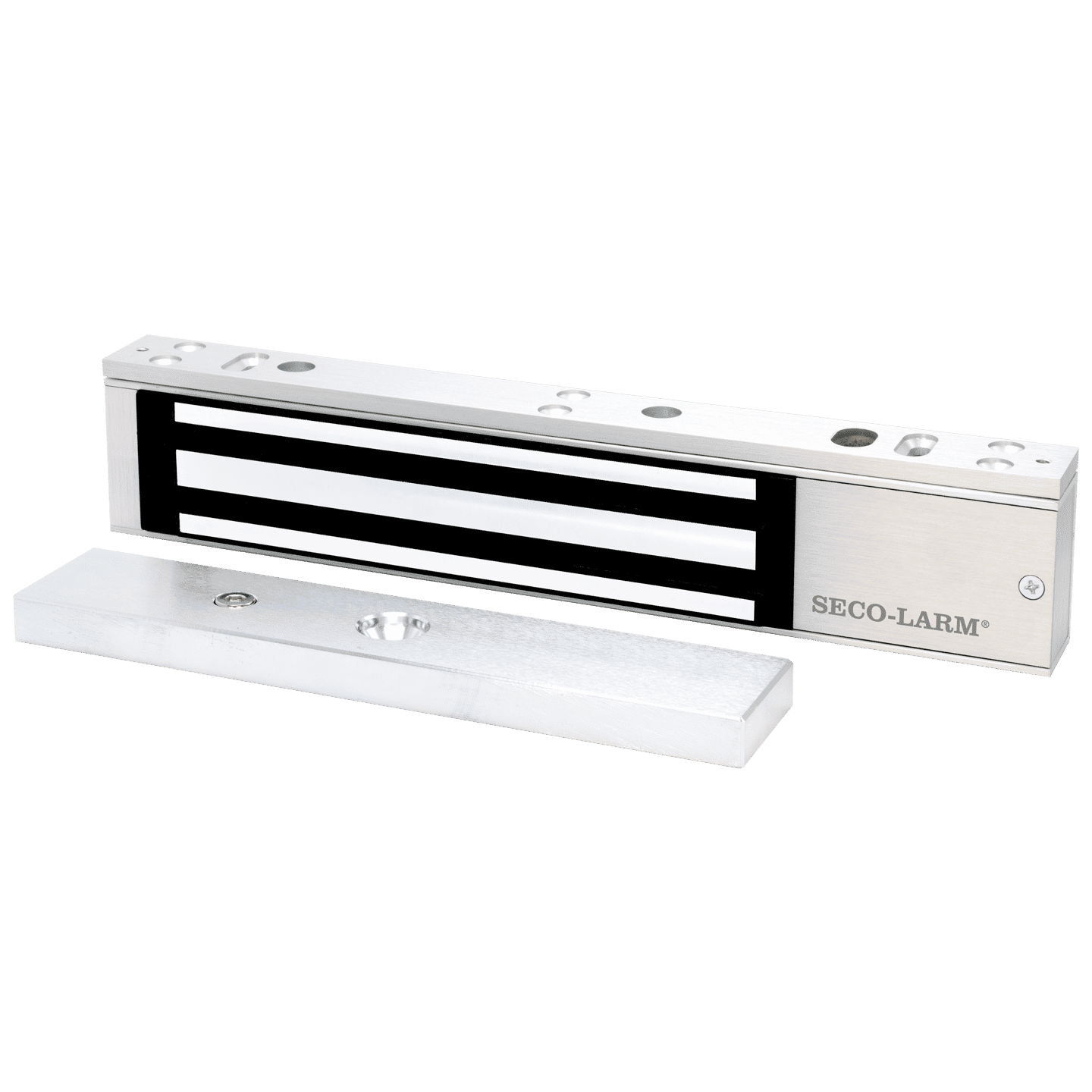

- 600-lb (272kg) Holding force
- MOV surge protection built in
- Adjustable mounting bracket
- Complete mounting hardware for typical installations
- “L” bracket and “Z” brackets available for easy mounting
- Detachable faceplate
- 12/24VDC selectable
| Operating voltage | 12/24 VDC (selectable) |
| Current draw | 500mA@12VDC, 250mA@24VDC |
| Door thickness (max.) | 2″ (50mm) |
| Holding force | 600-lb (272kg) |
| Dimensions – Magnet | 9-13/16″x1-11/16″x1″ (250x43x25 mm) |
| Dimensions – Armature Plate | 7-1/4″x1-1/2″x1/2″ (185x38x12 mm) |
| Operating humidity | 0~85 (non-condensing) |
| Operating temperature | 32°~120° F (0°~49° C) |
| Lock surface temperature | ≤ Ambient temperature ± 68° F (20° C) |
| Destructive attack | Level I |
| Line security | Level I |
| Standby power | Level I |
| Endurance | Level IV |
| Weight | 4-lb 6-oz (2kg) |
UL 1034 Rating
| Static strength | 500-lb |
| Dynamic strength | 50 ft-lb |
| Endurance | 250,000 cycles |
FAQs
- Check to make sure the wires are securely tightened to the terminal block.
- Check that the power supply is connected and operating.
- Make sure the rubber washer is installed and free from damage.
- Make sure the electromagnet and armature plate are properly aligned.
- Make sure the contact surfaces of the electromagnet and armature plate are clean and free from rust.
- Check the power leads with a meter, and make sure 12VDC or 24VDC ispresent.
- Make sure the rubber washer is installed and free from damage.
Wipe the surface of magnet lock with anti-rust oil regularly.
