600-lb Electromagnetic Lock, Bond Sensor, Status LED, Timer, UL Listed

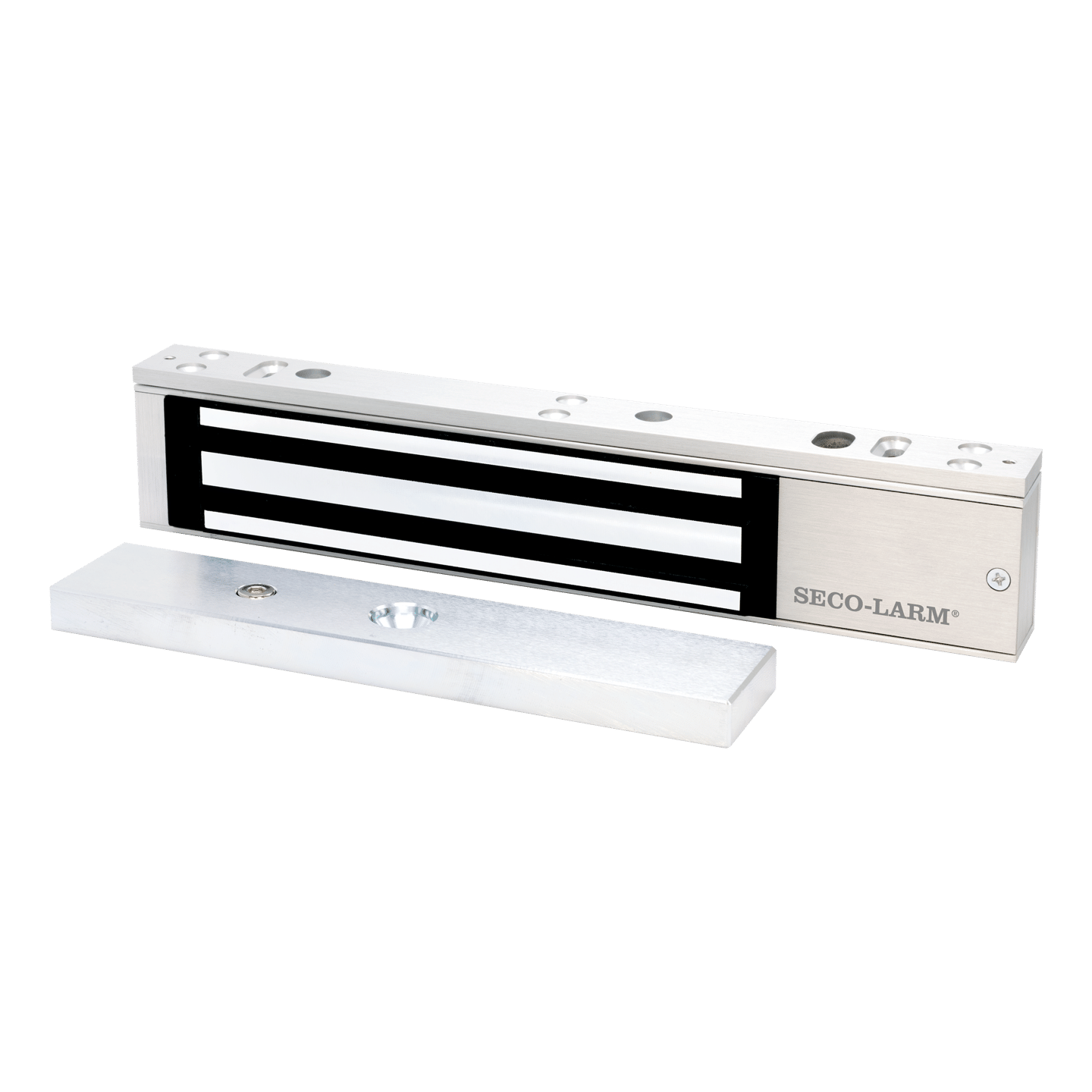

The E-941Sx series of electromagnetic locks is the ideal way to secure a door against unauthorized entry. When power is applied to the electromagnetic lock, it creates an extremely strong magnetic field. The electromagnet is strongly attracted to the steel armature plate which is mounted on the secured door. Once the electromagnet is deactivated, the secured door will function normally without any residual magnetism.

  • product_icon
  • product_icon
  • product_icon
  • 600-lb (272kg) Holding force
  • MOV surge protection
  • Adjustable mounting bracket
  • Complete mounting hardware for typical installations
  • “L” bracket and “Z” brackets available for easy mounting
  • Detachable faceplate
  • 12/24VDC selectable
  • Built-in status LED shows locked/unlocked status
  • Built-in bond sensor with 1A@30VDC dry relay output for monitoring door status
  • Built-in timer: 1~78 seconds
Holding force600-lb (272kg)
Operating voltage12/24 VDC (selectable)
Current draw500mA@12VDC, 270mA@24VDC
Operating temperature32º~120º F (0º~49º C)
Magnet dimensions9-13/16″x1-11/16″x1″ (250x43x25 mm)
Armature dimensions7-1/4″x1-1/2″x1/2″ (185x38x12 mm)
Destructive attack Level I
Line securityLevel I
Standby power Level I
Endurance Level IV
Weight4-lb 6-oz (2kg)
Bond SensorSPDT relay, 1A@30VDC
Status LEDYes
TimerYes
Manual (pdf, 521KB)
Download

FAQs

b

Delay in door releasing

  1. The electromagnet is fitted with a metal oxide varistor to prevent interference, so do not install a second diode.
  2. Ensure that the control device is connected between the power source and the positive terminal of the lock
b

Door locks, but can easily be forced open.

  1. Make sure the electromagnet and armature plate are properly aligned.
  2. Make sure the contact surfaces of the electromagnet and armature plate are clean and free from rust.
  3. Check the power leads with a meter, and make sure 12VDC or 24VDC ispresent.
  4. Make sure the rubber washer is installed and free from damage.
