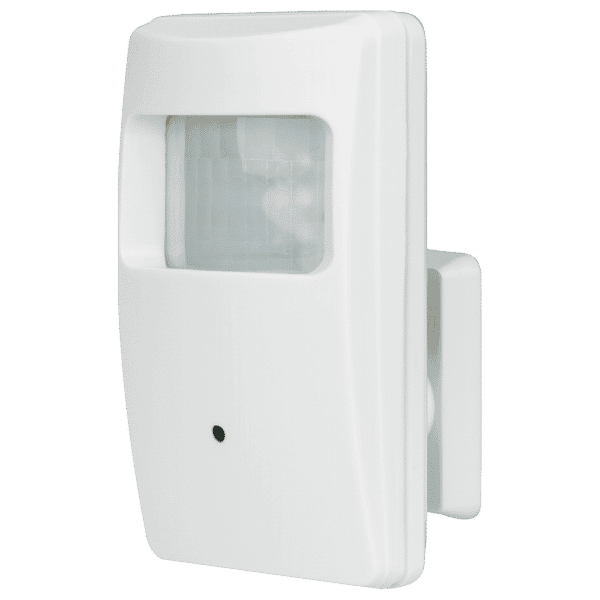

4-in-1 HD TVI, CVI, AHD, Analog Covert PIR Camera

  • product_icon
  • product_icon
  • product_icon
  • 5MP Resolution
  • 1/2.8” 5MP Sony CMOS
  • Joystick OSD Control
  • ICR Module
  • 2DNR (2D Digital Noise Reduction)
  • D-WDR (Digital Wide Dynamic Range)
  • 3.7mm Covert pinhole lens
  • 18 Covert IR LEDs for discreet monitoring
  • Camera is hidden in a non-functioning PIR sensor housing
Formats TVI (Default) / CVI / AHD / Analog
CMOS 1/2.8″ 5MP Sony CMOS
Resolution (HD) 2592×1944, 1440p
2DNR Yes
OSD (On-Screen Display) Yes
Cable OSD control Yes
Megapixels 5MP
Lens 3.7mm Pinhole Lens
Viewing Angle 120°
# of IR LEDs 18 Covert (940nm)
IR Range Up to 50ft (15m)
F Stop 2.2
Minimum illumination – IR On 0.1 Lux
Minimum illumination – IR Off 0.01 Lux
S/N Ratio >50dB
Shutter control AES (Auto Electric Shutter), 1/60~1/50,000 s
Gain control Yes
Operating voltage 80mA@12VDC
IP Rating IP65
Operating temperature -4°~140° F (-20°~60° C)
Dimensions 4-1/16″x2-3/8″ x1-5/16″ (104x60x34 mm)
Weight 12.3-oz (350g)

Product Information Sheet (PI)


On-Screen Display Manual


Check that the correct power supply is in use.

Change the position of the camera.

Adjust the monitor’s contrast knob. Change the position of the camera.

Clean the lens using a soft, clean cloth. Check that the light source is adequate.

Change the position of the camera.

  1. Check that the camera is powered up.
  2. Check that the power supply’s polarity is correct. Check that the monitor is powered up.
  3. Check that the video cable connecting the camera to the monitor is connected properly.
