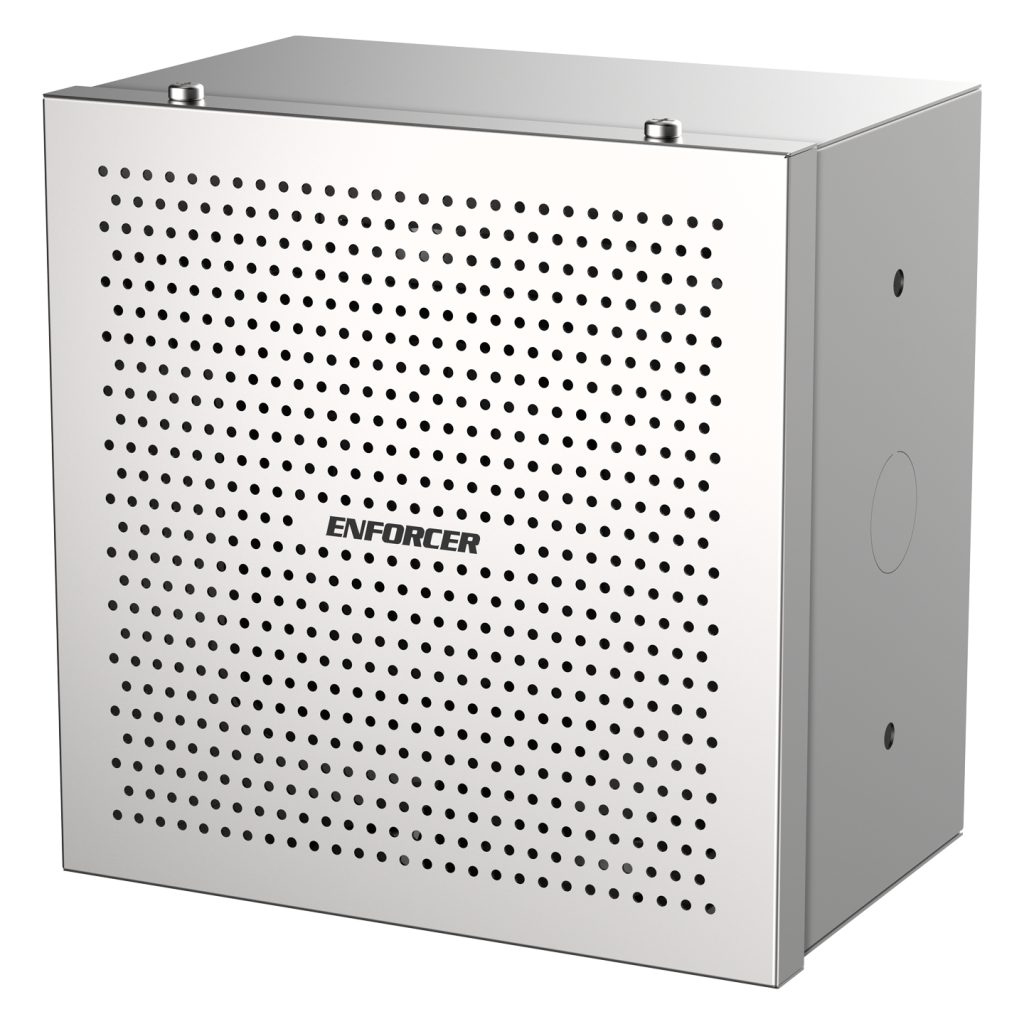

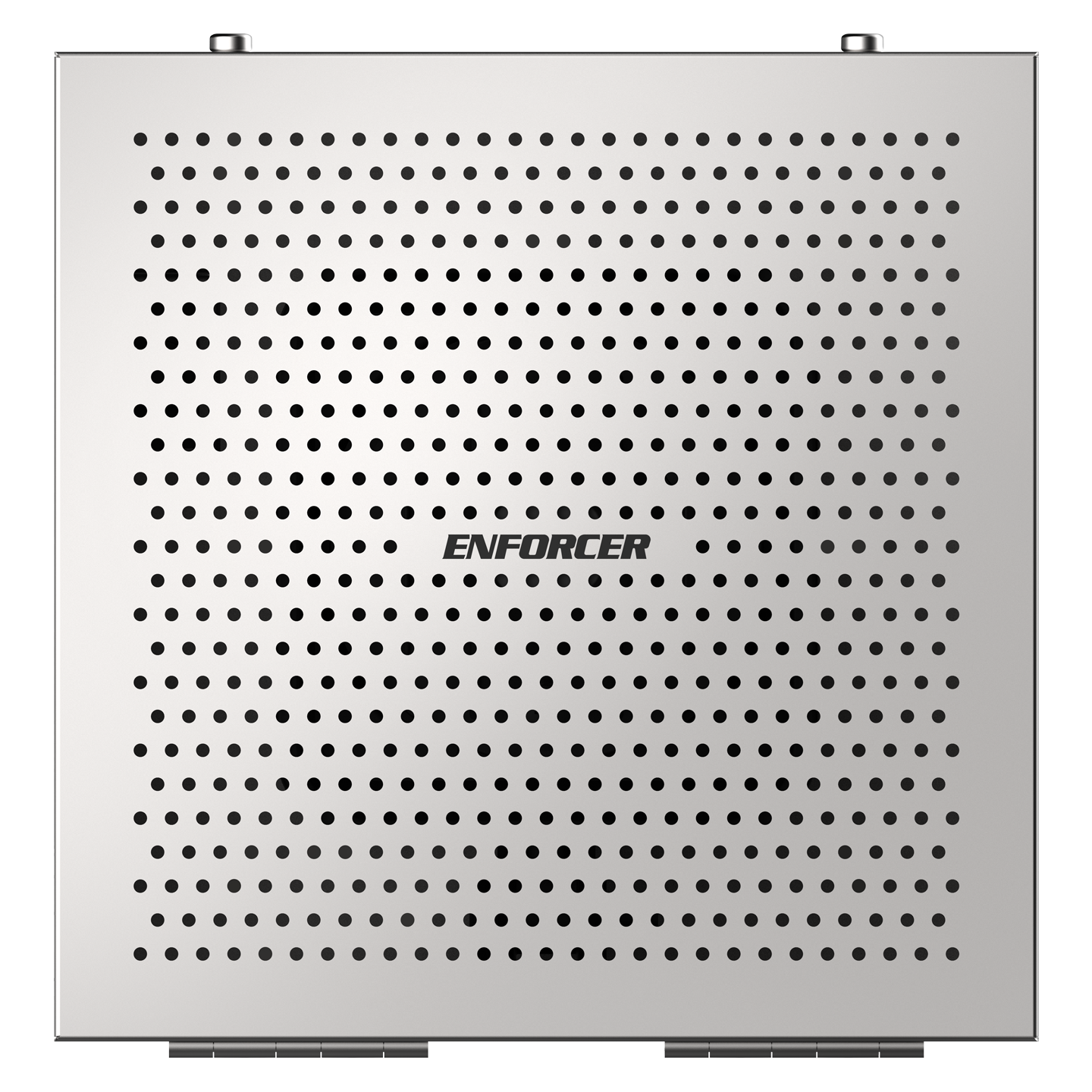

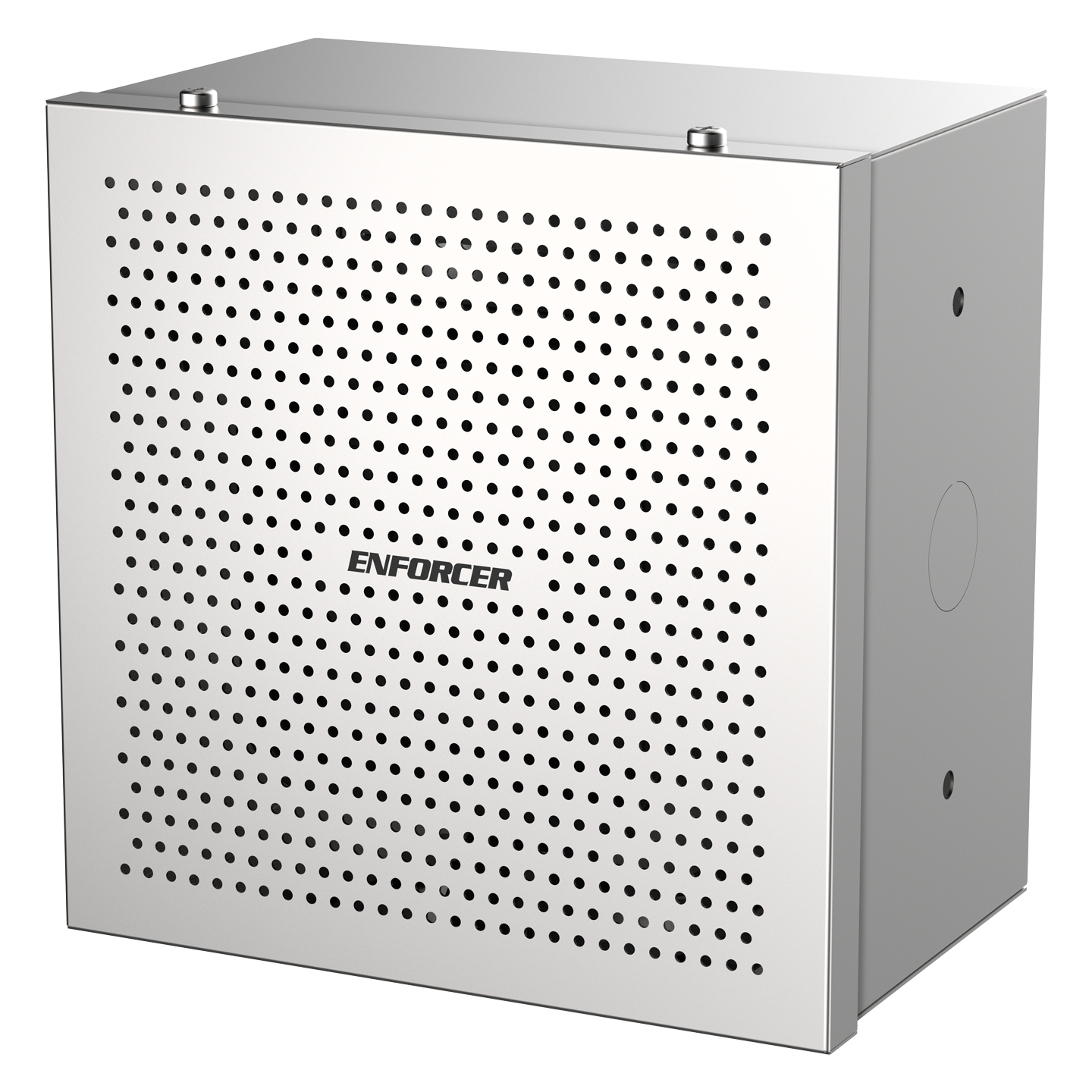

- Attractive, corrosion-resistant stainless steel housing with a variety of pre-drilled mounting holes for most back boxes or mounting situations, and wiring knockouts on the back and sides
- Two-way tamper alarm output triggers if the unit is removed from the wall or the cover is opened

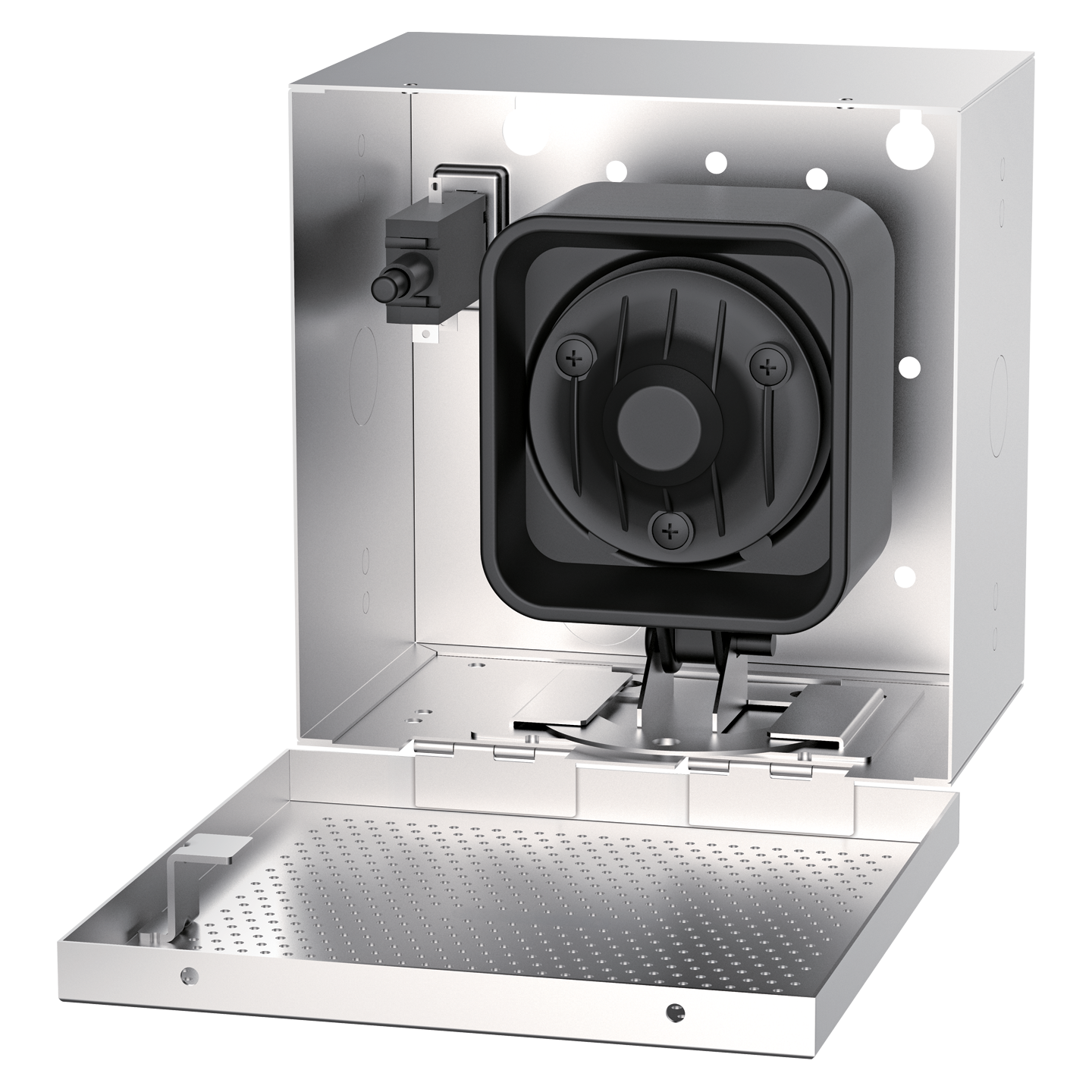

- Terminal block for easy wiring
- Mounting hole knockouts (both sides) for a strobe or other compatible single-gang device
- Mounting holes for installing an optional vibration sensor (SS-040Q) inside for extra security
- Dual-tone siren selectable for steady tone or warble tone, 110dB@3ft (1m)
| Type | Siren |
| Operating voltage | 9~12 VDC |
| Current Draw | 1A@12VDC |
| Inputs | Audio: N/A Power:1x COM (−), 1x steady tone (+), 1x warble tone (+) |
| Tamper output | N.C. switch, 0.5A@24VDC |
| Tamper sensor | Dual-pin switch |
| Siren volume | 110db@3ft (1m) |
| Speaker rating | N/A |
| Connectors | Screw terminals |
| Operating humidity | Up to 87%, non-condensing |
| Operating temperature | 32°~149° F (0°~65° C) |
| Material | Stainless steel housing |
| Dimensions | 5-11/16″x5-13/16″x3-9/16″ (145x147x90 mm) |
| Weight | 2-lb 11-oz (1.2kg) |
