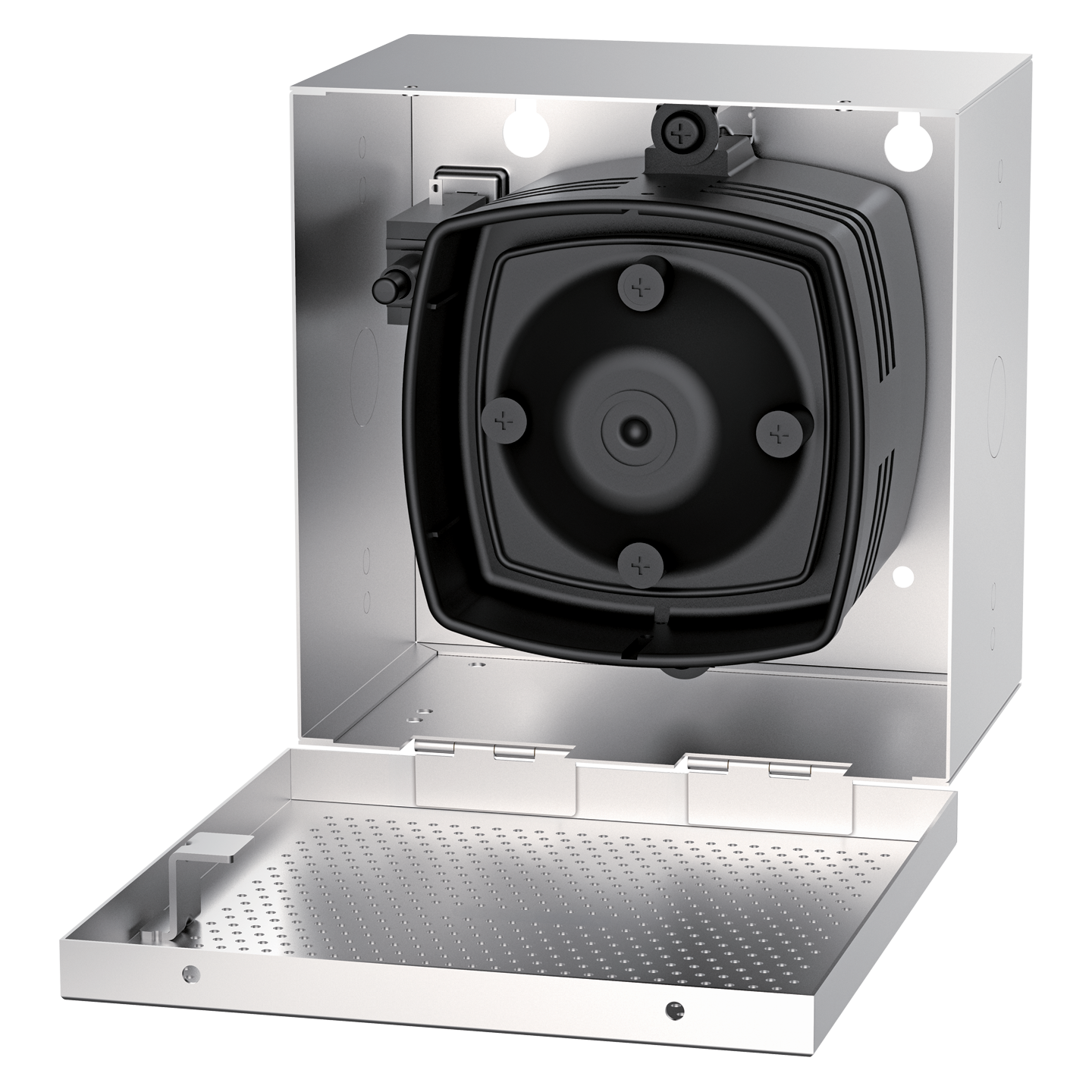

- Attractive, corrosion-resistant stainless steel housing with a variety of pre-drilled mounting holes for most back boxes or mounting situations and wiring knockouts on the back and sides
- Two-way tamper alarm output triggers if the unit is removed from the wall or the cover is opened
- Terminal block for easy wiring
- Mounting hole knockouts (both sides) for a strobe or other compatible single-gang device
- Mounting holes for installing an optional vibration sensor (SS-040Q) inside for extra security
- Powered by audio input, no separate power connections needed
- Clear high-output sound reproduction
- Speaker rating – 30W nominal / 50W peak, frequency response 500~7,000 Hz, 8Ω impedance
| Type | 30W Speaker |
| Operating voltage | N/A, powered by audio source |
| Current Draw | N/A |
| Inputs | Audio: 2x from audio source Power: N/A, powered by audio source |
| Tamper output | N.C. switch, 0.5A@24VDC |
| Tamper sensor | Dual-pin switch |
| Siren volume | N/A |
| Speaker rating | 30W Nominal, 50W peak, 8Ω impedance, frequency response – 500~7,000Hz |
| Connectors | Screw terminals |
| Operating humidity | Up to 87%, non-condensing |
| Operating temperature | 32°~149° F (0°~65° C) |
| Material | Stainless steel housing |
| Dimensions | 5-11/16″x5-13/16″x3-9/16″ (145x147x90 mm) |
| Weight | 3-lb 7-oz (1.6kg) |
