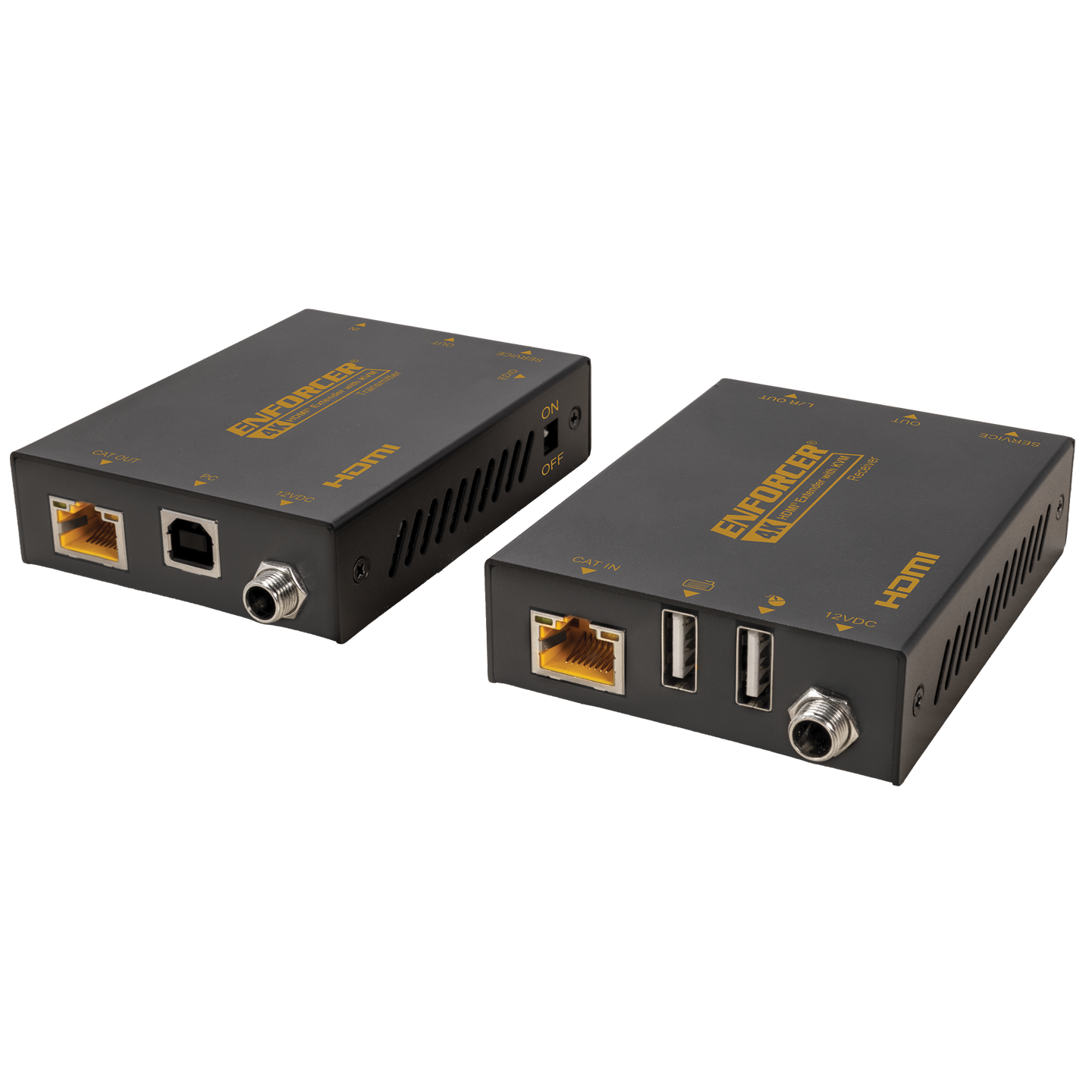

HDMI® Extender with KVM - 4K

MVE-AH1E1-43U

HDMI® Extender with KVM – 4K

The ENFORCER HDMI® Extender with KVM and PoC allow you to transmit HDMI audio and video as well as a USB signal up to 230ft (70m) over a single Cat6/6A cable using an active transmitter and receiver, allowing remote operation of a device such as a computer or NVR/DVR. The extenders also provide HDMI loop-out and KVM.

  • product_icon
  • product_icon
  • product_icon
  • product_icon
  • Display up to 4K@60Hz
  • Zero-latency transmission over a single Cat6/6A
  • Supports USB keyboard and mouse (KVM)
  • Supports point-to-point connections
  • Transmitter includes HDMI loop-out
  • Lightning Protection, surge protection, and ESD protection.
  • Supports Power over Cable (PoC) for simplified installation—requires only one power supply on either the transmitter or receiver side
Video bandwidth18Gbps
Video resolutionUp to 4K@60Hz
HDRHDR, HDR10, HDR10+, Dolby Vision, HLG
Color spaceRGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color8/10/12 bit
Audio formatsLPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+)
Transmission range (Cat6/6A)270ft (70m)
Cat6/6A Wiring standardT-568B
Power supply12VDC@1A
Current draw<12W
ESD protectionIEC 61000-4-2: ± 8kV (Air-gap discharge) & ± 4kV (Contact discharge)
Operating humidity20~90% (relative humidity, non-condensing)
Storage humidity10~90% (relative humidity, non-condensing)
Operating temperature32°~104° F (0°~40° C)
Storage temperature-4°~140° F (-20°~60° C)
Dimensions3-9/16″x2-11/16″x7/8″ (90x68x22 mm)
Weight 6-oz (170g)
