SD-7104SGEX1Q

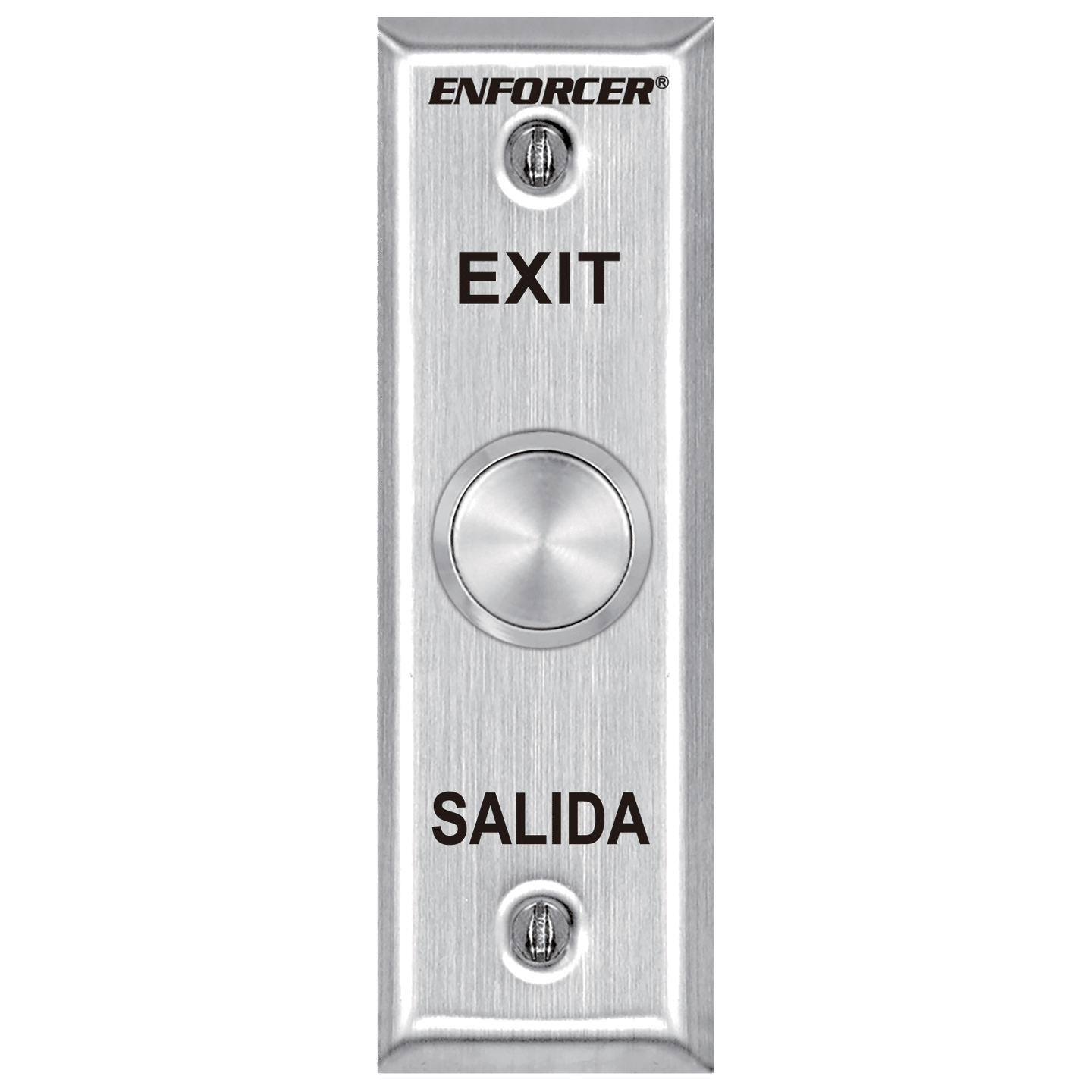

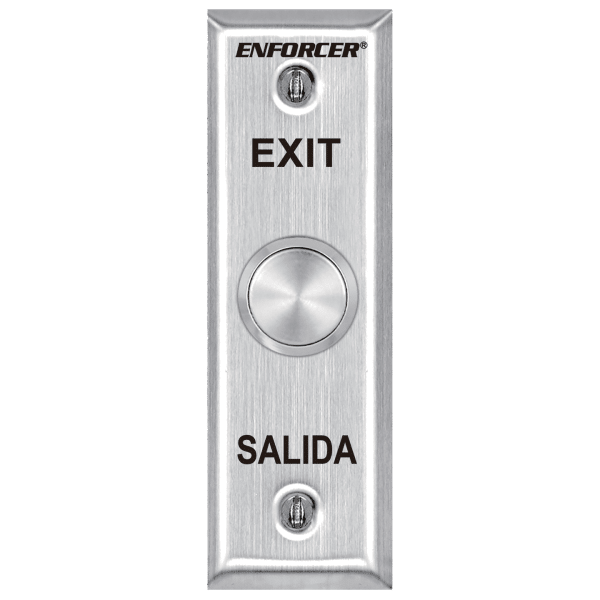

Vandal-Resistant RTE Wall Plate – Slimline

  • product_icon
  • product_icon
  • Vandal-resistant 1″ (25mm) push-button switch
  • Equipped with NO/NC (DPST) switch
  • Switch contact rating: [email protected]
  • “EXIT” and “SALIDA” silk-screened on plate
  • Weatherproof (IP56)
  • Single-gang version also available (SD-7204SGEX1Q)
Dimensions 1-9/16″x4-1/2″x1-3/16″ (39x115x30mm)
IP Rating Weatherproof IP65
Switch Type N.O./N.C.
Contact Rating [email protected]
Operating Temperature -4°~140° F (-20°~60° C)

Product Information Sheet (PI)

Manual
