SD-7175SGEX1Q

Multicolor Illuminated Vandal-Resistant RTE Plate – Slimline

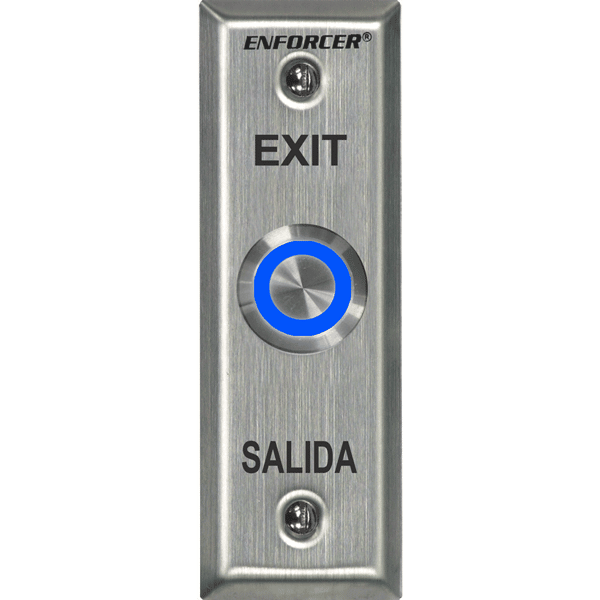

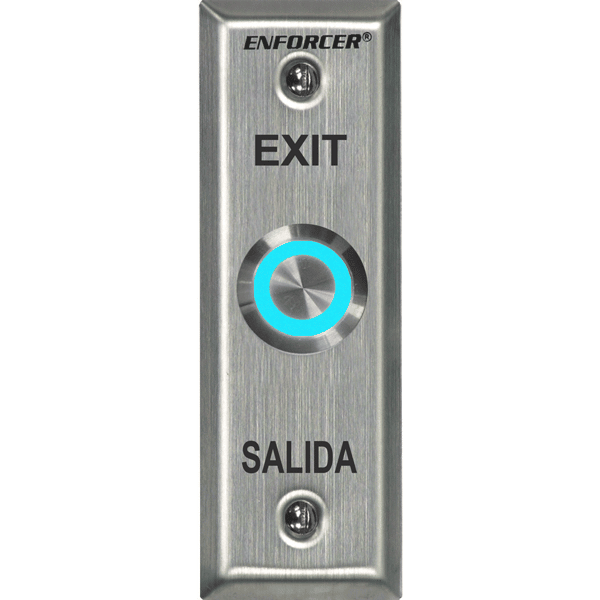

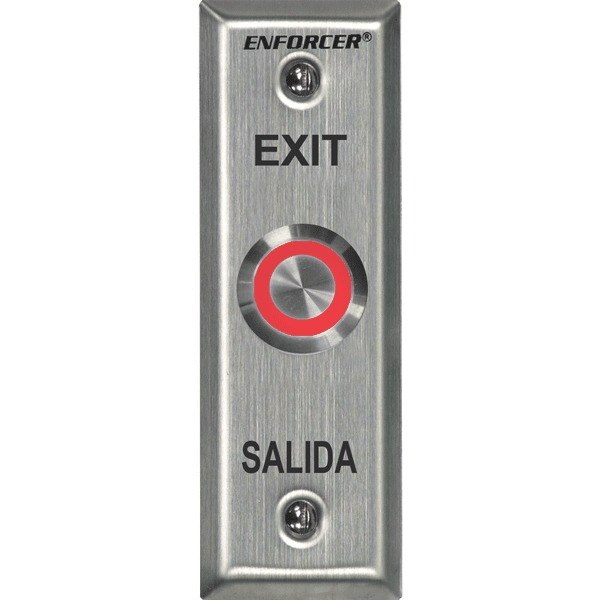

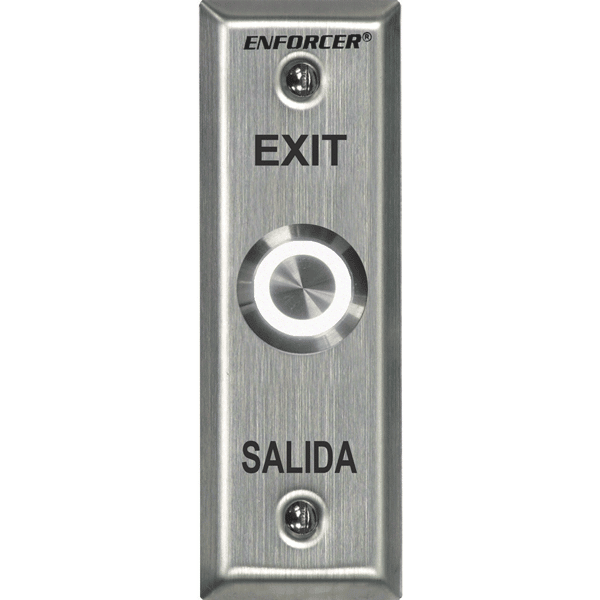

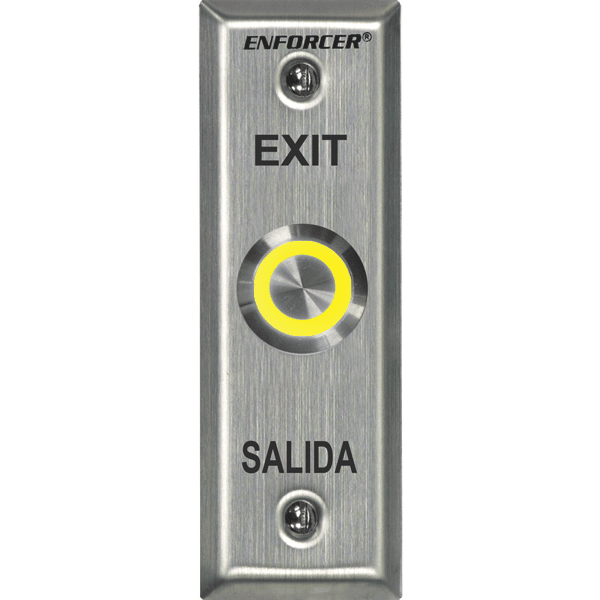

The ENFORCER Multicolor Illuminated Vandal-Resistant Request-to-Exit Plates come with seven field-selectable LED colors, practical for a wide range of indoor/outdoor applications. The ENFORCER Multicolor Illuminated Vandal Resistant Request-To-Exit Plates use a stainless steel vandal resistant button, illuminated by a circular perimeter LED. The LED color is easily selectable during installation to not only red, green, or blue, but also yellow, cyan, magenta, or white.

  • product_icon
  • product_icon
  • product_icon
  • ETL, Conforms to UL Std. 294
  • Illuminated vandal-resistant ø1″ (ø25mm) pushbutton
  • 12VDC LED – supports 24VDC with included 1kΩ, 1/4W resistor
  • Field-selectable LED color: red, green, blue, magenta, yellow, cyan, or white
  • NO/NC (DPST) switch
  • Switch contact rating: 20A@24VAC / 1A@24VDC
  • Switch is weatherproof (IP65) for outdoor use
  • “EXIT” and “SALIDA” silk-screened on plate
Faceplate Brushed stainless, slimline
Button Vandal resistant with multi-color circular perimeter LED
LED colors Red, green, blue, magenta, yellow, cyan, or white
Operating voltage 12/24 VDC
Contact rating 20A@24VAC / 1A@24VDC
Electrical configuration DPST
IP rating Weatherproof IP65
Operating temperature -13°~131° F (-25°~55° C)
Dimensions 1-1/2″x4-1/2″x1-3/16″ (38x114x30 mm)
Weight 2-oz (58g)

Product Information Sheet (PI)

Download File

Manual

Download File
