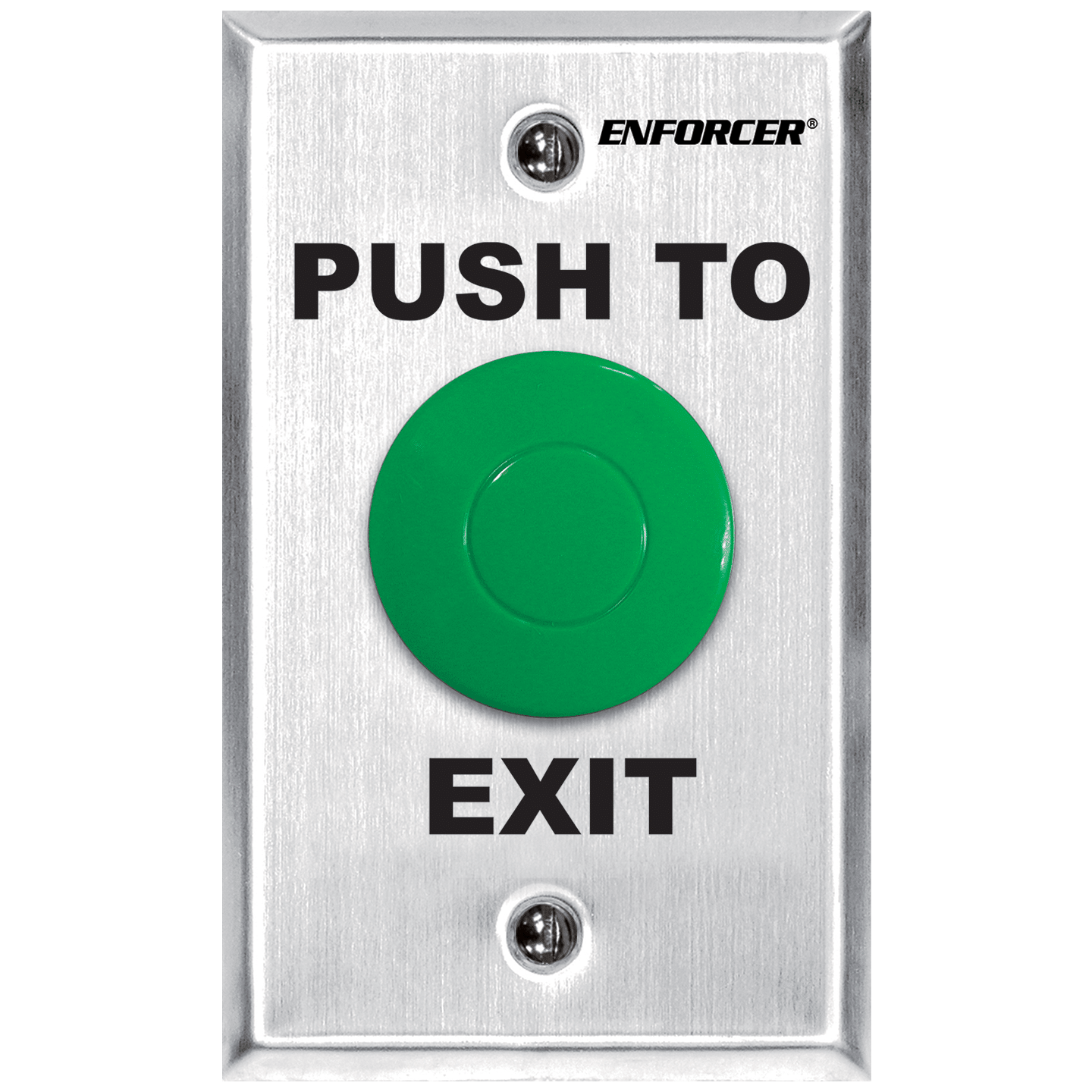

Weather-Resistant Mushroom-Cap RTE Plate, “Push To Exit,” SPDT

SD-7201GC-PEQ

Weather-Resistant Mushroom-Cap RTE Plate, “Push To Exit,” SPDT

The ENFORCER Weather-Resistant Mushroom-Cap RTE Plates are ideal for many outdoor access situations, with a 1-1/2″ (38mm) diameter mushroom-cap (green or red), single-gang faceplate and NO/NC contact rated 50A@24VAC.

  • product_icon
  • product_icon
  • ETL, Conforms to UL Std. 294
  • Stainless-steel face-plate
  • “Push to Exit” silk-screened on plate
  • Fits into standard single-gang box
  • Green mushroom cap push button
  • NO/NC contact rated 50A@24VAC
Contact Rating50A@24VAC
FaceplateBrushed stainless steel
Destructive attack levelLevel I
Line securityLevel I
Endurance levelLevel I
Standby powerLevel I
Built-in TimerNo
IP RatingIP65 Weatherproof
Operating temperature-40°~167° F (-40°~75° C)
Dimensions4-1/2″x2-3/4″x2-3/4″ (114x70x70 mm)
Weight3.7-oz (105g)
Product Information Sheet (PI) (pdf, 328KB)
Download
Manual (pdf, 219KB)
Download
