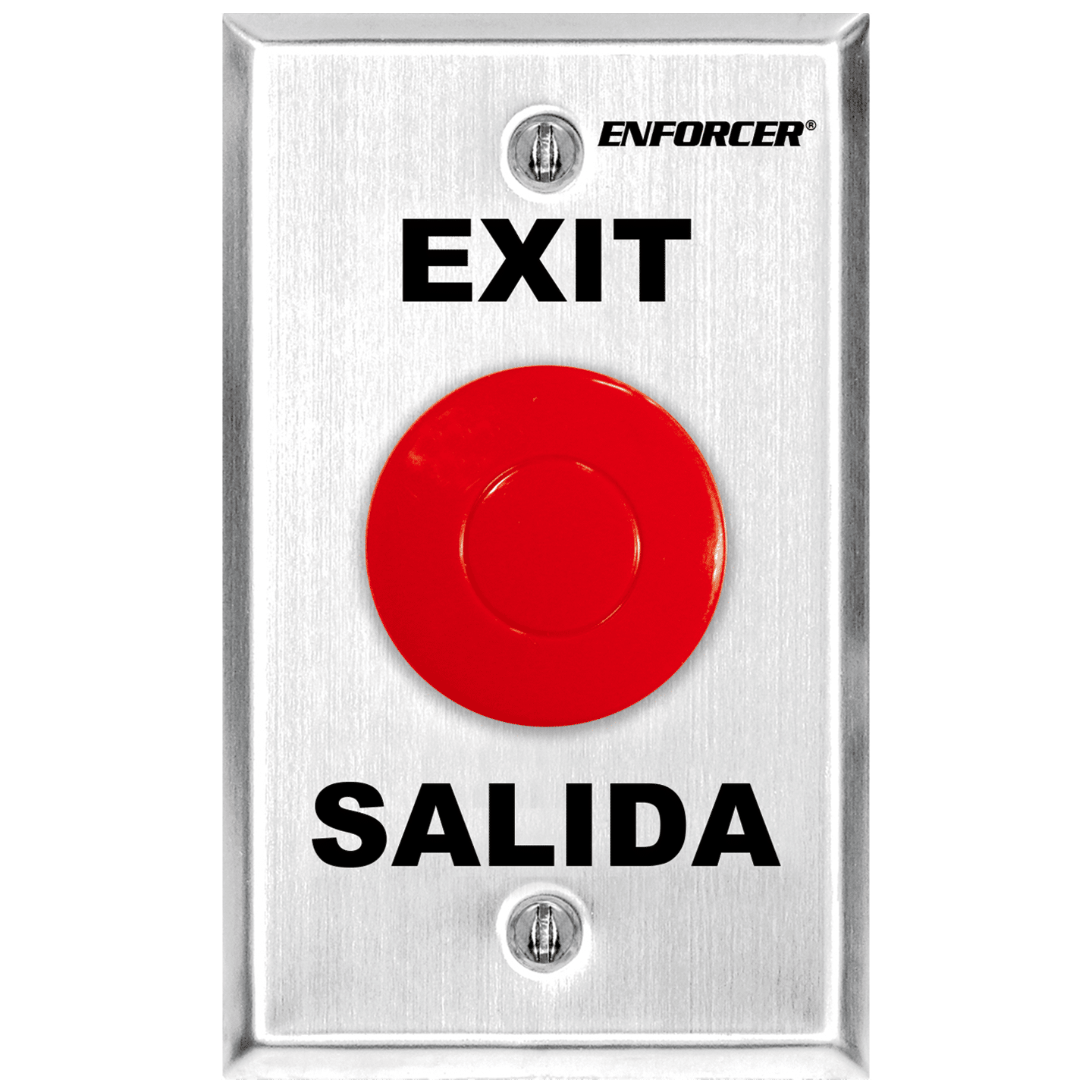

SD-7201RCPE1Q

Weather-Resistant Mushroom-Cap RTE Plate, “Exit” & “Salida,” SPDT

The ENFORCER Weather-Resistant Mushroom-Cap RTE Plates are ideal for many outdoor access situations, with a 1-1/2″ (38mm) diameter mushroom-cap (green or red), single-gang faceplate and NO/NC contact rated 50A@24VAC.

  • product_icon
  • product_icon
  • ETL, Conforms to UL Std. 294
  • Stainless-steel face-plate.
  • “Exit” and “Salida” silk-screened on plate.
  • Fits into standard single-gang box.
  • Red mushroom cap push button.
  • NO/NC contact rated 50A@24VAC.
Contact Rating 50A@24VAC
Faceplate Brushed stainless steel
Destructive attack level Level I
Line security Level I
Endurance level Level I
Standby power Level I
Built-in Timer No
IP Rating IP65 Weatherproof
Operating temperature -40°~167° F (-40°~75° C)
Dimensions 4-1/2″x2-3/4″x2-3/4″ (114x70x70 mm)
Weight 2.2-oz (62g)

Production Information Sheet (PI)

Download File

Manual

Download File
