SD-72231-6MQ

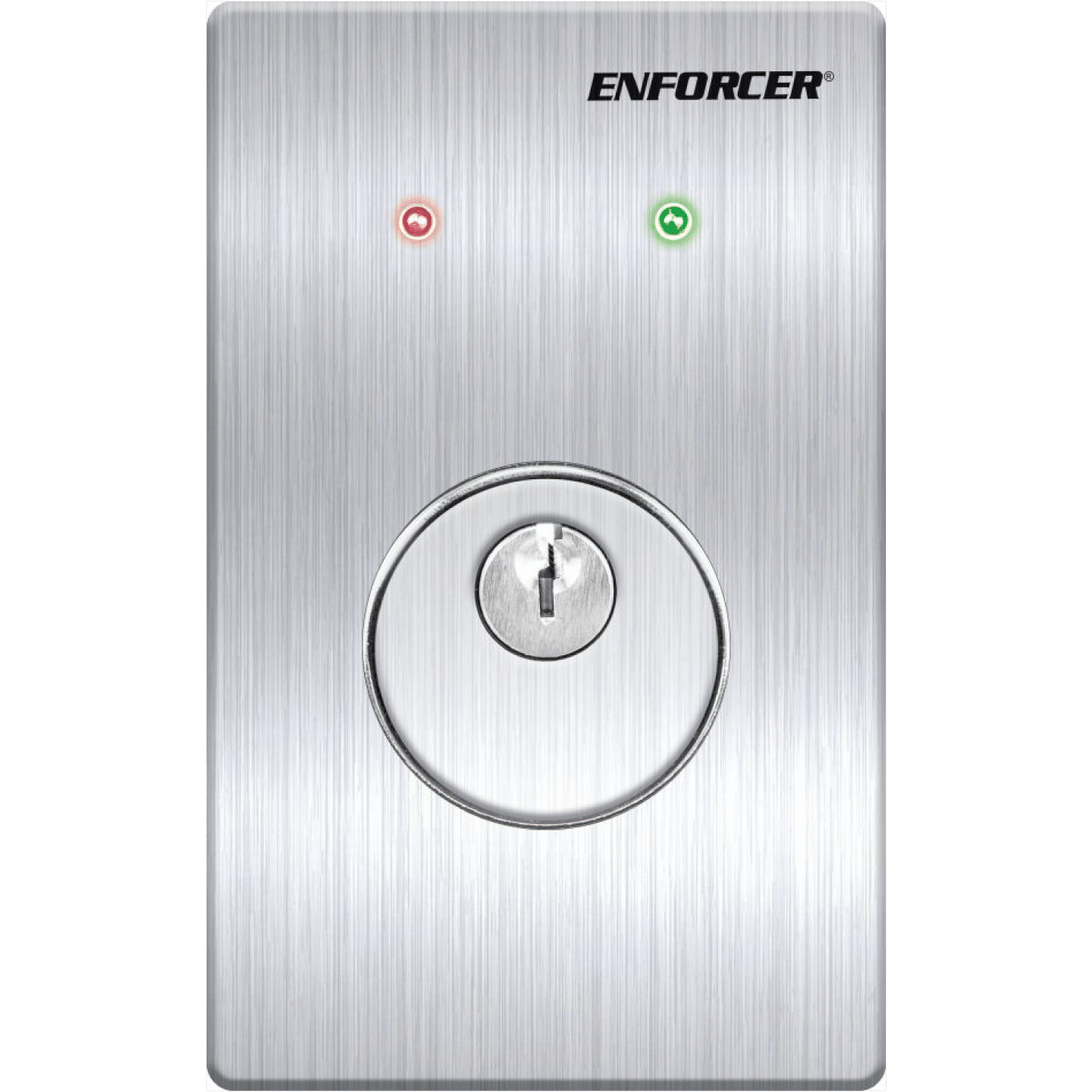

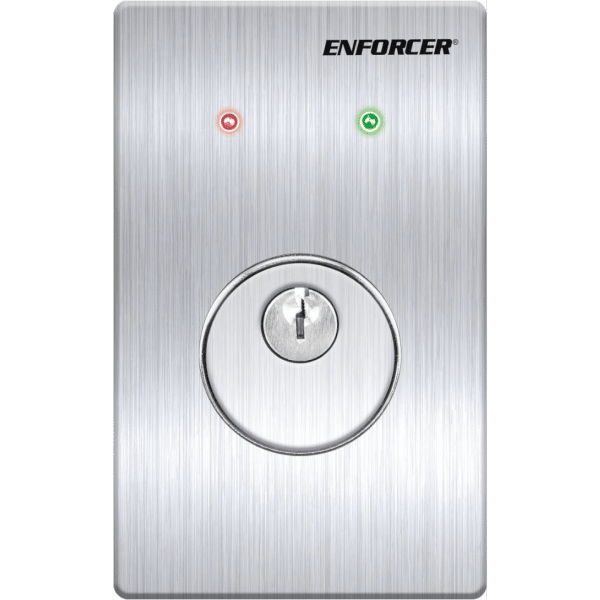

Mortise Cylinder Key Switch with LEDs – Maintained

If a keypad or proximity card reader fails to activate an electronic lock, the user can switch between normally closed (N.C.) and normally open (N.O.) contacts using the ENFORCER Single-Gang Mortise Cylinder Key Switches with LED, forcing the door to open. This acts as a backup for access control systems, so that the system does not rely on the integrity of a single device.

  • product_icon
  • Keyed mortise cylinder (2 keys included)
  • Mortise cylinder removable for ease of keying
  • Red (standby) and green (triggered) LEDs
  • Flush mount with vandal-resistant security screws
  • Chrome-plated aluminum back plate fits to single-gang back box
  • Stainless steel front cover conceals mounting screws
  • DPDT, 25A@24VAC contact rating

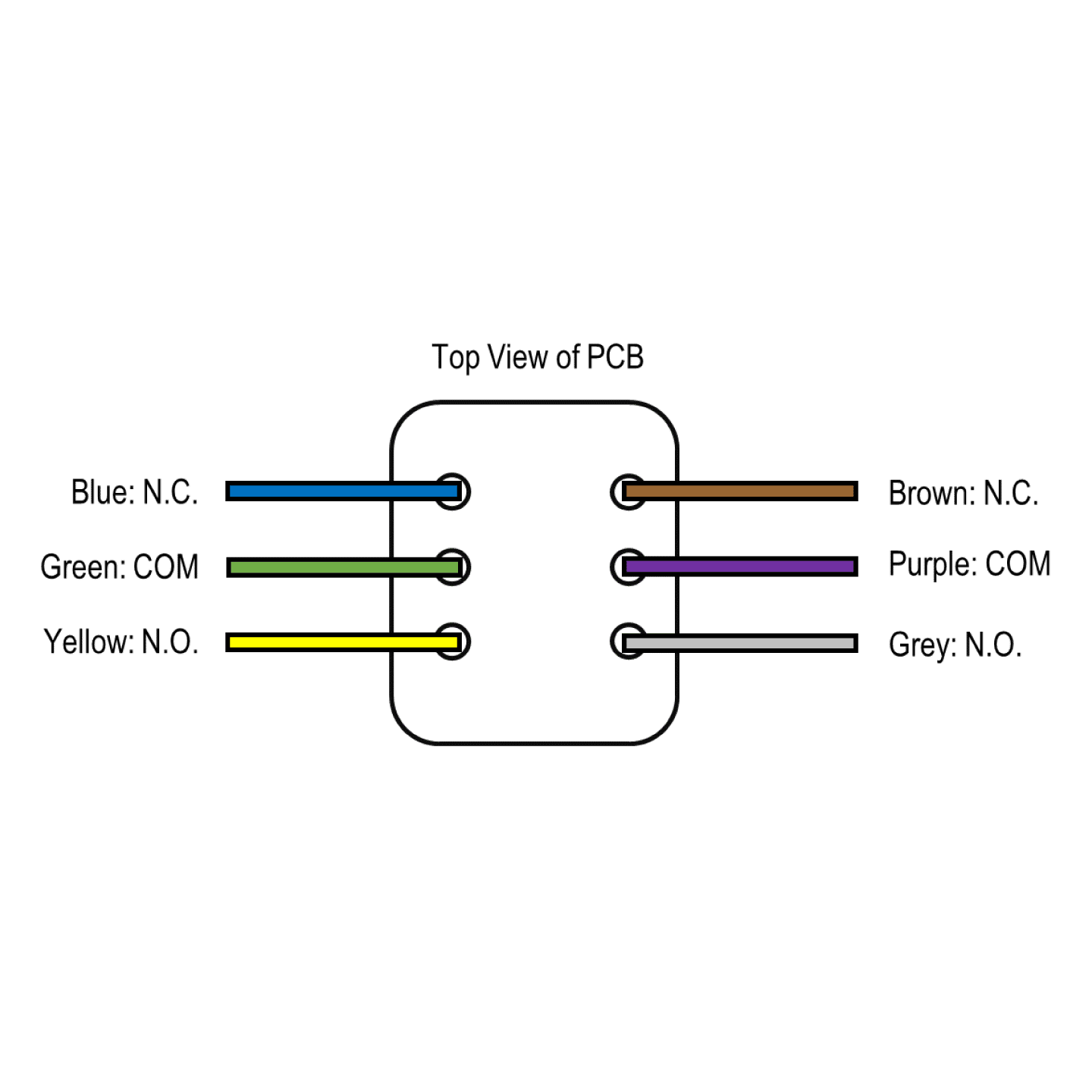

  • Color-coded wires for easy wiring
  • Maintained output
Output Maintained
Switch type DPDT Switch
LED Indicators Red (standby) and green (triggered)
Contact switch 25A@24VAC, NO/NC
Dimensions 2-3/4″x4-1/2″x1-7/16″ (69x114x37 mm)

Product Information Sheet (PI)

Download File

Manual

Download File

Comparison Chart

Download File
