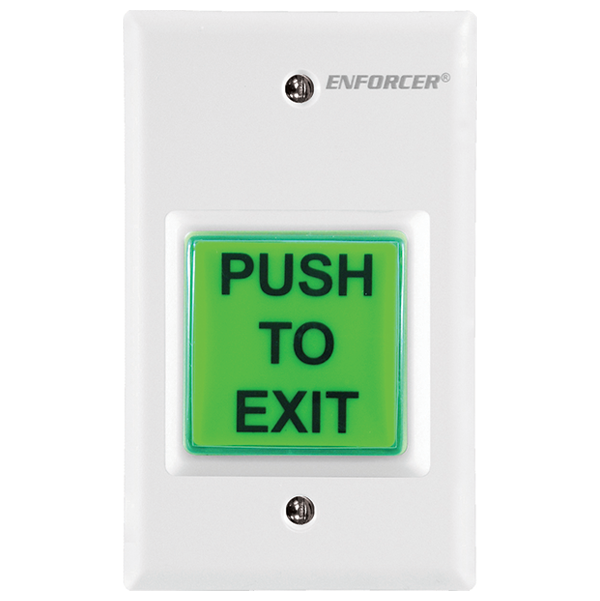

Illuminated RTE Single-Gang Wall Plate, Plastic White Plate

Discontinued Product: Replaced by SD-7202GC-PEQ or SD-7217GWQ

  • product_icon
  • Large illuminated pushbutton with caption “PUSH TO EXIT”
  • Message language can be easily switched between English, Spanish, and French with 3 included interchangeable plates
  • Pushbutton rated 50A@24VAC (3A@24VDC for SD-7202GC-PTQ)
  • Includes five colored 12-inch wire leads with easy-to-attach spade lugs for fast installation
  • LED Gives over 50,000 hours of illumination
  • 12~24 VDC: No resistors required
  • Includes stainless-steel single-gang plate
  • White plastic single-gang plate
Operating Voltage 12 or 24VDC
Current Draw 50A@24VAC
Operating Temperature -40°~167° F (-40°~75° C)
Material White plastic
Dimensions 4-1/2” x 2-3/4” x 2-3/4” (11.4 x 70 X 70mm)
Weight 2.2-oz (62g)

Product Information Sheet (PI)
