SD-7275SGEX1Q

Multicolor Illuminated Vandal-Resistant RTE Plate – Single-gang

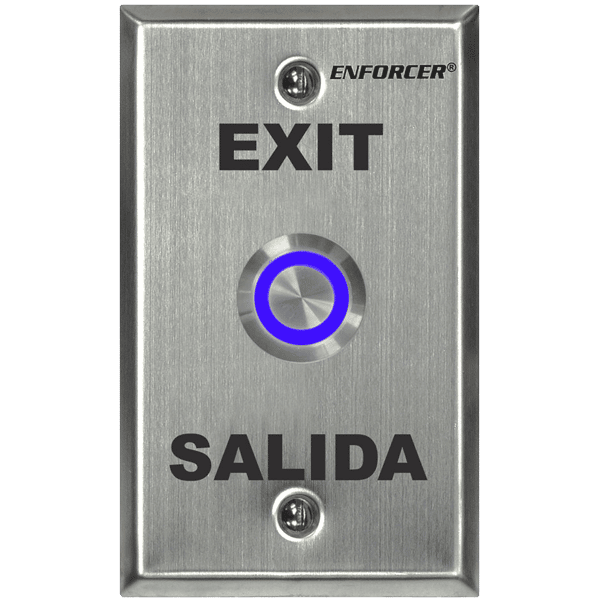

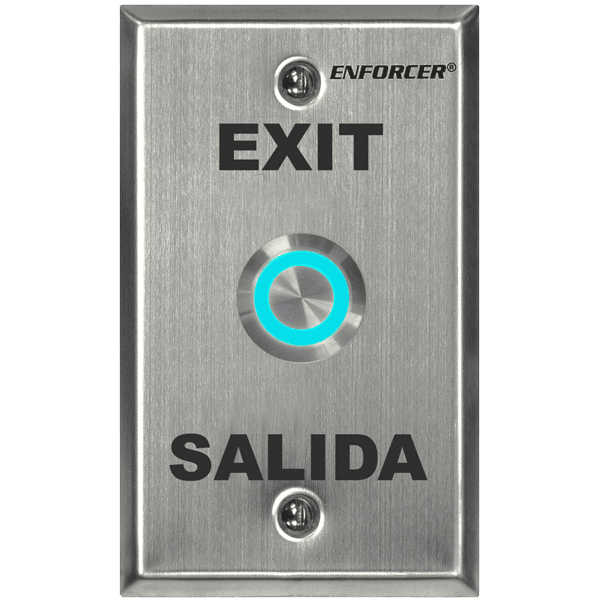

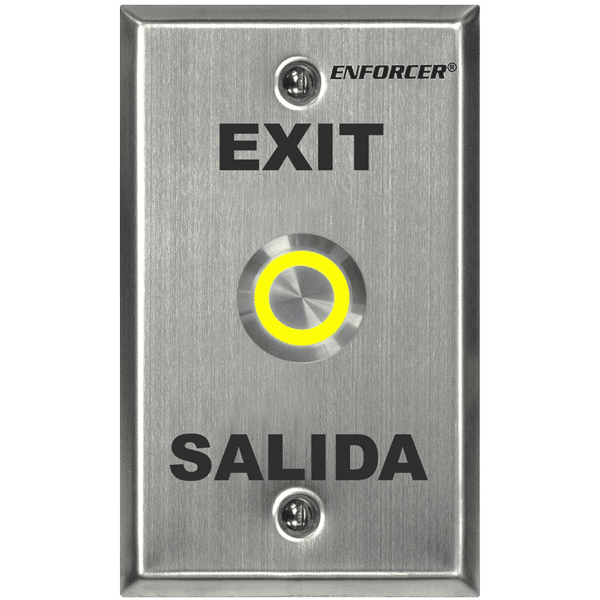

The ENFORCER Multicolor Illuminated Vandal Resistant Request-To-Exit Plates use a stainless steel vandal resistant button, illuminated by a circular perimeter LED. The LED color is easily selectable during installation to not only red, green, or blue, but also yellow, cyan, magenta, or white.

  • product_icon
  • product_icon
  • Illuminated vandal-resistant ø1″ (ø25mm) pushbutton
  • 12VDC LED – supports 24VDC with included 1kΩ, 1/4W resistor
  • Field-selectable LED color: red, green, blue, magenta, yellow, cyan, or white
  • NO/NC (DPST) switch
  • Switch contact rating: [email protected] / [email protected]
  • Switch is Weatherproof IP65 rated for outdoor use
  • “EXIT” and “SALIDA” silk-screened on plate
  • Slimline version also available (SD-7175SGEX1Q)
Faceplate Brushed stainless, Single-gang
Button Vandal resistant with multi-color circular perimeter LED
LED colors Red, Green, Blue, Magenta, Yellow, Cyan, or White
Operating voltage 12/24 VDC
Contact rating [email protected] / [email protected]
Electrical configuration DPST
IP rating Weatherproof IP65
Operating temperature -13°~131° F (-25°~55° C)
Dimensions 2-3/4″x 4-1/2″x 1-3/16″ (70x114x30 mm)
Weight 3.1-oz (88g)

Product Information Sheet (PI)

Download File

Manual

Download File
