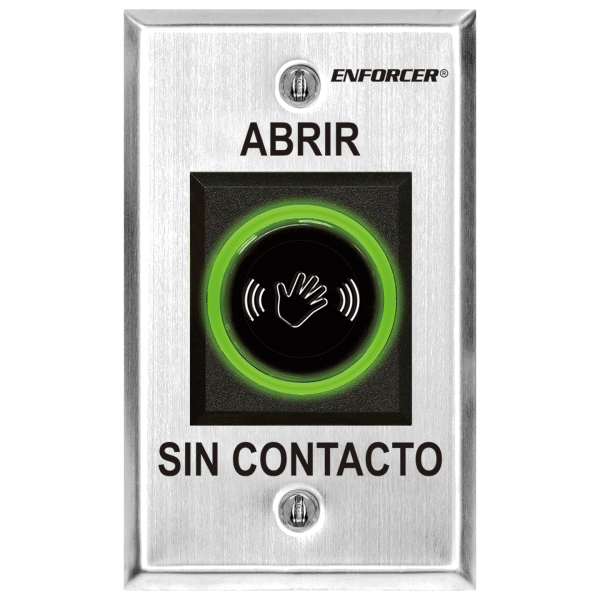

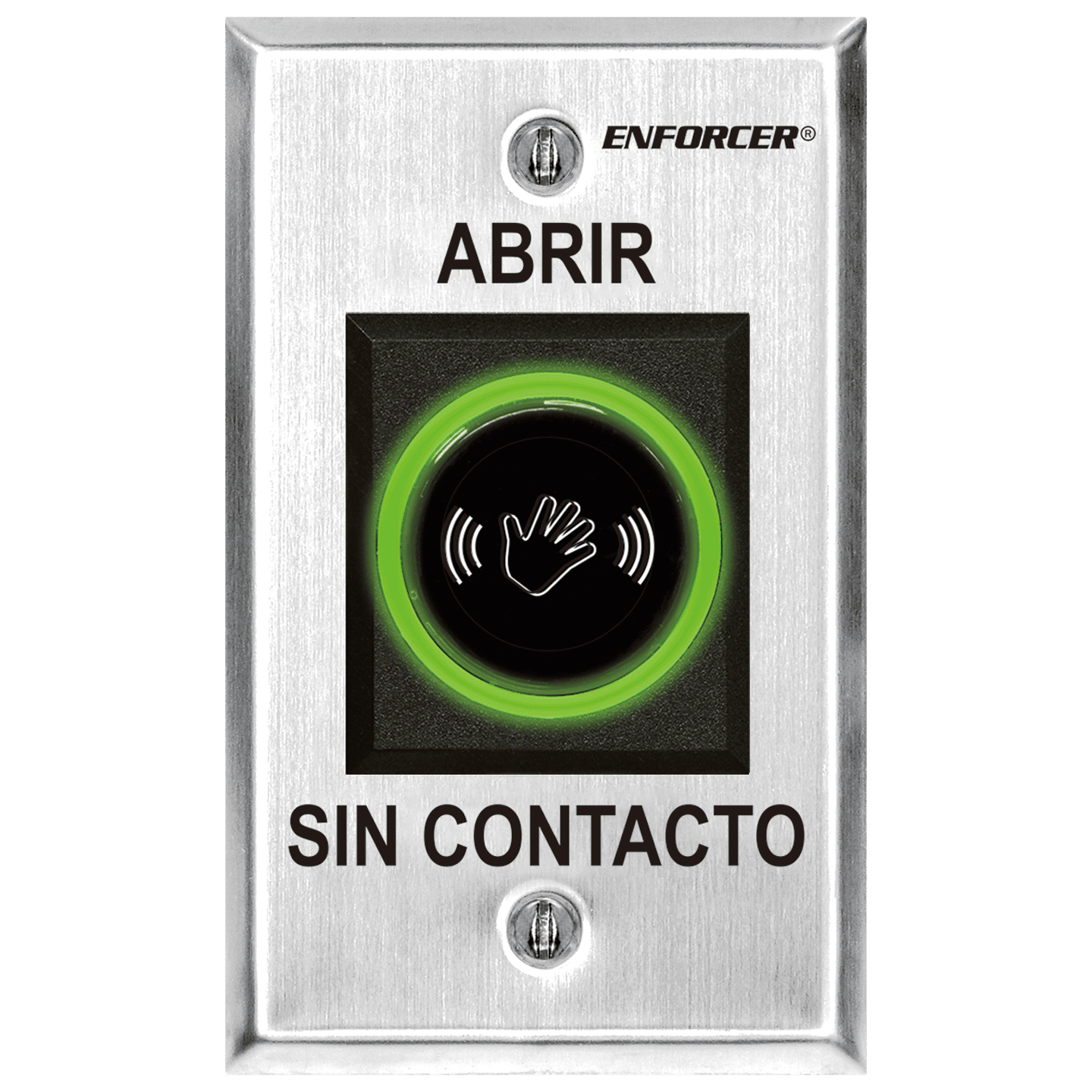

SD-927PKC-NSQ

Wave-to-Open Sensor – Spanish

The ENFORCER Wave-To-Open Sensor uses IR technology to request egress from a protected area or activate a device with the simple wave of a hand. Since no-touch is required, this sensor is ideal for use in hospitals, clinics, labs, clean rooms (to reduce the risk of contamination), schools, factories, or offices.

  • product_icon
  • product_icon
  • product_icon

  • Conforms to UL294
  • Dual voltage, 12~24 VAC/VDC
  • Range adjustable from 2-3/8″~8″ (6~20 cm)
  • Stainless steel single-gang plate
  • 3A relay, adjustable from 0.5~30 sec, toggle, or as long as hand is near the sensor
  • Quick connect screw-less terminal block
  • LED illuminated sensor area for easy identification
  • Selectable LED colors (turns from red to green or green to red) when activated
Type Wave-to-open Sensor
Current Draw [email protected]
Sensing Range Adjustable, 2-3/8″~8″ (6-20 cm)
Operating Voltage 12~24 VAC/VDC
Reaction time 10mS
LEDs – Red Triggered
LEDs – Green Standby
Relay Type Form C (NO/NC/COM) [email protected]
Output Time Adjustable from 0.5~30 sec, toggle, or as long as hand is near the sensor
Switching Capacity [email protected]
Operating Temperature -4°~131° F (-20°~55° C)
Dimensions 4-1/2″ x 2-3/4″ x 1-5/16″ (115 x 70 x 33.5 mm)
Weight 3oz (85g)
