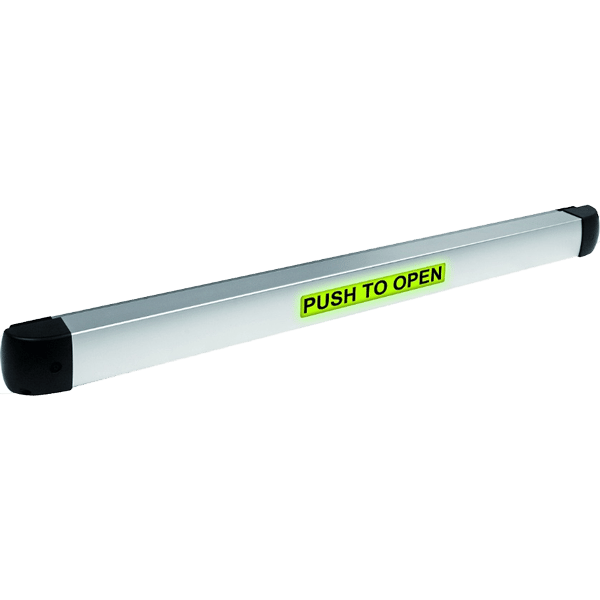

Illuminated Push-to-Open Bar

The ENFORCER Illuminated Push-to-Open Bar works with an external electric strike or maglock to provide egress from a protected area. It can work in stand-alone mode or as part of an access control system, but also can be locked open by key. Buzzer, output timing, and LED function and colors are also customizable.

  • product_icon
  • product_icon
  • Provides convenient on-door egress
  • LED makes it easy to see the status
  • Can be stand-alone or connected to an access control system
  • Dogging – standard dogging with hex key
  • For 36″ doors – actual length: 337/16” (85cm)
  • Can be cut to fit smaller doors, minimum 235/8” (60cm)
  • Two built-in non-latching (momentary), dual-contact switches (NO/NC/COM) rated at ≤5A@230VAC, adjustable 0.5~60 sec
  • Large LED shows red in standby and green when triggered, but is programmable red/green/blue by an access control panel
  • Blinking LED and buzzer programmable for relock warning
  • Built-in buzzer indicates unlocked (selectable, up to 92dB)
Operating voltage 12~24 VDC
Power consumption 180mA@12VDC, 140mA@24VDC (max.)
Contact load ≤5A@230VAC
Outputs NO/NC/COM x2
Trigger duration 0.5~60 seconds (adjustable) or dogged open
Buzzer Up to 92dB (adjustable)
LED Indicators – Colors Stand-alone red/green, Controlled red/green/blue
LED Indicators – Size 8-1/4″x1″ (210×25 mm)
Door width 36″ (91.4cm), minimum 23-5/8″ (60cm)
Door Size 32°~150° F (0°~70° C)
Dimensions 33-7/16″x2-3/8″x2-3/8″ (850x61x61 mm)
Weight 4-lb 10-oz (2.1kg)

Product Information Sheet (PI)
