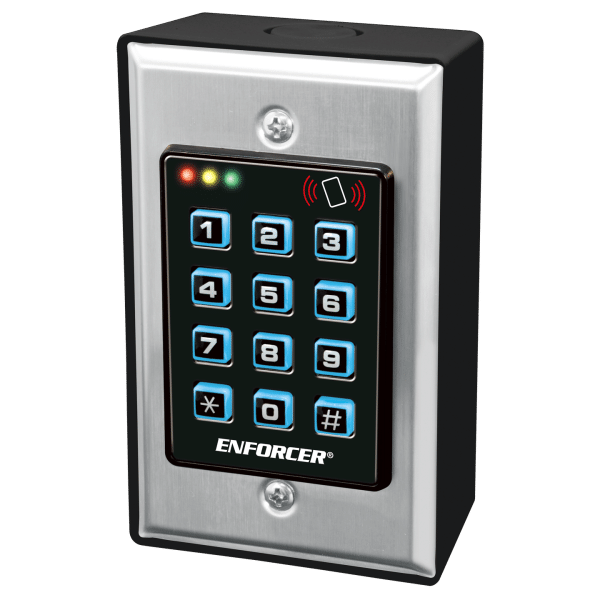

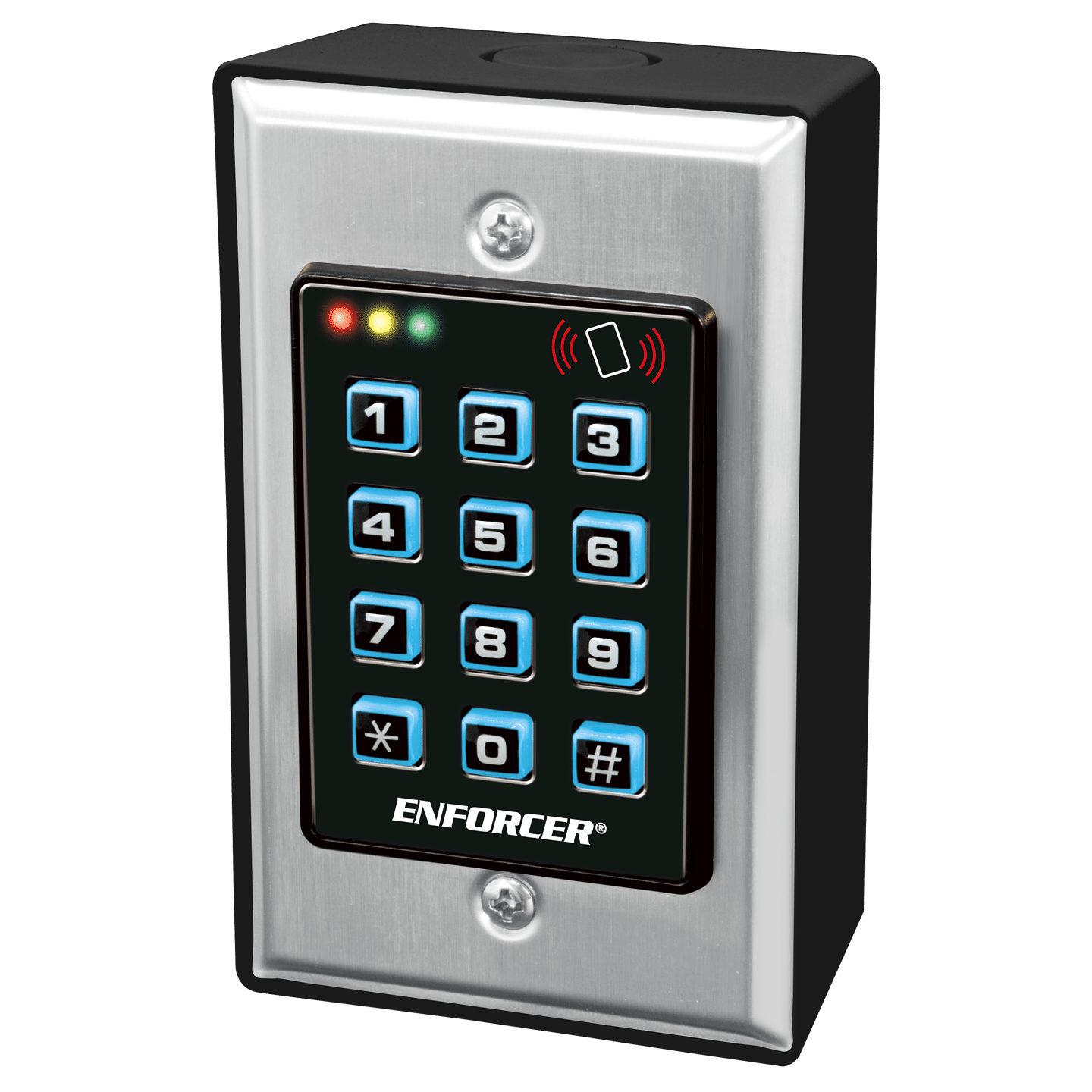

Indoor Illuminated Access Control Keypad with Proximity Reader

  • product_icon
  • product_icon
  • Built-in proximity card reader
  • 12~24 VAC/VDC Auto-adjusting operation
  • Up to 1,000 possible user codes/cards for output 1, 100 for output 2, and 100 for output 3
  • Up to 50 possible visitor codes for one-time or limited-time use (1~99 hours)
  • Up to 50 duress codes for output 1, 10 for output 2, and 10 for output 3
  • Output 1: Form C relay, 1A@30VDC max. / output 2: Form C relay, 1A@30VDC max. / output 3: transistor ground, 100mA@24VDC
  • Outputs 1, 2, and 3 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
  • Tamper output N.C. Dry contact, 50mA@24VDC max.
  • All features are programmed directly from the keypad; no need for an external programmer
  • EEPROM Memory protects programmed information in case of power loss
  • Duress code triggers a silent alarm if a user is forced to open the door under duress
  • Egress input lets users exit the premises without keying in the code
  • Keypad illuminates when a button is pressed, programmable for FULL or AUTO in standby
  • Mounts to a standard single-gang back box (surface-mount back box included)
  • Keypad active or alarm output selectable via jumper
  • Interlocking input for connecting to a second keypad
  • Door sensor input for anti-tailgating
  • Data I/O terminal for split-series setup providing added security
  • Expansion port for future optional features
Operating Voltage 12~24 VAC/VDC
Current Draw Standby: 66mA@12VDC
Keypress: 93mA@12VDC
Output 1 active: 99mA@12VDC
Output 1 & 2 active: 126mA@12VDC
Output 1, 2 & 3 active: 127mA@12VDC
Total max. current draw: 160mA@12VDC
Outputs #1 Form C: 1A@30VDC
#2 Form C: 1A@30VDC
#3 Transistor ground: 100mA@24VDC
K or A: 100mA@24VDC
Duress: 100mA@24VDC
Interlock: 100ma@24VDC
Inputs Egress: N.O. Ground
Door sensor: N.C. Ground
Door inhibit: N.O. Ground
Proximity Reader Frequency 125kHz (EM125)
Proximity Reader Sensing Distance 1-1/2” (38mm)
Operating Humidity 5~95% Non-condensing
Operating Temperature -4°~158° F (-20°~70° C)
Dimensions (including back box) 4-5/8″x2-7/8″x1-15/16″ (117x73x49 mm)
Weight 6-oz (170g)
