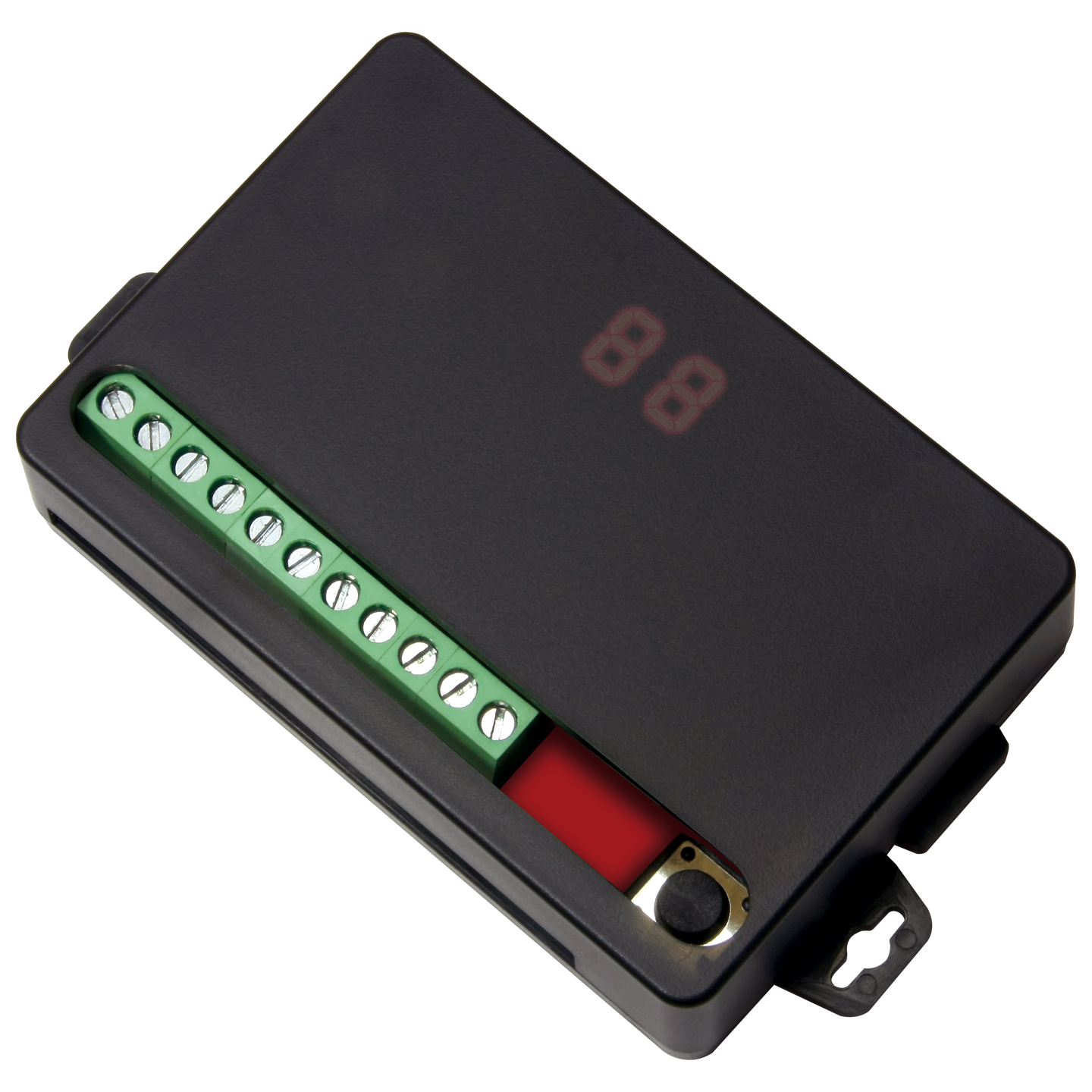

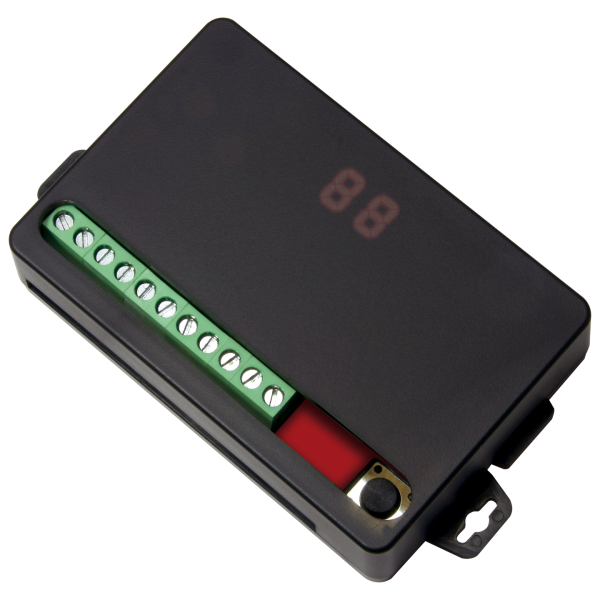

3-Channel RF Receiver

The ENFORCER 3-Channel RF receivers meet the growing demand for multi-channel receivers with multiple independently controlled output modes and can be used to remotely control a variety of devices including garage doors, lights, motorized gates, lifts, or others. Now also dual frequency, they are even more flexible and compatible with all ENFORCER transmitters of the same frequencies, including both fixed and code-hopping CODEBUMP™ variants.

  • product_icon
  • product_icon
  • Five programmable relay output modes – 0.5~99-second timed pulse, 1~99-minute timed pulse, toggle, latch, follow (validity)
  • Dual frequency operation – 315MHz is standard operation. Will also do 433.92MHz with use of optional Extended Range Antenna (SK-93ERSD)
  • Range*: Up to 500ft (150m), or up to 1,000ft (300m) with optional Extended Range Antenna (SK-91ERSD)
  • Up to 60 transmitter button codes can be learned per channel
  • Alphanumeric display indicates learn mode entered, transmitter learned, memory cleared, RF reception, and relay output mode
  • Display hidden in semi-transparent case until lit
  • Pushbutton programming, no need to cut jumpers
  • Compatible with all ENFORCER transmitters of the same frequency
  • 433.92MHz models are also available. Contact SECO-LARM for details

*Operating range varies greatly depending on the installation and operating environment

Operating frequency 315MHz*
Memory capacity 60 per channel
Operating voltage 10~24 VAC/VDC
Operating current Standby: 16mA@12VDC, 12mA@24VDC
Active: 60mA@12VDC, 50mA@24VDC (both per channel)
Relay output Type: Independent, sequence, access control
Modes: 1~99 sec momentary (default, 1s) 1~99 min momentary, toggle, latch, follow (validity)
Relay contacts Number: 3
Rating: Form C 10A@14VDC
Connectors Screw terminals, +, -, with NO/NC/COM per relay
Digital display 2-digit, 7-segment LED
Operating humidity 5~95%, non-condensing
Operating temperature 32°~167° F (0°~75° C)
Dimensions 4-3/16″x7/8″x2-3/8″ (107x23x60 mm)

*Can simultaneously receive 433.92MHz signals with optional SK-93ERSD Extended Range Antenna
