E-942FC-1K3SQ

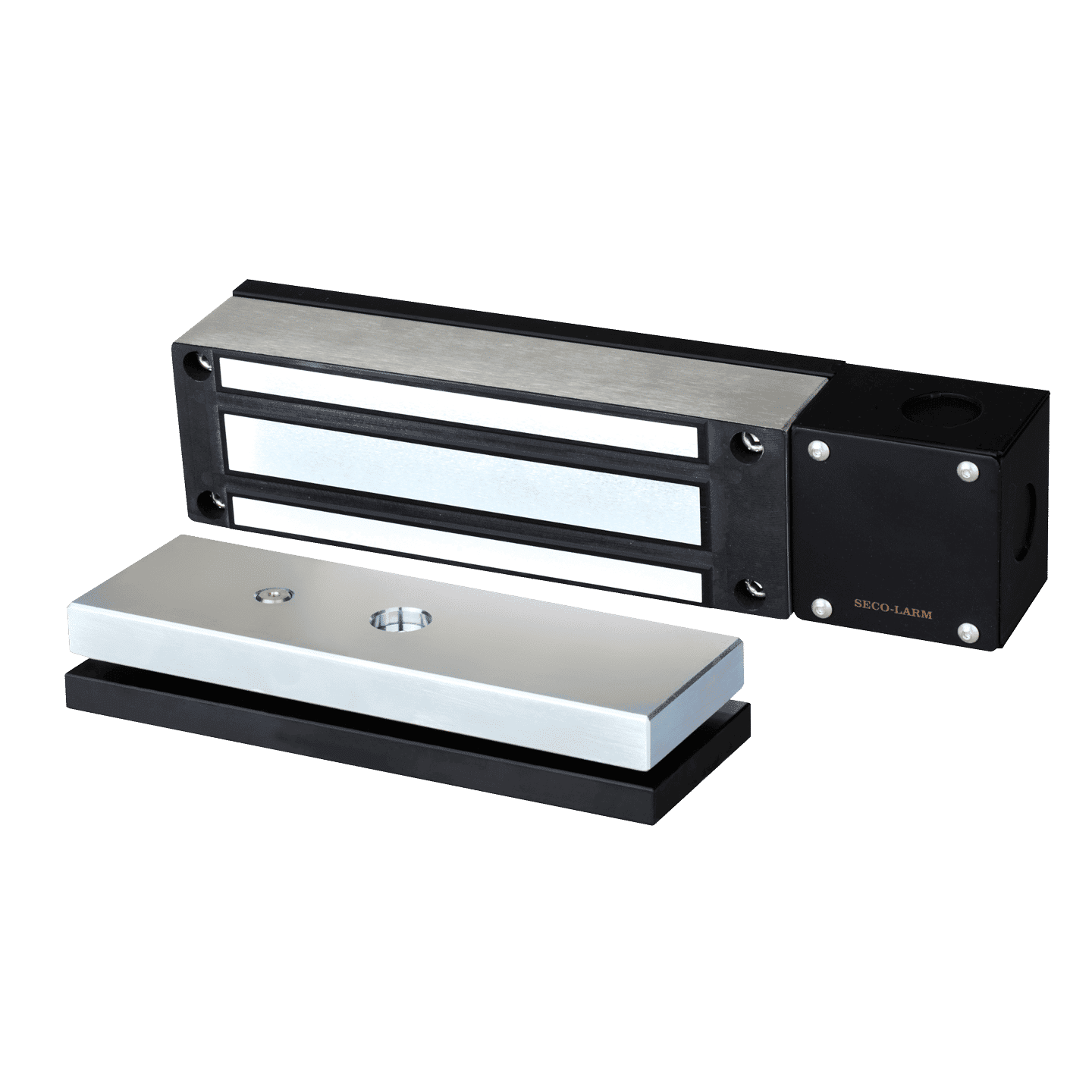

1,200-lb Electromagnetic Gate Lock, Face Mount, Weldable

Electromagnetic Gate Lock with brackets for armature and magnet. The E-942FC-1K3SQ  is primarily designed for swinging gates.

  • product_icon
  • product_icon
  • 1,200-lb (545 kg) Holding force
  • No residual magnetism
  • MOV Surge protection
  • Face mounting
  • For sliding or swinging gates
  • Weld or bolt brackets directly to the gate
  • Brackets are zinc-plated for corrosion resistance
  • Water- and vandal-resistant attractive stainless-steel black finish to match most gates
  • Maintenance-free, factory-sealed design
  • Fail-safe operation (releases if power is removed)
  • Waterproof (IP67) and vandal resistant for indoor and outdoor applications
  • Dual-threaded conduit fitting
  • Attractive stainless steel housing
  • Junction box with 4 knockouts
  • Complete mounting hardware for typical installations
  • Additional brackets available for easy mounting or atypical situations
  • 12/24VDC Selectable
  • Lifetime limited warranty*

*Warranty applies in the USA and Canada only. Contact SECO­LARM for details.

Holding Force 1,200-lb (544kg)
Operating Voltage 12VDC or 24VDC
Current Draw 500mA@12VDC, 250mA@24VDC
IP Rating IP67 Waterproof
Operating Temperature 14º~131º F (-10º~55º C)
Certification cUL, UL, CE, RoHS (magnetic lock only)
Weight 15.9-lb (7.75kg)
Maglock & Armature Weight (Approx.) 11-lb (5kg)
Bracket Weight (Approx.) 4.6-lb (2.1kg)
Product Information Sheet (PI) (pdf, 516KB)
Download
MANUAL (pdf, 331KB)
Download

The gate does not lock
  • Check that the wires are secure
  • Check that the power supply is connected and operational
  • Check that the unit is wired correctly
The gate locks, but can easily be forced open
  • Check that the electromagnet and armature plate are properly aligned
  • Check that the contact surfaces of the electromagnet and armature plate are clean and free from rust
  • Check the power leads with a meter, and make sure the correct voltage is present
Delay in gate releasing
  • The electromagnet is fitted with a metal oxide varistor to prevent interference, so do not install a second diode.
