E-942FC-1300

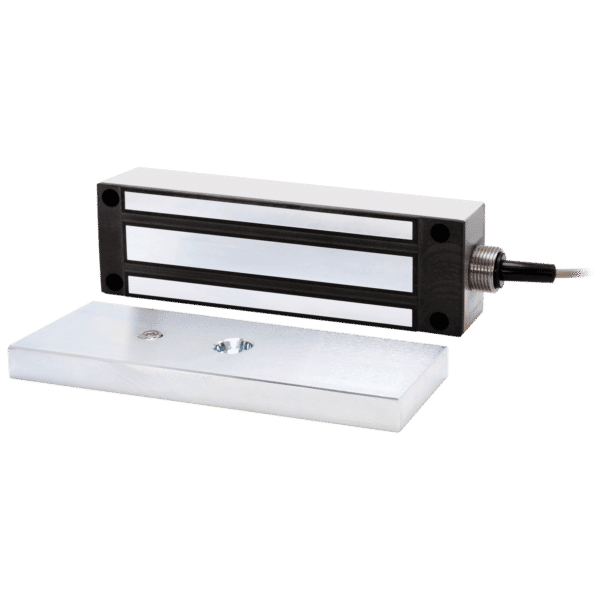

1,200-lb Electromagnetic Gate Lock, Face Mount, UL Listed

  • product_icon
  • product_icon
  • product_icon
  • 1,200-lb (545kg) Holding force
  • No residual magnetism
  • MOV Surge protection
  • Face-mount
  • For sliding or swinging gates
  • Can be mounted horizontally or vertically
  • For indoor and outdoor applications
  • Maintenance-free, factory-sealed design
  • Waterproof (IP67) and vandal resistant
  • Dual-threaded conduit fitting
  • Attractive stainless steel housing
  • 6.5-ft (2m) Hookup cord
  • Complete mounting hardware for typical installations
  • Additional brackets available for easy mounting or atypical situations
  • 12/24VDC Selectable
  • Multiple UL listings
        • UL10C Positive Pressure Fire Test – USA
        • UL10B Fire Test of Door Assemblies – USA
        • ULC-S104 Fire Test of Door Assemblies – Canada
  • Lifetime limited warranty*

*Warranty applies in the USA and Canada only. Contact SECO­LARM for details.

Holding Force 1,200-lb (544kg)
Operating Voltage 12VDC or 24VDC ±10%
Current Draw 500mA@12VDC, 250mA@24VDC
IP Rating Waterproof IP67
Operating Temperature 14º~131º F (-10º~55º C)

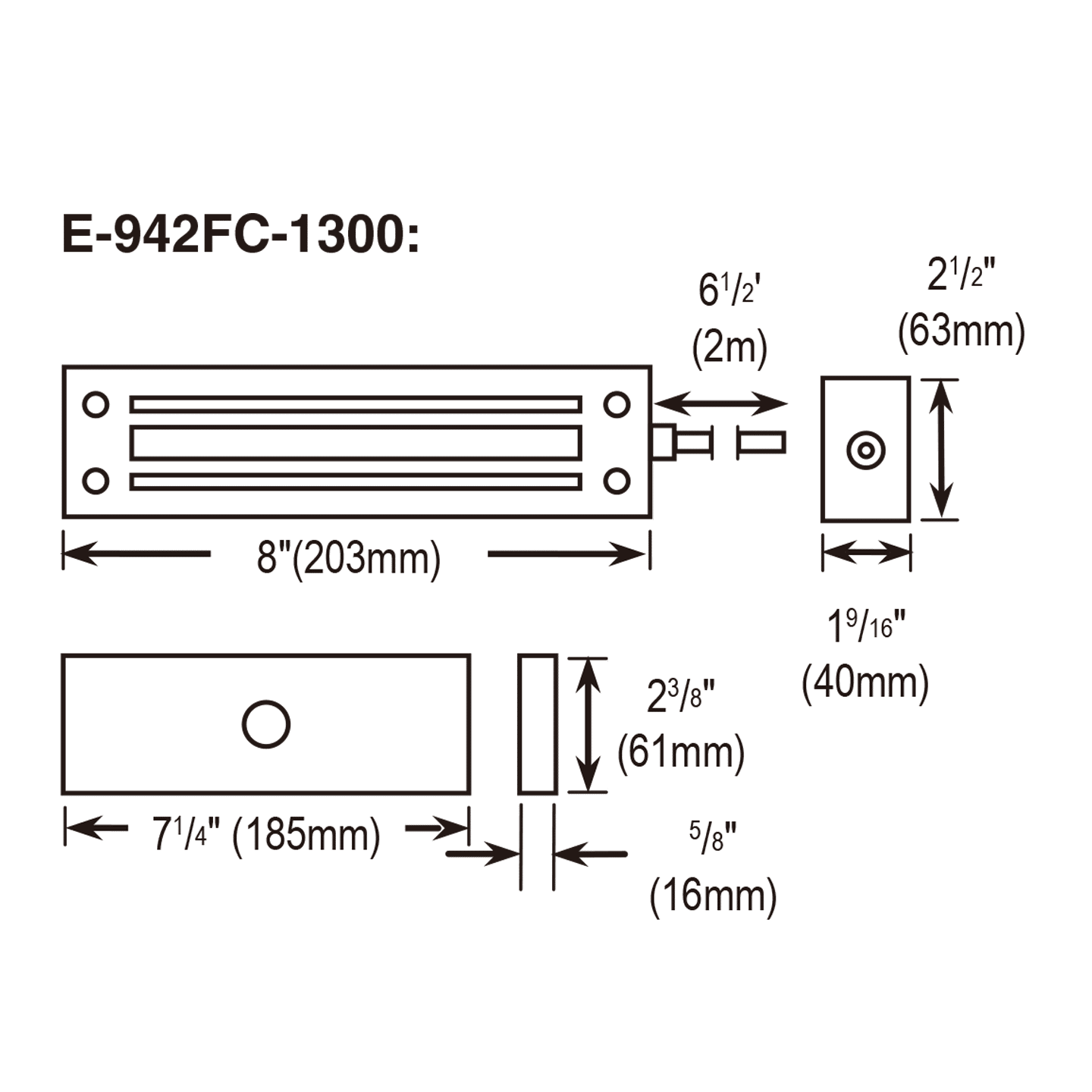

Electromagnet Dimensions 8″ x 2-1/2″ x 1-9/16″ (203x64x40 mm)
Armature Dimensions 7-1/4″x2-3/8″x5/8″ (185x60x16 mm)
Weight 11-lb (5kg)

Product Information Sheet (PI)

Download File

MANUAL

Download File

DIAGRAM

Download File
Gate does not lock
  • Check to make sure the wires are secure
  • Check that the power supply is connected
    and operating
  • Make sure the unit is wired correctly
Gate locks, but can easily be forced open
  • Make sure the electromagnet and armature plates are properly aligned.
  • Make sure the contact surfaces of the electromagnet and armature plates are clean and free from rust.
  • Check the power leads with a meter, and make sure 12VDC or 24VDC is present
Delay in gate releasing
  • The electromagnet is fitted with a metal oxide varistor to prevent interference, so do not install a second diode.
