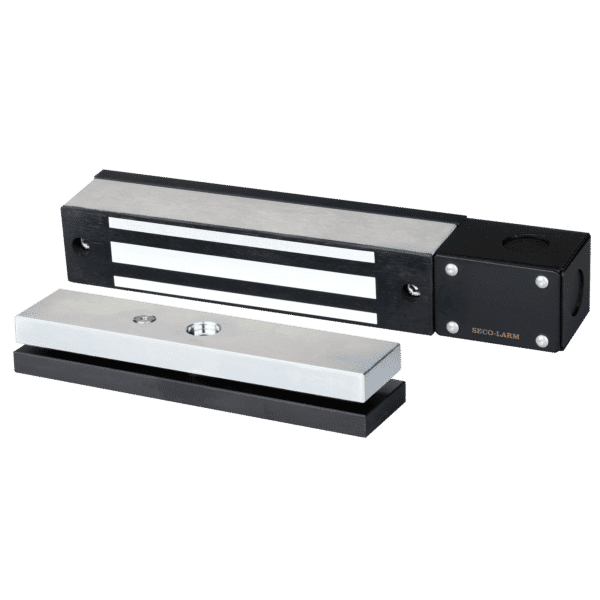

E-942FC-600SQ

600-lb Electromagnetic Gate Lock, Face Mount, Weldable

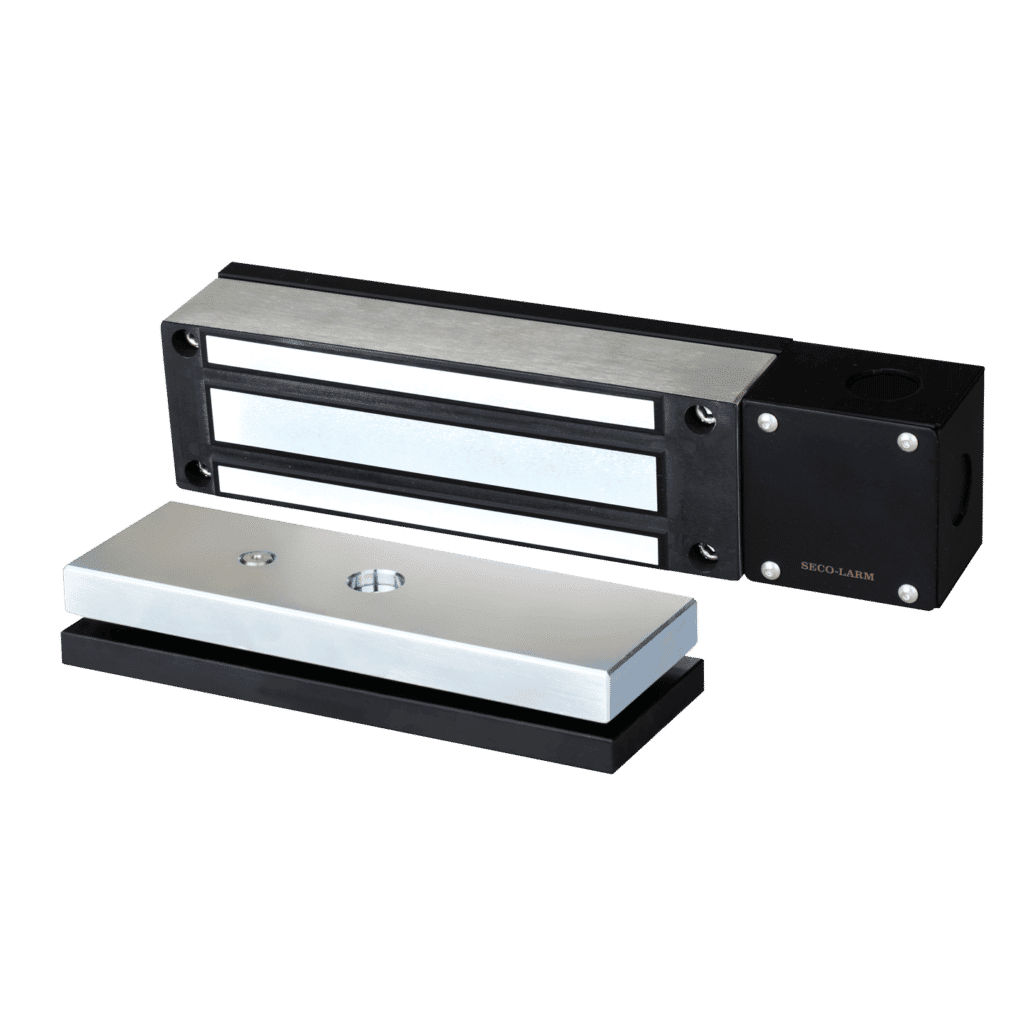

The SECO-LARM Electromagnetic Gate Lock with Weldable Bracket combines a strong and durable gate lock with a weldable bracket for ease of installation and greater security. With variants of both 1,200-lb (544kg) and 600-lb (272kg) holding force, it is suitable for almost any gate installation and can be installed horizontally as well as vertically.

  • product_icon
  • product_icon
  • 12/24 VDC
  • For use with nearly all types of outdoor sliding and swinging electric gates
  • Low current draw of 500mA@12VDC, 250mA@24VDC
  • Can be welded or bolted directly to gate and mounted horizontally or vertically
  • Includes a magnetic lock with brackets for armature and magnet, mounting hardware included
  • Zinc-plated brackets for corrosion resistance
  • Maintenance-free, factory-sealed design, IP67 Waterproof
  • Water- and vandal-resistant stainless-steel with black finish to match most gates
  • Fail-safe operation (releases if power is removed)
  • Four knockouts on junction box
  • Lifetime limited warranty*

*Warranty applies in the USA and Canada only. Contact SECO­LARM for details.

Operating Voltage 12/24VDC
Holding Force 600-lb (272kg)
Current Draw 500mA@12VDC, 250mA@24VDC
IP Rating IP67 Waterproof
Operating Temperature 14º~131º F (-10º~55º C)
Weight Maglock & Armature Weight (Approx.): 6.4-lb (2.9kg)
Bracket Weight (Approx.): 3.95-lb (1.8kg)
Total: 10.40-lb (4.75kg)

Product Information Sheet (PI)

Download File

MANUAL

Download File
The gate does not lock
  • Check that the wires are secure
  • Check that the power supply is connected and operational
  • Check that the unit is wired correctly
The gate locks, but can easily be forced open
  • Check that the electromagnet and armature plate are properly aligned
  • Check that the contact surfaces of the electromagnet and armature plate are clean and free from rust
  • Check the power leads with a meter, and make sure the correct voltage is present
Delay in gate releasing
  • The electromagnet is fitted with a metal oxide varistor to prevent interference, so do not install a second diode.
