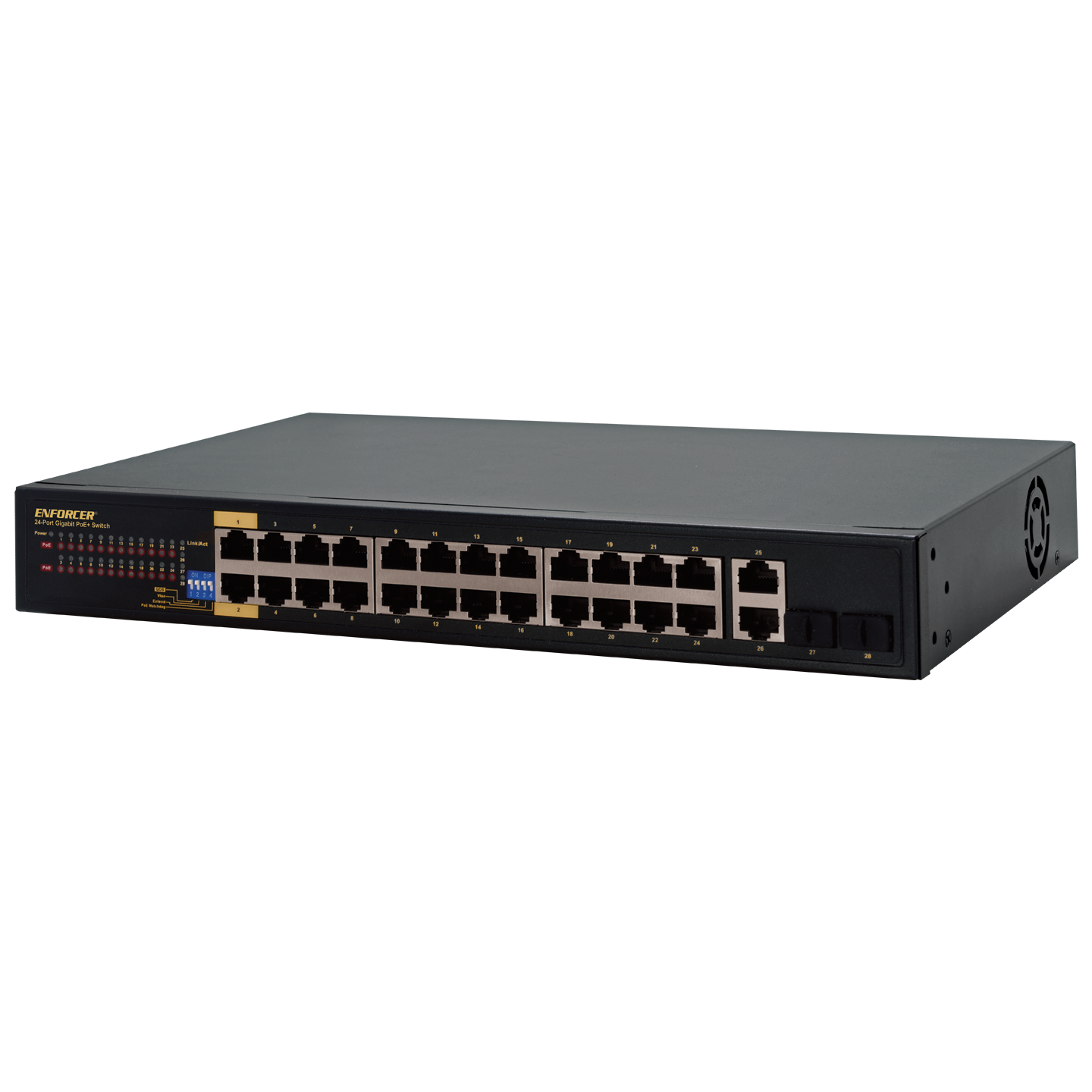

- Provides both Ethernet data and power to multiple PoE devices, including IP cameras, IP access, IP speakers/intercoms, VOIP, etc.
- Specially designed for video transmission with fast packet forwarding capability for clear images and smooth transmission
- Easy plug-and-play installation
- Supports up to 10/100/1000BASE-T
- PoE standard IEEE 802.3af/at
| Operating voltage | 100~240 VAC |
| Power consumption | <20W |
| Ports | 24 Downlink, 2 uplink, 2 SFP |
| Ethernet speed | 10/100/1000Mbps (uplink, 1000Mbps) |
| Ethernet standard | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z |
| Transmission distance | Normal: 328ft (100m)‡ Extend§: 820ft (250m) at 10Mbps |
| PoE capacity | 370W |
| Switching capacity | 56Gbps |
| Transfer rate | 10Mbps: 14,880pps 100Mbps: 148,800pps 1000Mbps: 1,488,000pps |
| MAC Address table | 8K |
| AI | QoS, VLAN, Extend, PoE Watchdog |
| LED Indicators | Connection/transmission and PoE for each port, power |
| Operating humidity | 0~90% non-condensing |
| Operating temperature | 14°~122° F (-10°~40° C) |
| Dimensions | 12-5/8″x1-3/4″x8-1/8″ (320x44x207 mm) |
| Weight | 4-lb 8-oz (2.06kg) |
†Power adapter included ‡ Distance depends on Ethernet cables used. Cat5e/6 recommended
§NS-104UT-MAQ with DIP switch ON. NS-5xx-GA with Extend ON.
