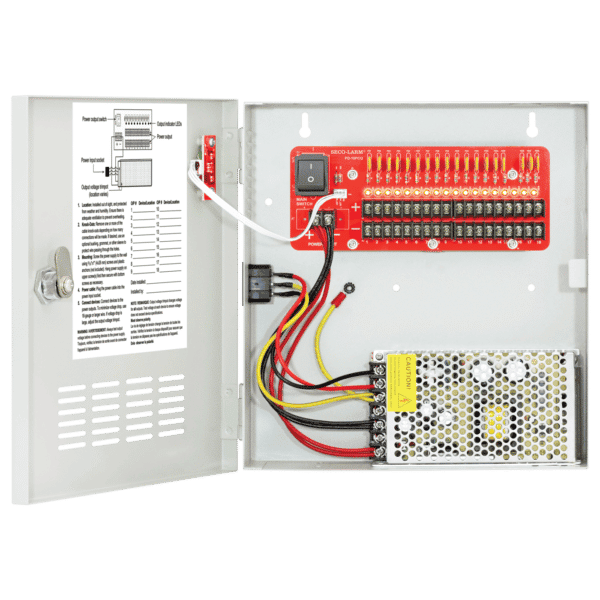

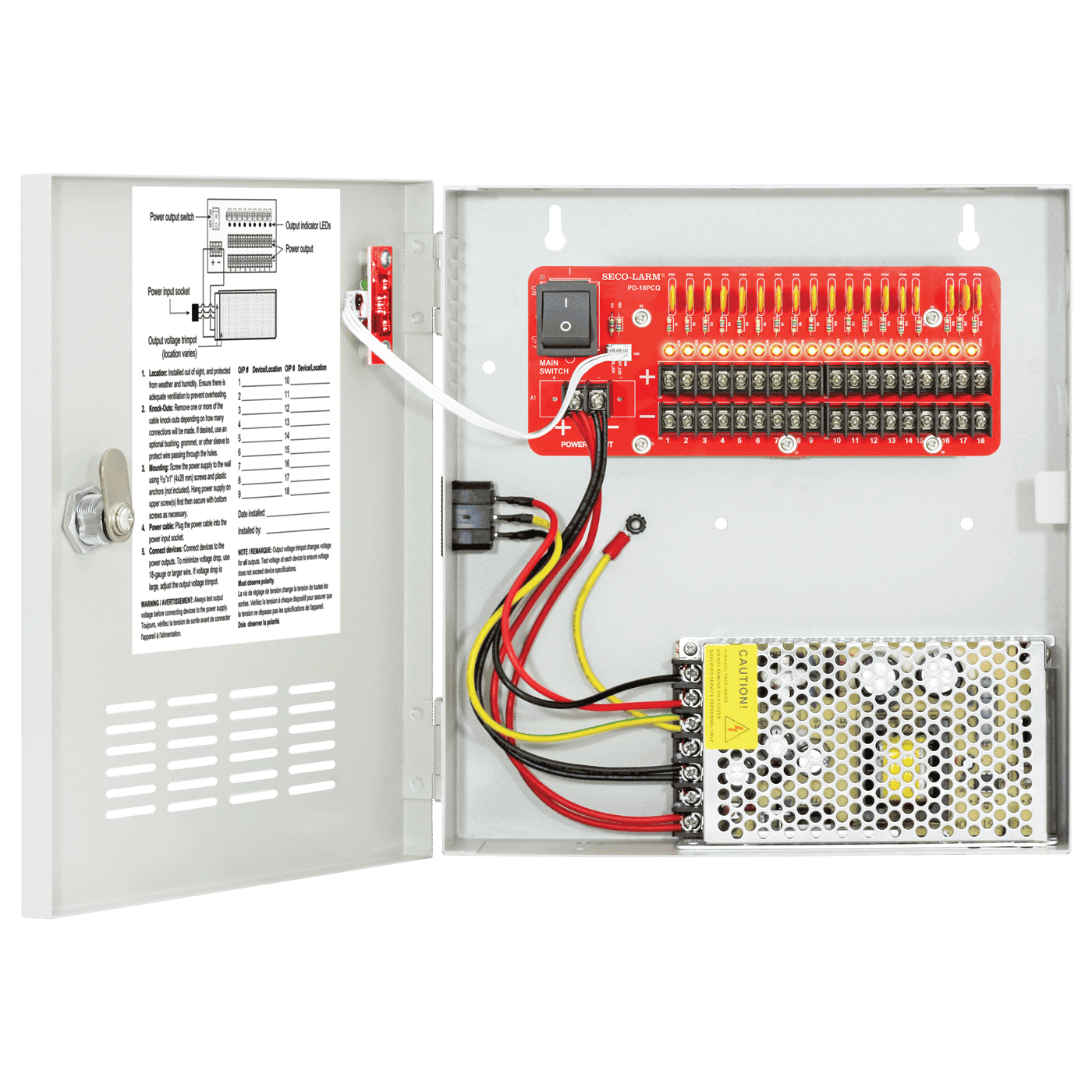

12VDC Switching CCTV Power Supply, 18 Outputs, 10A total

The ENFORCER 12VDC Switching CCTV Power Supply is an efficient solution for powering CCTV installations. Each unit distributes power to multiple CCTV devices and provides short circuit and overheat protection.

  • product_icon
  • product_icon
  • product_icon
  • 100~220 VAC Input*
  • Adjustable output to reduce voltage drop
  • Each output individually protected by a PTC fuse
  • PTC fuses rated [email protected]~13.8 VDC
  • Power output ON/OFF switch
  • Individual output status LEDs
  • Convenient AC input and DC output status LEDs on cover
  • Heavy-duty steel case with cover
  • Built-in short circuit and overheat protection
  • 3.3ft (1m) Power cord included

*UL listed for 90~120 VAC

Outputs 18
Total supply current 10A
Max. current per output 1.1A
Output fuse PTC
Output voltage 11.0~13.8 VDC (adjustable by trimpot, ±10% (47~63 Hz)
Input voltage 100~220 VAC ±10% (47~63 Hz)
LED indicators Cover -Green: AC Input, Red: DC Output PDM -Red: DC Output
Operating humidity 90% (non-condensing)
Operating temperature 32°~104° F (0°~40° C)
Dimensions 10″x10-5/16″x3-1/8″ (254x262x79 mm)
Weight 5-lb 2-oz (2.31kg)

Product Information Sheet (PI)
