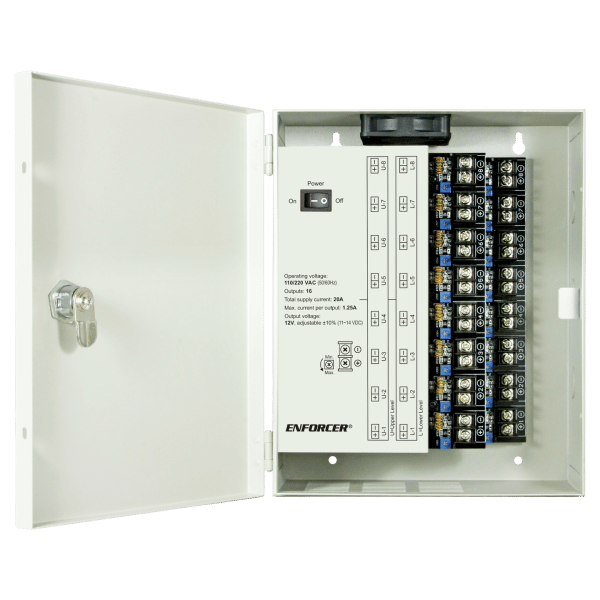

PC-L1620-PQ

Low-Noise CCTV Power Supply

The ENFORCER Low-Noise Switching CCTV Power Supply is designed for applications where noise is a problem due to inadequate wiring. Each output’s voltage is individually adjustable to compensate for voltage drop. Each output isindependently isolated and grounded with integrated noise filtering to help reduce noise interference with 4K (8MP) HD cameras, non-PoE IP cameras, and analog security cameras.

  • product_icon
  • product_icon
  • product_icon
  • Each output’s voltage individually adjustable to compensate for voltage drop
  • Low-noise design for all CCTV applications where filtered power is needed, such as 4K (8MP) HD CCTV cameras, non-PoE IP cameras, and analog cameras
  • 110/220 VAC input with 6kV surge protection
  • Outputs independently grounded with integrated noise filter for better noise reduction
  • Outputs individually isolated and individually fused (2A PTC)
  • Individual output status LEDs
  • Heavy-duty steel case with cover and cam lock
  • Built-in short circuit and overheat protection
Operating voltage110/220 VAC (50/60 Hz)
Outputs16
Total supply current20A
Max. current per output1.25A
Output fuse2A PTC (Per-channel)
Output voltage12VDC ±5%
Efficiency80%
LED indicatorsIndividual, per output, red indicates powered
Operating humidity95% (non-condensing)
Operating temperature32°~104° F (0°~40° C)
Dimensions8″x9-3/16″x3-15/16″ (204x250x100 mm)
Weight6-lb (2.71kg)
Product Information Sheet (PI) (pdf, 232KB)
Manual (pdf, 339KB)
