Wall-Mount Help Button

RM-R100-TBQ

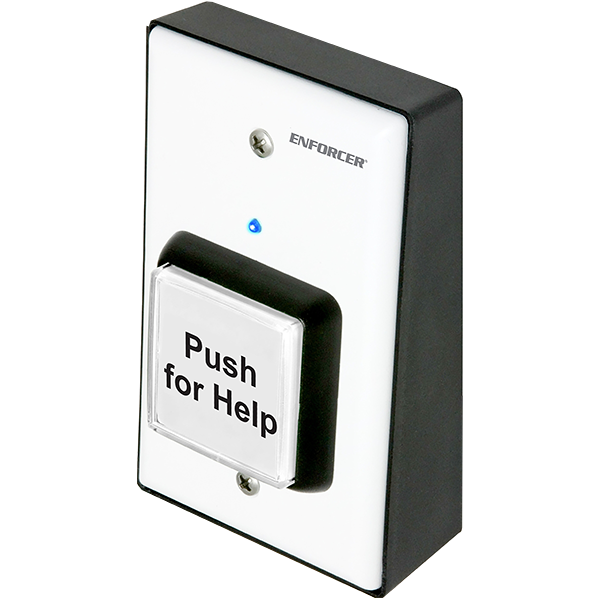

Wall-Mount Help Button

The ENFORCER Wireless Help Button can be used to wirelessly expand the 1-Room Occupancy Monitor Kit (RM-R100-KB1Q) with a service/help button. The button is perfect for placing on a desktop, mounting on walls, or any other location where it is difficult to run wires. The Wireless Help Button combines the very best of SECO-LARM, flexible wireless solutions and reliable access control.

  • product_icon
  • product_icon
  • Built-in RF transmitter:
    – Powered by 9VDC (battery included)
    – Range up to 100ft (30m)*, 433.92MHz
    – Over 68 billion (6.8×1010) possible codes
    – LED to indicate transmission and low battery
  • Desktop or wall mounted
  • ABS Plastic single-gang plate with surface mount back box
  • Clear 2″ square button
  • “Push for Help” message plate included
  • Requires RM-R100-RB1Q, or SK-910 (433.92MHz) series receiver

Dimensions Desktop:4-5/8″x2-7/8″x1-7/8″ (117x73x48 mm), Wall Mount:4-5/8″x2-7/8″x2″ (117x73x50 mm)
Weight 6-oz (178g)
Operating Frequency 433.92MHz
Operating voltage 9VDC
Battery Life Up to four (4) years (60 uses per day)
Maximum Range 100′ (30m)*
Brochure (pdf, 4533KB)
Download
MANUAL (pdf, 523KB)
Download

LED does not light
  • Check battery connection
  • Replace 9V battery
LED lights blue, but does not

activate lock
  • Ensure Wireless Help Button is not housed in a metal box
  • Test Wireless Help Button closer to the receiver
  • Clear codes from receiver and re-learn wireless transmitter code
