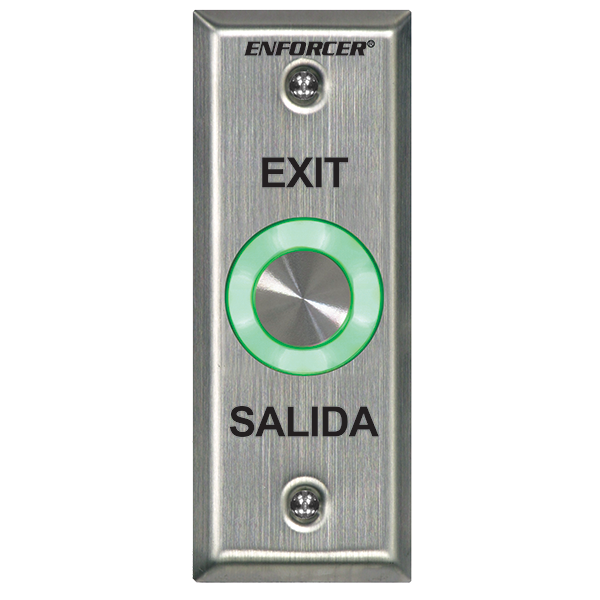

SD-6176-SS1Q

Piezoelectric Illuminated RTE Wall Plates with Timer, Slimline

Programmable Red/Green Round Button, with “EXIT” & “SALIDA”

  • product_icon
  • Piezoelectric request-to-exit plates for indoor or outdoor use, weatherproof (IP65)
  • No moving parts for heavy duty use
  • LED ring around button changes from green to red or red to green when the button is pressed
  • Timed or toggle output
  • Relay rated [email protected] with two individually programmable outputs (NO/NC)
Type RTE Plates with piezoelectric pushbuttons
Operating Voltage 12~24 VDC
Current Draw [email protected]
Contact Rating [email protected]
Ring LED Default- Standby Red
Ring LED Default- Active Green
Output Time 1~30 s, Toggle
IP Rating Weatherproof IP65
Operating Temperature 32º~158º F (0º~70º C)
Material Stainless steel
Weight 2.6-oz (74g)

Product Information Sheet (PI)

Download File

Manual

Download File
