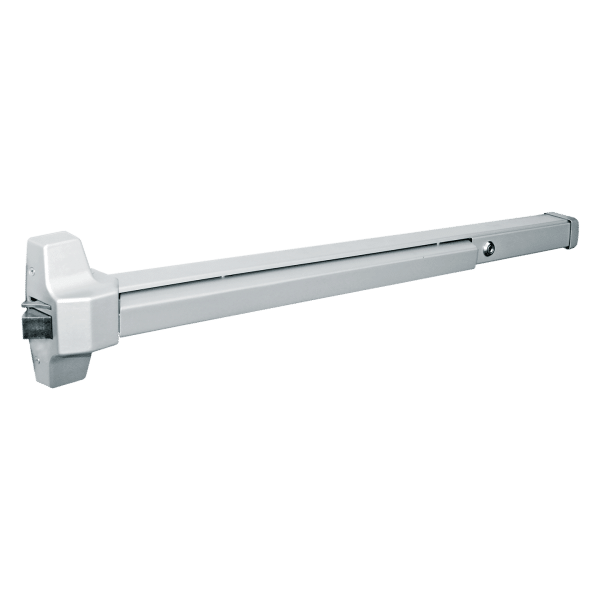

SD-962AR-36A

Rim-Type Exit Device for Exit Doors, Push-to-Exit Bar

The ENFORCER SD-962AR-36A Rim-Type Exit Device, when mounted on the inside of a door to block entry to a protected premises, securely locks the door from outside access while  allowing users inside the protected premises to exit. The stainless steel enclosure protects the exit device from abuse, yet easily unlocks the door from the inside by users who require exit. It can be connected to an entry-type lever trim or to any physical locking device on the outside of the door in order to allow entry to authorized personnel.

  • product_icon
  • Pushbar is UL Listed in the U.S.
  • Allows exit from inside while locked from outside
  • Reversible, non-handed design
  • For metal or wood doors up to 13/4” (44mm) thick
  • Stainless-steel 3/4″ (19mm) throw latch bolt
  • Separate deadlocking latch — Prevents the use of credit cards or similar means to open the latch bolt
  • Allen-type 1/4-turn dogging lock — Allows the exit bar to be unlocked for extended periods of time
  • Includes all needed hardware for typical installations
  • Works with standard external door handle/lock devices such as the SD-962HL-4A (not included)
  • Fits doors from 30″ (76cm) to 48″ (122cm) wide
  • Heavy-duty steel construction
  • Stainless steel spring
Door Type 1-3/4″ (44mm) thick, wood or metal
Hand Type Non-handed
Latch Bolt Stainless steel, 3/4″ (19mm) throw
Dead Latch Stainless steel, 5/8″ (16mm)
Strike For 5/8″(16mm) stop plus shim for 1/2″ (12.5mm) stop
Spring Stainless steel
Chassis Steel
Cover High-density, rust-resistant alloy
Rail Assembly Steel
End Cap Steel
Dogging Allen-type dogging standard
