SD-962BR-36A

Rim-Type Exit Device for Exit Doors, Push-to-Exit Bar

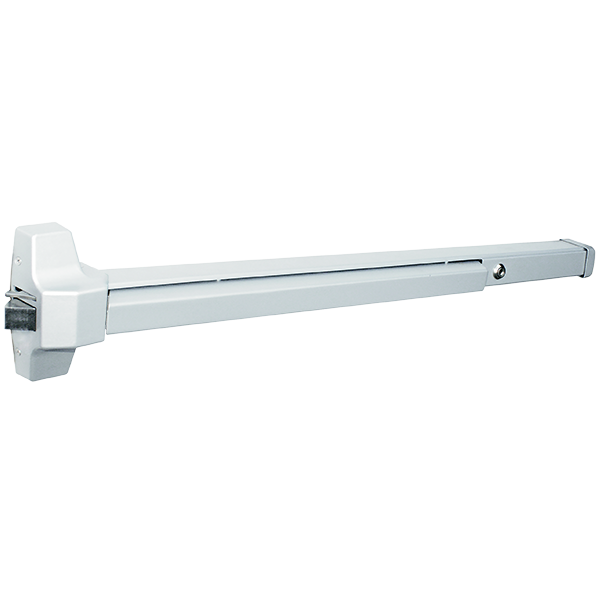

The ENFORCER Grade 1 Rim-Type Exit Device, when mounted on the inside of a door to block entry to a protected premises, securely locks the door from outside access while allowing users inside the protected premises to exit.

  • product_icon
  • Heavy-duty ANSI Grade 1 steel construction
  • Allows exit from inside while locked from outside
  • Reversible non-handed design
  • For metal or wood doors up to 1-3/4″ (44mm) thick
  • Separate deadlocking latch prevents the use of credit cards or similar means to open the latch bolt
  • Fits doors from 33″ to 48″ (84~122 cm) wide
  • Hex-type 1/4-turn dogging lock allows the exit device to be unlocked for extended period of time
  • Includes all needed hardware for typical installation
  • Works with standard external door handle/lock devices (not included)
  • BHMA 156.3
Door Type Up to 1-3/4″ (44mm) thick, wood or metal
Hand Type Non-handed
Latch Bolt Stainless-steel, 3/4″ (19mm) throw
Dead Latch Stainless-steel 5/8″ (16mm)
Strike For 5/8″(16mm) stop plus shim for 1/2″ (12.5mm) stop
Spring Stainless steel
Chassis steel
Cover High-density, rust-resistant alloy
Rail Assembly Steel
End Cap Steel
Dogging Hex-type dogging standard
