CS-PD115-PAQ

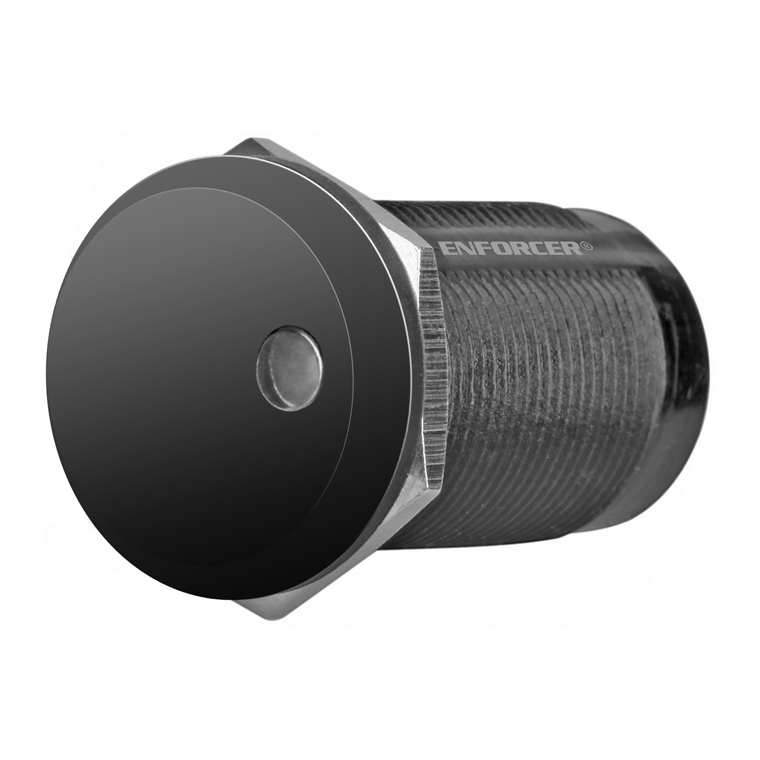

Infrared Proximity Sensor – 19mm, Polycarbonate

The ENFORCER IR Proximity Sensor is a compact sensor that can be programmed to trigger an alarm when an object (such as a valuable possession) is removed from the sensing area or unlock an electronic door lock when an object (such as a hand) is passed in front of the sensor. This flexibility makes the sensor ideal for both anti-theft and access control applications.

  • product_icon
  • product_icon
  • product_icon

  • No-touch operation reduces the risk of spread of germs, viruses, etc., through cross-contamination
  • Adjustable sensor range up to 6″ (15cm) 1A relay, adjustable trigger duration 0.5~20 seconds or toggle
  • Selectable LED colors (turns from red to green or green to red) to show if the sensor is activated
  • Weatherproof (IP65*) for outdoor use
  • OEM / Private label available

​* Weatherproof when properly installed (see manual)

Sensing Range2″~6″ (5~15 cm)

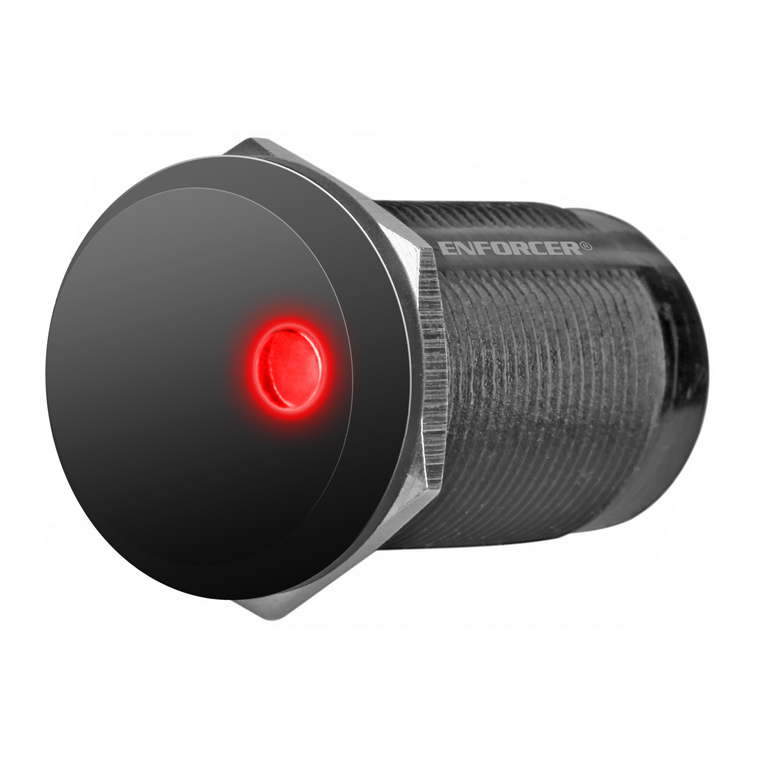

LEDsRed- Standby, Green- Triggered
Alarm Output1A@30VDC
Output Time1~20 s or Toggle
Operating Voltage12~24 VDC
Current Draw30mA@12VDC
IP RatingWeatherproof IP65
Operating Life100,000 Hours or 1,000,000 uses
Operating Temperature-4°~131° F (-20°~55° C)
Weight0.35-oz (10g)

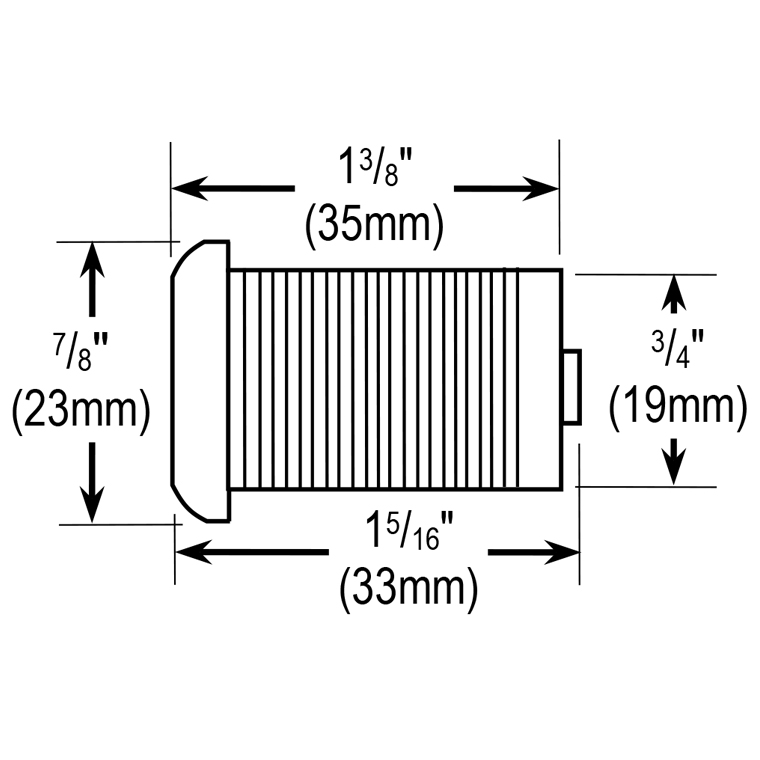

Dimensionsø3/4″ (ø19mm)
Product Information Sheet (PI) (pdf, 219KB)
Download
Manual (pdf, 290KB)
Download
Diagram (jpg, 10KB)
Download

FAQs

b

Additional Information.

Click here for more information.

b

The indicator light is continuously green.

  1. Check that there are no objects in front of the sensor.
  2. Adjust the sensor’s range to be shorter (see IR Range and Trigger Time Settings on page 3 in the manual).
  3. Check that the power supply’s voltage is 12~24 VDC.
  4. Adjust the trigger time setting – a long delay or enabling toggle mode could affect the sensor’s operation.
b

The indicator light will not turn green.

  1. Adjust the sensor’s range to be longer (see IR Range and Trigger Time Settings on page 3 in the manual).
  2. Check that the power supply’s voltage is 12~24 VDC.
