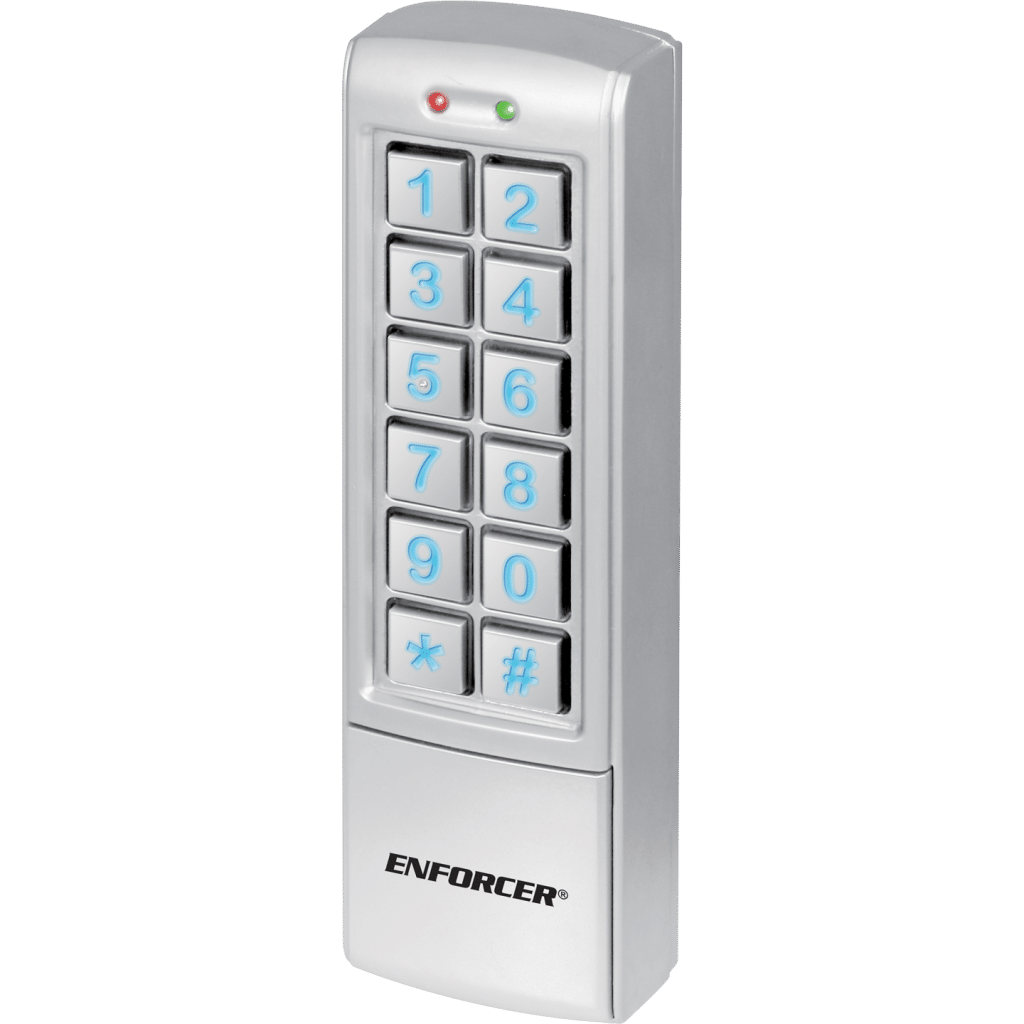

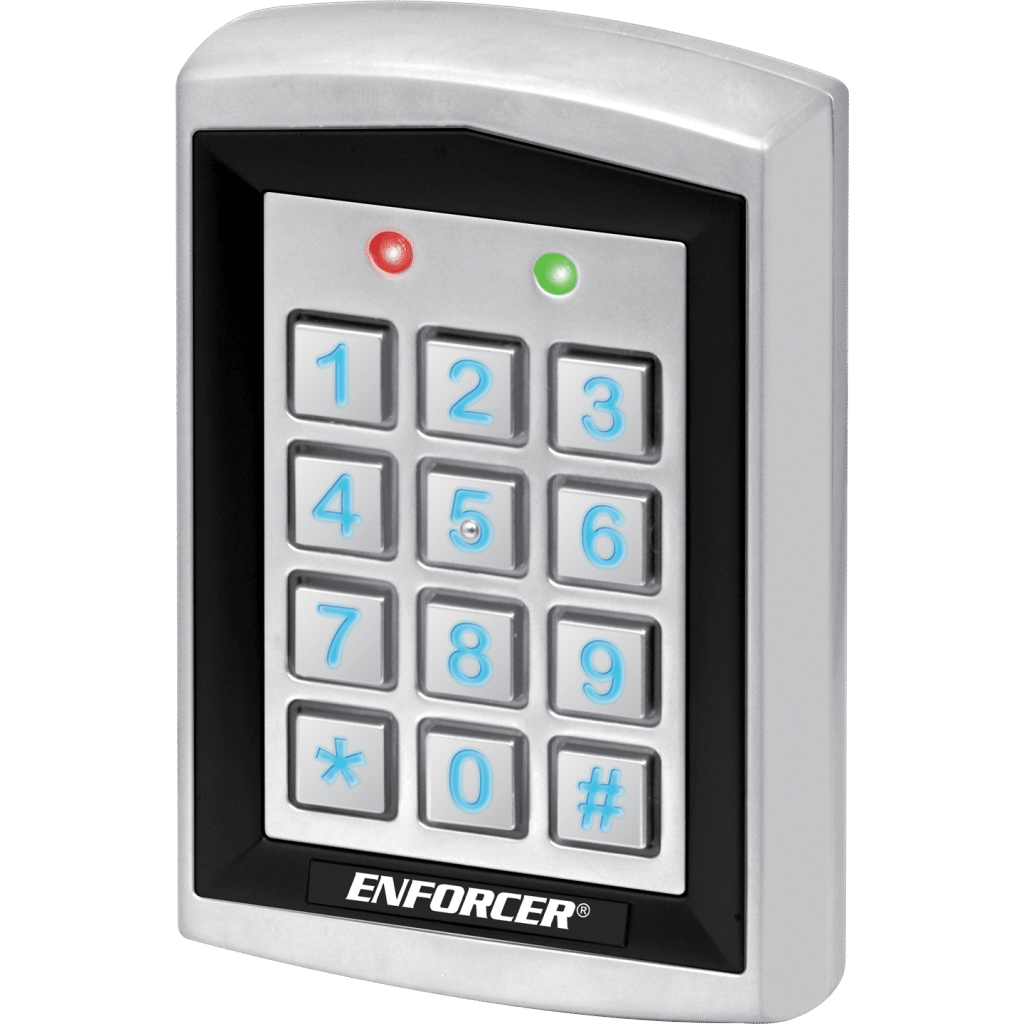

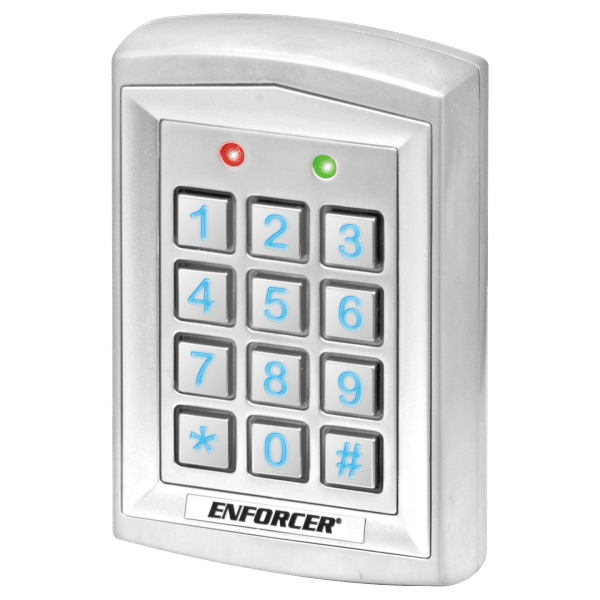

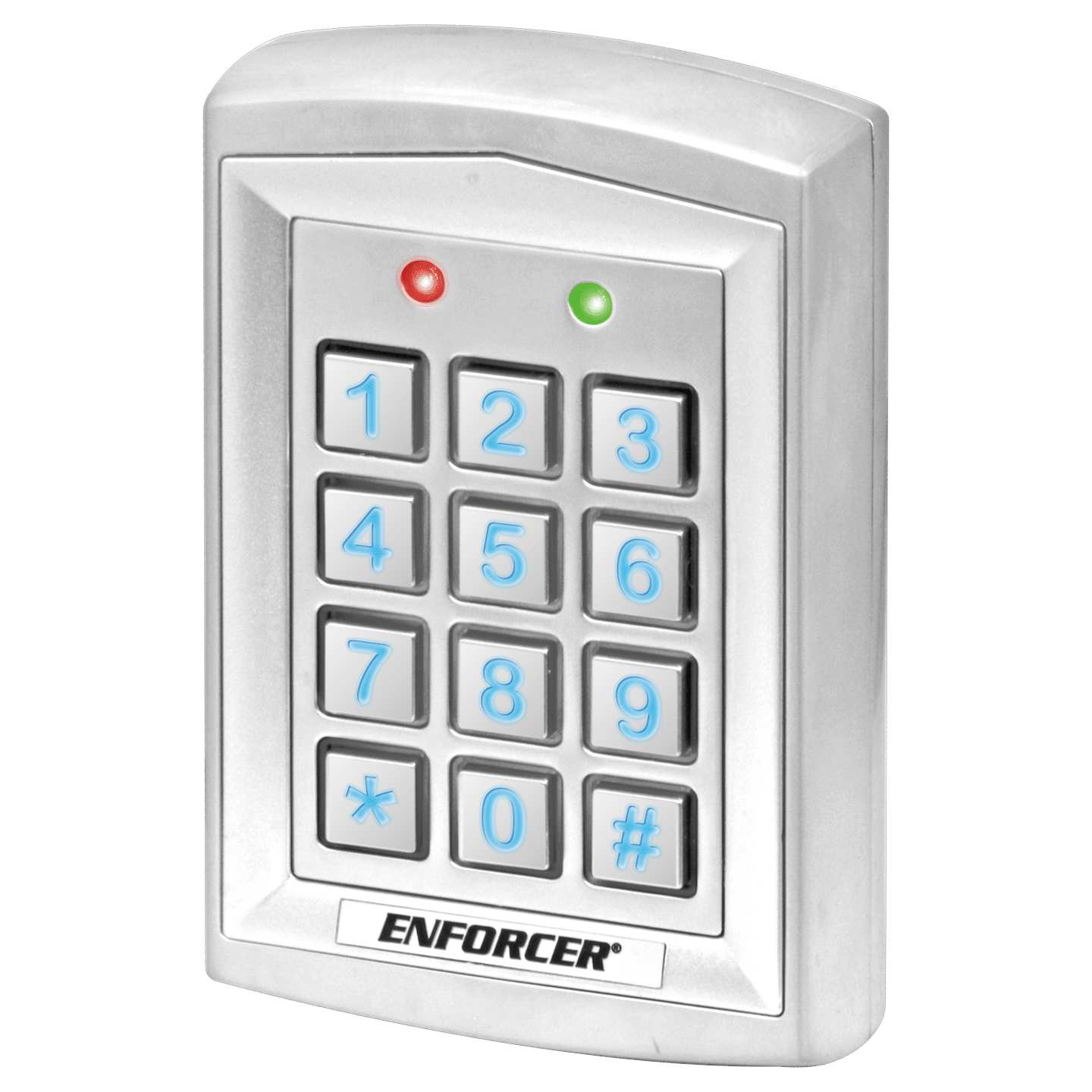

Sealed Housing Weatherproof Stand-Alone Digital Access Keypad

  • product_icon
  • product_icon
  • product_icon
12~24 VAC/VDC operation
1,010 Users (Output #1: 1,000 users, Output #2: 10 users)
2 Form C relays, each rated 1 Amp @ 30VDC
Each relay has programmable output time from 1~99 seconds or toggle
Output #2 can be programmed for use with a doorbell
2 Egress inputs and 1 door sensor input
Backlit keys for easy nighttime use
Two multi-colored status LEDs
Able to mount to a single-gang back box
All features are programmed directly from the keypad – no need for an external programmer
EEPROM memory protects programmed information in case of power loss
Optical tamper for added security
Circuitry is potted with epoxy for outdoor use
IP65 Weatherproof rating, rugged aluminum construction
Type Sealed Housing Weatherproof Outdoor Digital Access Keypad
Number of User Codes Up to 1,010
Operating Voltage 12~24 VAC/VDC
Current Draw – Standby 64mA@12VDC
Current Draw- Active 92~120mA@12VDC
Relay Outputs (2) 1A@30VDC, Form C, NO/COM/NC
IP Rating Weatherproof IP65
Egress Inputs 2, N.O. Ground
Door Sensor Input N.C. Ground
Tamper Sensor Optical
Keypad LED Life 60,000 hours (over 6.8 years)
Operating Temperature -4°~122° F (-20°~50° C)
Dimensions 4-3/4″x3″x7/8″ (120x76x22 mm)
Weight 1-lb 2-oz (510g)

Product Information Sheet (PI)



User Control Chart
