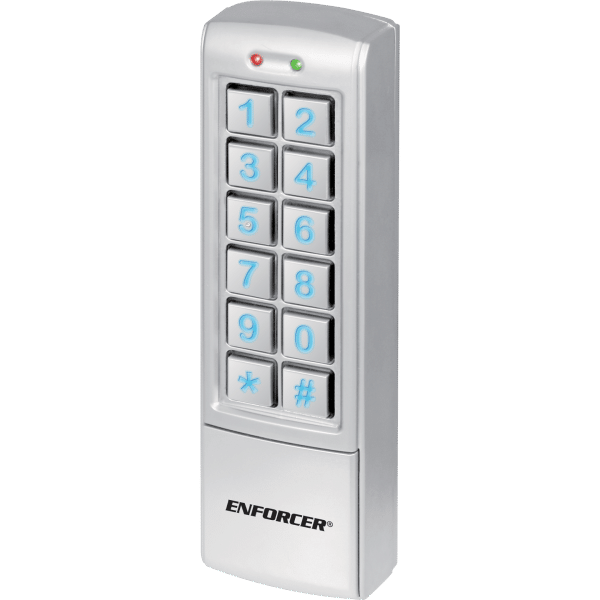

SK-2323-SDQ

Digital Access Keypads, Mullion-Style, Weatherproof – 1010 Users, 2 1-Amp Relays

  • product_icon
  • product_icon
  • product_icon
12~24 VAC/VDC operation
1,010 Users (Output #1: 1,000 users, Output #2: 10 users)
2 Form C relays, each rated 1 Amp @ 30VDC
Each relay has programmable output time from 1~99 seconds or toggle
Output #2 can be programmed for use with a doorbell
2 Egress inputs and 1 door sensor input
Backlit keys for easy nighttime use
2 Multi-colored status LEDs
All features are programmed directly from the keypad – no need for an external programmer
EEPROM memory protects programmed information in case of power loss
Optical tamper sensor for added security
Circuitry is potted with epoxy for outdoor use
IP65 Weatherproof rating, rugged aluminum construction
TypeMullion-Style Weatherproof Digital Access Keypads
Number of User CodesUp to 1,010
Operating Voltage12~24 VAC/VDC
Current Draw – Standby64mA@12VDC
Current Draw- Active1 Relay active: 92mA@12VDC 2 Relays active: 120mA@12VDC
Relay Outputs (2)1A@30VDC, Form C, NO/COM/NC
IP RatingWeatherproof IP65
Egress Inputs2, N.O. Ground
Door Sensor InputN.C. Ground
Tamper SensorOptical
Keypad LED Life60,000 hours (over 6.8 years)
Operating Temperature-4°~122° F (-20°~50° C)
Dimensions6″ x 1-3/4″ x 15/16″ (152 x 44 x 24 mm)
Weight11-oz (312g)
Product Information Sheet (PI) (pdf, 263KB)
Manual (pdf, 416KB)
Mounting Template (pdf, 405KB)
