EV-N2506-2W4WMQ

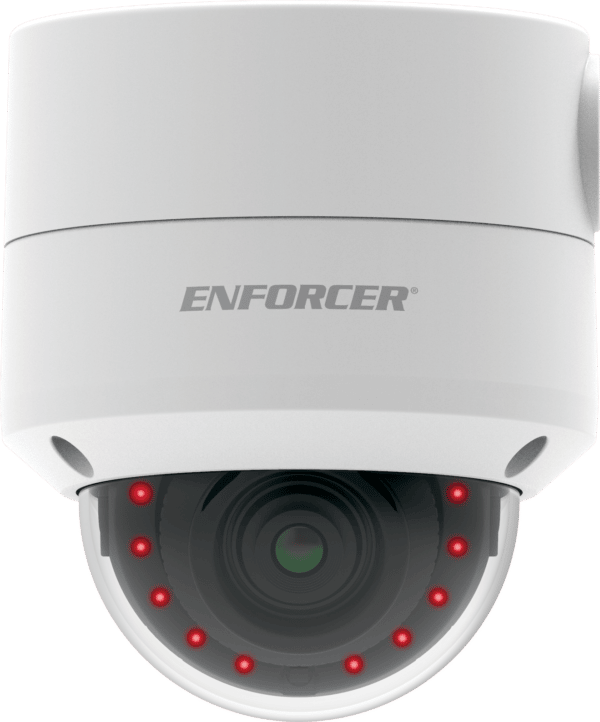

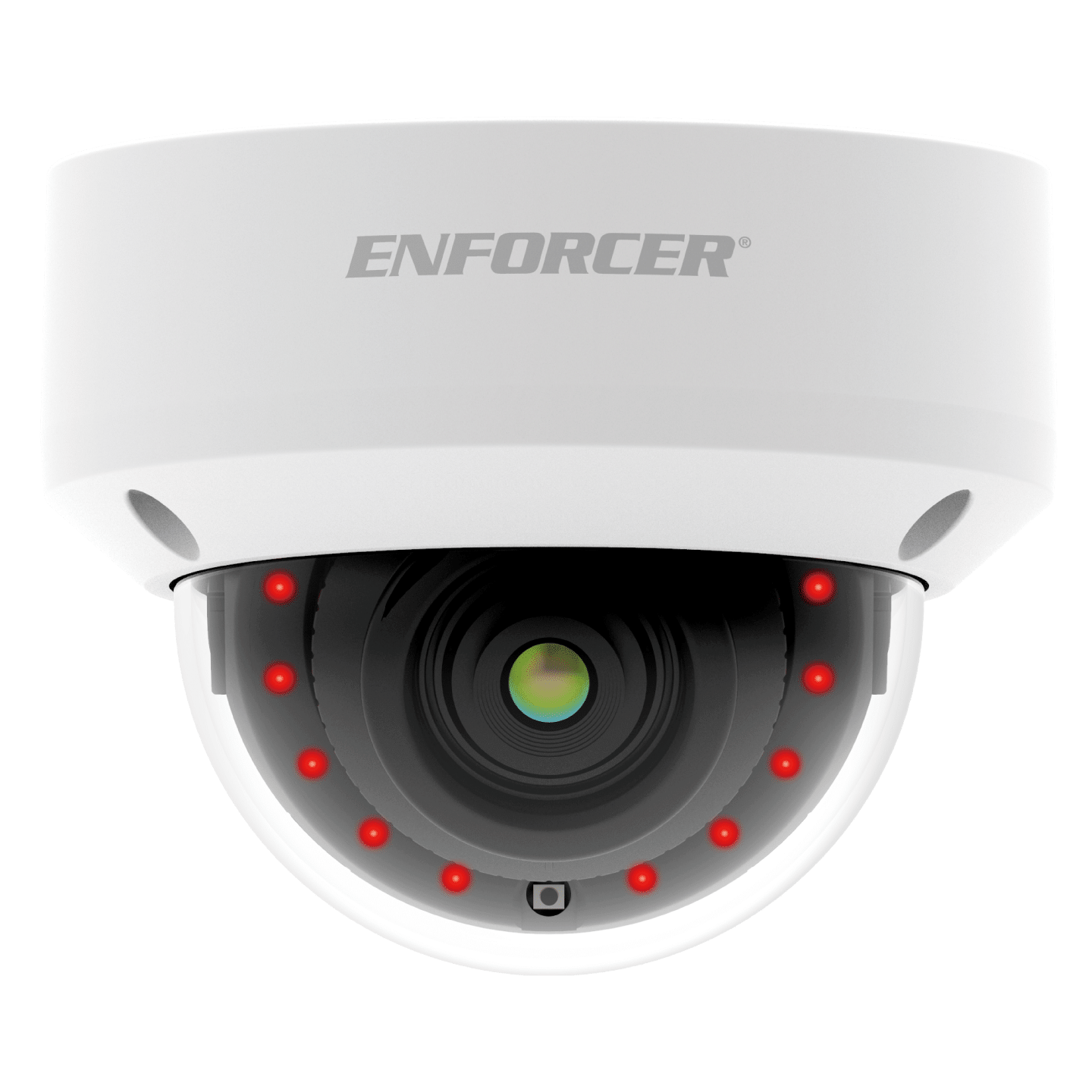

IP 5MP 2.8mm Mini Vandal Dome Camera

The ENFORCER Mini Vandal Dome Camera offers high-resolution video and advanced technology in a compact and accessible package. The camera features H.265 video compression, reducing bandwidth and storage requirements without giving up video quality. With True Wide Dynamic Range (WDR), Digital Noise Reduction (3DNR), and Day/Night (ICR) capabilities, the camera provides excellent picture quality.

Latest Firmware version: V31.35.8.2.4.1_240910_1
Click here to download the latest firmware

  • product_icon
  • product_icon
  • product_icon
  • product_icon
  • product_icon
  • 1/2.7″ 5MP SmartSens CMOS Sensor
  • 30FPS@5MP, 1620p (2880×1620)
  • 2.8mm Lens
  • Triple Stream Encoding
  • H.265, H.264 and MJPEG
  • True Wide Dynamic Range (WDR)
  • Digital Noise Reduction (3DNR)
  • True Day & Night Function ICR Module
  • ICR Sensitivity adjustment
  • Corridor mode
  • Operating temperature: -40°~131° F (-40°~55° C)
  • IP66 Weatherproof
  • IR Range 66′ (20m)
  • Smart IRs adjust IR strength to conditions
  • MicroSD slot (512GB, max.)
  • PoE (IEEE 802.3af), 12VDC
  • ONVIF® profiles G, M, S, and T conformant
  • Junction box is not included with the product

AI Functions

  • License plate detection
  • License plate recognition
  • Face detection
  • Human & vehicle detection
  • Perimeter intrusion detection
  • Line crossing detection
  • Stationary object detection
  • Cross counting
  • Heat map
  • Crowd density detection
  • Queue length detection
SL Vision
The SL Vision app provides you with a seamless and easy-to-use solution for all your video surveillance needs. With the SL Vision app and your ENFORCER® NVR, you can effortlessly connect to your NVR through the app, view live feeds from your cameras, access recorded footage, and save video clips or snapshots of what you have seen with just a few taps, all at your own convenience.

Experience the convenience and security of managing your NVR from your smartphone or tablet.

Available for iOS (11.0 and above) and Android (5.0 and above).

SL VMS
One portal to monitor and manage your CCTV System.
Click here to download SL VMS for Windows

Camera

Image sensor 1/2.7″ 5MP SmartSens CMOS sensor
Effective pixels 2880(H)x1620(V)
Scanning system Progressive scan
Electronic shutter speed Auto, manual; 1/5 s to 1/20,000 s
Minimum illumination Color: 0.1Lux at F1.2 (AGC on) 0Lux with IR on
IR Distance Distance up to 66′ (20m)
IR On/Off control Auto, manual
IR LEDs 10x850nm LEDs

Lens

Lens type Fixed
Focal length 2.8mm
Maximum aperture F1.6
Field of view Horizontal: 110°, Vertical: 58°, Diagonal:133°
Video
Compression H.265, H.264
Streaming capability Triple (3) streams
Resolution 2880×1620, 2560×1440, 2304×1296, 1080p (1920×1080), 720p (1280×720)
Bit rate control CBR/VBR
Bit rate Main stream: 256 to 8192 Kbps, Sub stream: 128 to 4096 Kbps,
Mobile stream: 8 to 1536 Kbps
Backlight Disable (default) BLC, HLC, True WDR
White balance Auto
Gain control Auto
Noise reduction 3DNR
Smart IR Support
Image rotation 0″, 180″
Mirror Disable, vertical, horizontal, all
Privacy masking Off, on (4 areas, rectangle)
Region of interest Support

Network

Ethernet RJ45
Protocol TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
Interoperability ONVIF® profiles G, S, and T conformant
Auto register Support
Streaming method Multicast
Max. user access 7
Web viewer IE, Chrome, Firefox, Edge
On-board storage Built in memory slot Supports up to 512GB MicroSD/SDHC/SDXC

Certifications

Certfications CE, FCC, RoHS
ONVIF® Profiles G, S, and T conformant
NDAA Compliant
Electrical
Power supply 12VDC, or PoE (IEEE 802.3af Class 0)
Power consumption < 6W
Environmental
Operating conditions -40°~131° F (-40°~55° C) Less Than 95% RH
Storage conditions -40°~140° F (-40°~60° C)
IP Rating IP66 Weatherproof
Construction
Casting Metal
Dimensions ø4-1/2″x3-5/8″ (ø115×92 mm)
Weight 1-lb 2.3-oz (520g)
Product Information Sheet (PI) (pdf, 343KB)
Manual (pdf, 146KB)

FAQs

Check that the correct power supply is in use.

Change the position of the camera.

Adjust the monitor’s contrast knob. Change the position of the camera.

Clean the lens using a soft, clean cloth. Check that the light source is adequate.

Change the position of the camera.

  1. Check that the camera is powered up.
  2. Check that the power supply’s polarity is correct. Check that the monitor is powered up.
  3. Check that the video cable connecting the camera to the monitor is connected properly.
